SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 690 (Intel Xeon X5365, 3.00 GHz)

CPU2006 license: 55 Test date: Jul-2007
Test sponsor: Dell Inc. Hardware Availability: Aug-2007
Tested by: Dell Inc. Software Availability: Jun-2007

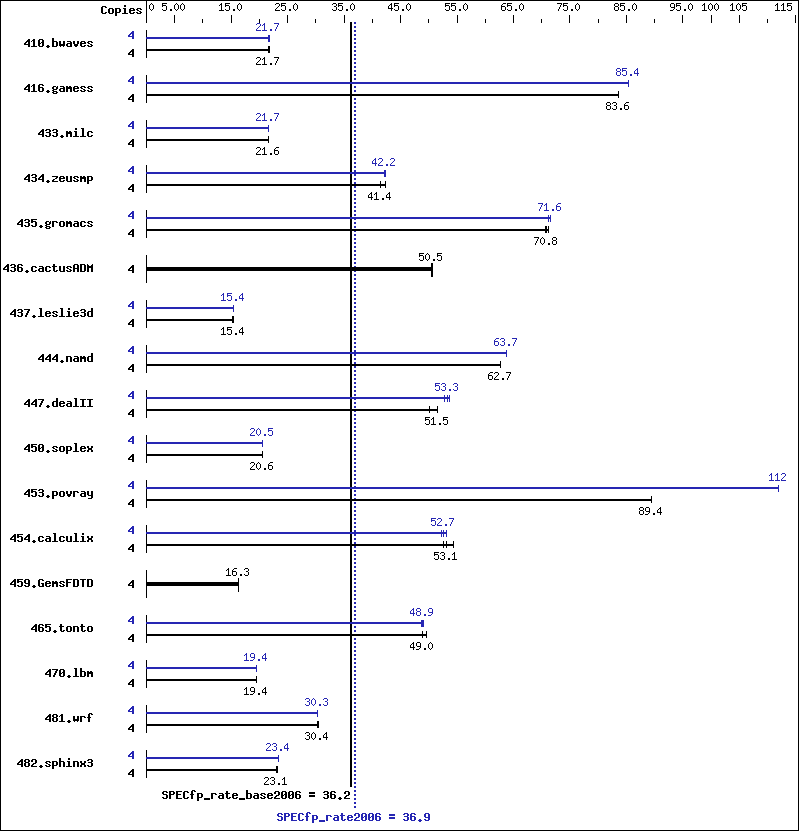

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5365
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 1 x 73GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2505 21.7 2509 21.7 2506 21.7 4 2504 21.7 2509 21.7 2507 21.7
416.gamess 4 937 83.6 937 83.6 937 83.6 4 917 85.4 917 85.4 917 85.4
433.milc 4 1697 21.6 1697 21.6 1696 21.6 4 1693 21.7 1695 21.7 1696 21.7
434.zeusmp 4 879 41.4 878 41.4 861 42.3 4 865 42.1 860 42.3 862 42.2
435.gromacs 4 403 70.8 401 71.2 404 70.7 4 401 71.3 399 71.6 399 71.6
436.cactusADM 4 946 50.5 945 50.6 947 50.5 4 946 50.5 945 50.6 947 50.5
437.leslie3d 4 2437 15.4 2462 15.3 2438 15.4 4 2442 15.4 2441 15.4 2437 15.4
444.namd 4 512 62.7 512 62.7 512 62.7 4 504 63.7 504 63.7 504 63.7
447.dealII 4 889 51.5 889 51.5 913 50.1 4 868 52.7 852 53.7 858 53.3
450.soplex 4 1618 20.6 1617 20.6 1617 20.6 4 1629 20.5 1629 20.5 1628 20.5
453.povray 4 238 89.4 238 89.4 238 89.4 4 190 112   190 112   190 112
454.calculix 4 621 53.1 608 54.3 628 52.5 4 626 52.7 620 53.2 632 52.2
459.GemsFDTD 4 2599 16.3 2598 16.3 2603 16.3 4 2599 16.3 2598 16.3 2603 16.3
465.tonto 4 804 49.0 795 49.5 804 49.0 4 804 48.9 807 48.8 803 49.0
470.lbm 4 2826 19.4 2826 19.4 2826 19.4 4 2826 19.4 2827 19.4 2827 19.4
481.wrf 4 1471 30.4 1472 30.4 1471 30.4 4 1473 30.3 1473 30.3 1472 30.4
482.sphinx3 4 3376 23.1 3372 23.1 3374 23.1 4 3326 23.4 3324 23.5 3326 23.4

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Snoop Filter                 : OFF
   Adjacent Cache Line Prefetch : OFF
   Hardware Prefetcher          : OFF

   Snoop Filter
     Preserves cache coherency while minimizing snoops
     to remote nodes.

   Adjacent Cache Line Prefetch
     Prefetch data in order to shorten execution cycles
     and maximize data processing efficiency.

   Optimization for high-frequency FSB applicatons: ON

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
470.lbm:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
434.zeusmp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
437.leslie3d:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.xml.
