| CPU2006 license: | 55 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
| Tested by: | Dell Inc. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1066 MHz Bus Speed |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 x 1 GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | 146 GB SAS 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library Version 8.0 |

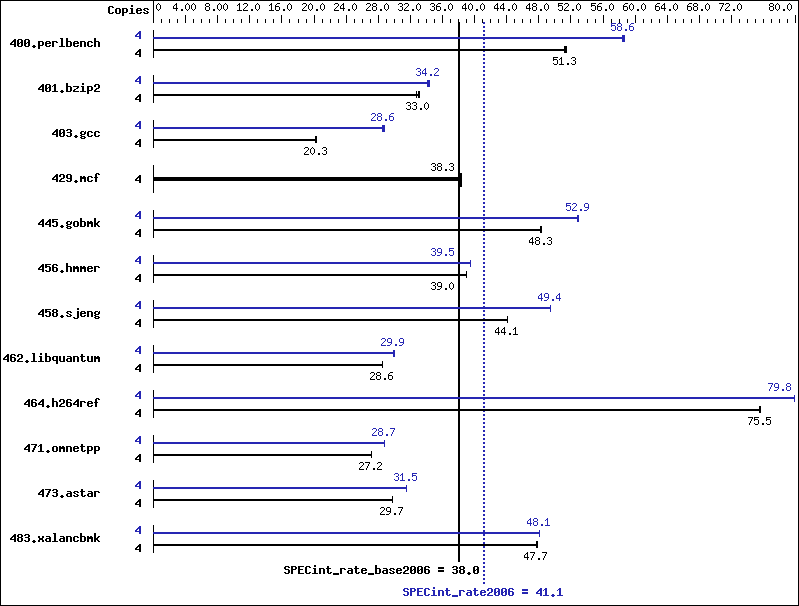

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 760 | 51.5 | 763 | 51.2 | 762 | 51.3 | 4 | 666 | 58.7 | 669 | 58.4 | 667 | 58.6 |
| 401.bzip2 | 4 | 1169 | 33.0 | 1164 | 33.2 | 1177 | 32.8 | 4 | 1128 | 34.2 | 1133 | 34.1 | 1124 | 34.3 |
| 403.gcc | 4 | 1592 | 20.2 | 1589 | 20.3 | 1585 | 20.3 | 4 | 1128 | 28.5 | 1120 | 28.8 | 1126 | 28.6 |
| 429.mcf | 4 | 953 | 38.3 | 952 | 38.3 | 950 | 38.4 | 4 | 953 | 38.3 | 952 | 38.3 | 950 | 38.4 |
| 445.gobmk | 4 | 868 | 48.3 | 869 | 48.3 | 871 | 48.2 | 4 | 794 | 52.9 | 793 | 52.9 | 793 | 52.9 |
| 456.hmmer | 4 | 956 | 39.0 | 956 | 39.0 | 956 | 39.0 | 4 | 946 | 39.5 | 946 | 39.5 | 946 | 39.5 |
| 458.sjeng | 4 | 1097 | 44.1 | 1097 | 44.1 | 1097 | 44.1 | 4 | 979 | 49.4 | 979 | 49.4 | 979 | 49.4 |
| 462.libquantum | 4 | 2901 | 28.6 | 2904 | 28.5 | 2903 | 28.6 | 4 | 2764 | 30.0 | 2770 | 29.9 | 2770 | 29.9 |
| 464.h264ref | 4 | 1172 | 75.5 | 1172 | 75.5 | 1171 | 75.6 | 4 | 1109 | 79.8 | 1109 | 79.8 | 1109 | 79.8 |
| 471.omnetpp | 4 | 920 | 27.2 | 920 | 27.2 | 919 | 27.2 | 4 | 870 | 28.7 | 870 | 28.7 | 870 | 28.7 |
| 473.astar | 4 | 945 | 29.7 | 944 | 29.7 | 944 | 29.7 | 4 | 892 | 31.5 | 893 | 31.5 | 892 | 31.5 |
| 483.xalancbmk | 4 | 579 | 47.7 | 579 | 47.7 | 578 | 47.8 | 4 | 575 | 48.0 | 574 | 48.1 | 574 | 48.1 |
General Notes
"start /b /wait /affinity" used to bind processes to cores
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
