SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX200 S3, Intel Xeon processor E5345,
2.33 GHz

CPU2006 license: 22 Test date: Aug-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jan-2007
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

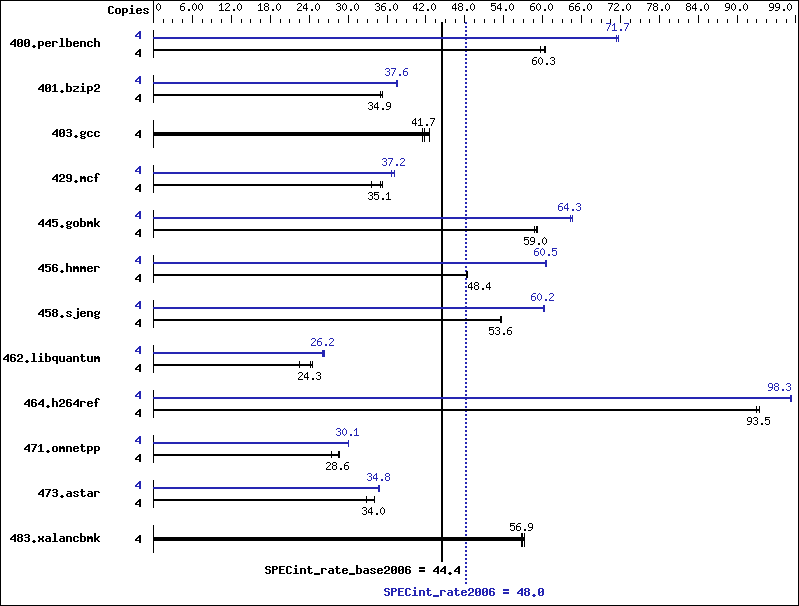

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5345
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: Seagate ST336754SS (SAS, 36GB, 15000rpm)
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 (x86_64), Kernel
2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070308, Package-ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 648 60.3 647 60.4 655 59.6 4 548 71.3 545 71.7 545 71.7
401.bzip2 4 1105 34.9 1106 34.9 1093 35.3 4 1029 37.5 1025 37.7 1026 37.6
403.gcc 4 776 41.5 772 41.7 757 42.5 4 776 41.5 772 41.7 757 42.5
429.mcf 4 1088 33.5 1040 35.1 1035 35.2 4 994 36.7 981 37.2 981 37.2
445.gobmk 4 714 58.8 712 59.0 708 59.2 4 652 64.3 653 64.3 650 64.5
456.hmmer 4 773 48.3 771 48.4 770 48.5 4 616 60.6 618 60.4 617 60.5
458.sjeng 4 905 53.5 903 53.6 902 53.7 4 803 60.2 804 60.2 805 60.1
462.libquantum 4 3678 22.5 3416 24.3 3373 24.6 4 3186 26.0 3164 26.2 3147 26.3
464.h264ref 4 953 92.9 947 93.5 947 93.5 4 900 98.4 901 98.3 901 98.3
471.omnetpp 4 911 27.5 875 28.6 872 28.7 4 832 30.0 831 30.1 831 30.1
473.astar 4 854 32.9 826 34.0 823 34.1 4 809 34.7 807 34.8 805 34.9
483.xalancbmk 4 487 56.7 485 56.9 482 57.2 4 487 56.7 485 56.9 482 57.2

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

 BIOS configuration:
 Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 400.perlbench
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:14:00 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 4 September 2007.
