| CPU2006 license: | 11 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2006 |
| Tested by: | IBM Corporation | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 8212 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2, 3, 4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16 x 2GB DDR2-5300 ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | QLogic PathScale Compiler Suite, Release 3.0 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

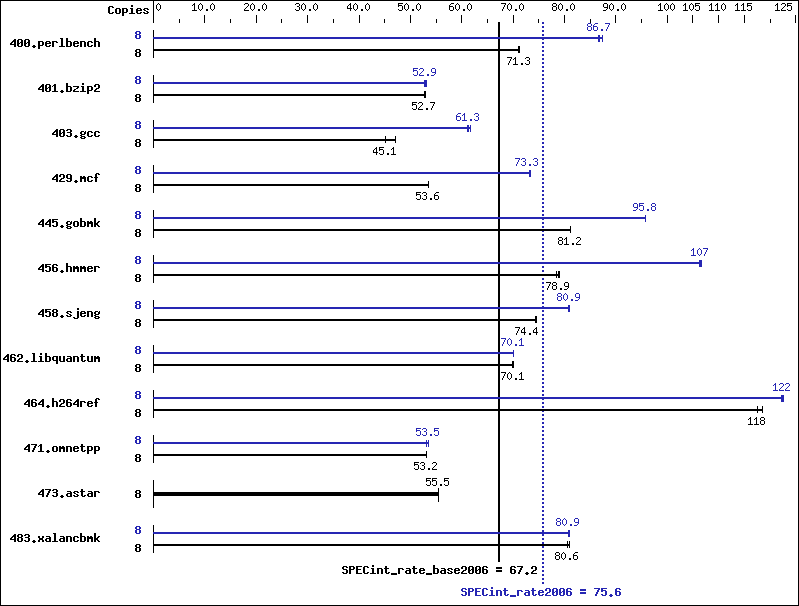

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 1101 | 71.0 | 1097 | 71.3 | 1097 | 71.3 | 8 | 894 | 87.4 | 903 | 86.6 | 901 | 86.7 |
| 401.bzip2 | 8 | 1465 | 52.7 | 1460 | 52.9 | 1465 | 52.7 | 8 | 1459 | 52.9 | 1462 | 52.8 | 1451 | 53.2 |
| 403.gcc | 8 | 1428 | 45.1 | 1368 | 47.1 | 1429 | 45.1 | 8 | 1043 | 61.8 | 1051 | 61.3 | 1053 | 61.2 |
| 429.mcf | 8 | 1361 | 53.6 | 1363 | 53.5 | 1362 | 53.6 | 8 | 995 | 73.3 | 996 | 73.2 | 996 | 73.3 |
| 445.gobmk | 8 | 1034 | 81.2 | 1034 | 81.1 | 1034 | 81.2 | 8 | 876 | 95.8 | 876 | 95.8 | 876 | 95.8 |
| 456.hmmer | 8 | 945 | 79.0 | 946 | 78.9 | 951 | 78.5 | 8 | 702 | 106 | 701 | 107 | 700 | 107 |
| 458.sjeng | 8 | 1297 | 74.6 | 1303 | 74.3 | 1302 | 74.4 | 8 | 1199 | 80.7 | 1195 | 81.0 | 1196 | 80.9 |
| 462.libquantum | 8 | 2371 | 69.9 | 2364 | 70.1 | 2365 | 70.1 | 8 | 2363 | 70.1 | 2363 | 70.1 | 2363 | 70.1 |
| 464.h264ref | 8 | 1505 | 118 | 1494 | 119 | 1505 | 118 | 8 | 1450 | 122 | 1445 | 123 | 1446 | 122 |
| 471.omnetpp | 8 | 941 | 53.2 | 940 | 53.2 | 940 | 53.2 | 8 | 942 | 53.1 | 933 | 53.6 | 935 | 53.5 |
| 473.astar | 8 | 1012 | 55.5 | 1012 | 55.5 | 1013 | 55.4 | 8 | 1012 | 55.5 | 1012 | 55.5 | 1013 | 55.4 |
| 483.xalancbmk | 8 | 685 | 80.6 | 685 | 80.6 | 681 | 81.0 | 8 | 682 | 80.9 | 683 | 80.9 | 683 | 80.8 |
General Notes
taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/tools/SmartHeap_8.1/lib -lsmartheap |
