| CPU2006 license: | 11 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2007 |
| Tested by: | IBM Corporation | Software Availability: | Jul-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5365 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

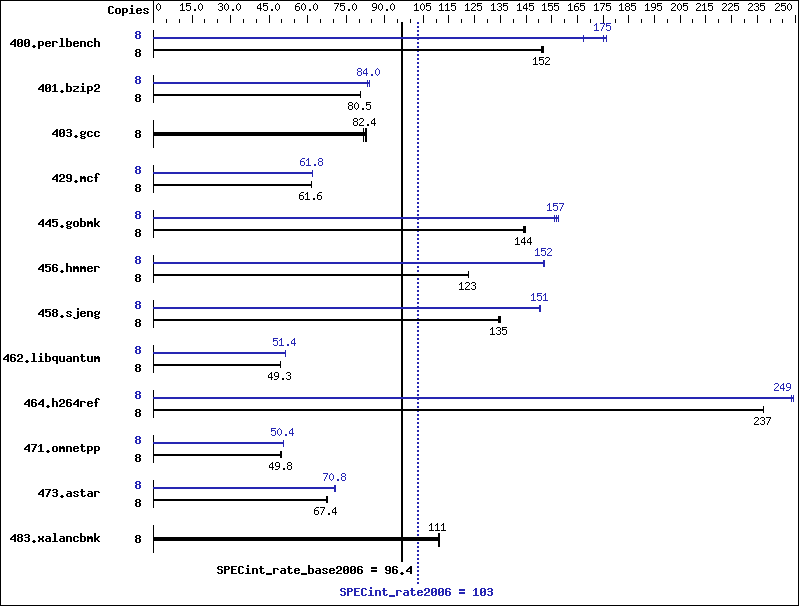

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 515 | 152 | 518 | 151 | 516 | 152 | 8 | 446 | 175 | 467 | 167 | 444 | 176 |
| 401.bzip2 | 8 | 959 | 80.5 | 960 | 80.4 | 958 | 80.6 | 8 | 926 | 83.3 | 919 | 84.0 | 918 | 84.1 |
| 403.gcc | 8 | 781 | 82.4 | 787 | 81.8 | 776 | 83.0 | 8 | 781 | 82.4 | 787 | 81.8 | 776 | 83.0 |
| 429.mcf | 8 | 1183 | 61.6 | 1184 | 61.6 | 1184 | 61.6 | 8 | 1179 | 61.9 | 1180 | 61.8 | 1182 | 61.7 |
| 445.gobmk | 8 | 581 | 144 | 579 | 145 | 583 | 144 | 8 | 535 | 157 | 537 | 156 | 533 | 158 |
| 456.hmmer | 8 | 608 | 123 | 608 | 123 | 609 | 123 | 8 | 490 | 152 | 490 | 152 | 491 | 152 |
| 458.sjeng | 8 | 719 | 135 | 720 | 134 | 717 | 135 | 8 | 643 | 151 | 644 | 150 | 642 | 151 |
| 462.libquantum | 8 | 3360 | 49.3 | 3360 | 49.3 | 3361 | 49.3 | 8 | 3221 | 51.5 | 3223 | 51.4 | 3223 | 51.4 |
| 464.h264ref | 8 | 746 | 237 | 746 | 237 | 746 | 237 | 8 | 711 | 249 | 713 | 248 | 711 | 249 |
| 471.omnetpp | 8 | 1004 | 49.8 | 1005 | 49.8 | 1008 | 49.6 | 8 | 991 | 50.4 | 992 | 50.4 | 992 | 50.4 |
| 473.astar | 8 | 833 | 67.4 | 829 | 67.8 | 833 | 67.4 | 8 | 794 | 70.8 | 796 | 70.5 | 794 | 70.8 |
| 483.xalancbmk | 8 | 497 | 111 | 496 | 111 | 498 | 111 | 8 | 497 | 111 | 496 | 111 | 498 | 111 |
General Notes
taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
