SPEC® CFP2006 Result

IBM Corporation

IBM System x3455 (AMD Opteron 2216)

SPECfp®_rate2006 = 43.0

SPECfp_rate_base2006 = 41.0

CPU2006 license:	11	Test date:	Aug-2007
Test sponsor:	IBM Corporation	Hardware Availability:	Oct-2006
Tested by:	IBM Corporation	Software Availability:	Mar-2007

Hardware
CPU Name:	AMD Opteron 2216
CPU Characteristics:
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1, 2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem:	1 x 160 GB Serial ATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler:	QLogic PathScale Compiler Suite, Release 3.0
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap 8.1

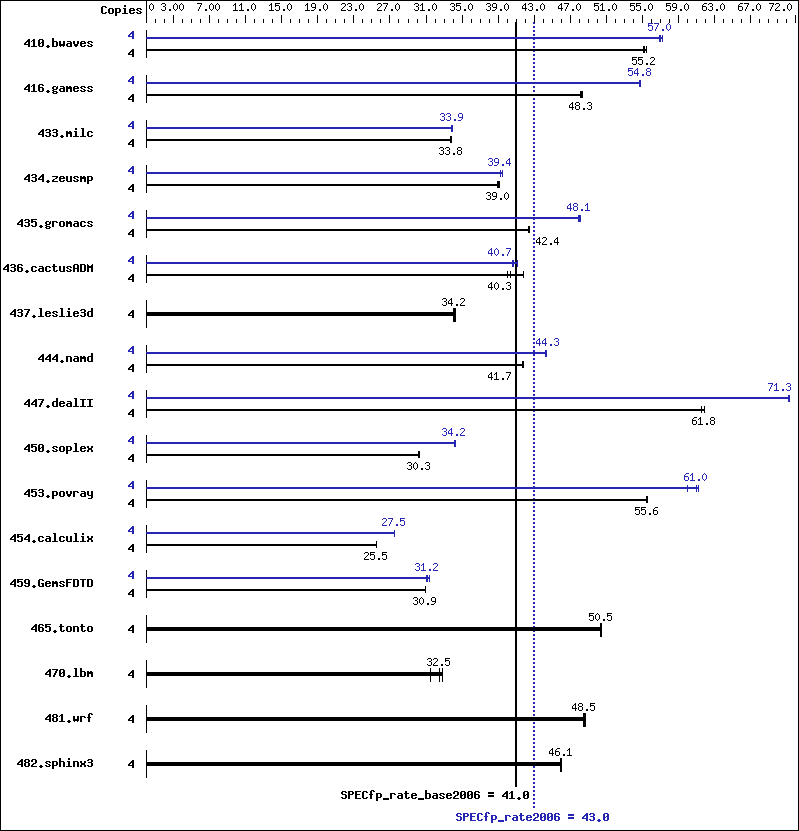

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	986	55.1	981	55.4	985	55.2	4	954	57.0	950	57.2	955	56.9
416.gamess	4	1621	48.3	1626	48.2	1622	48.3	4	1429	54.8	1429	54.8	1432	54.7
433.milc	4	1088	33.8	1085	33.8	1086	33.8	4	1082	33.9	1085	33.8	1081	34.0
434.zeusmp	4	935	38.9	932	39.0	930	39.1	4	923	39.4	927	39.3	923	39.4
435.gromacs	4	674	42.4	673	42.4	672	42.5	4	597	47.9	594	48.1	594	48.1
436.cactusADM	4	1143	41.8	1185	40.3	1192	40.1	4	1173	40.7	1176	40.6	1162	41.1
437.leslie3d	4	1096	34.3	1105	34.0	1100	34.2	4	1096	34.3	1105	34.0	1100	34.2
444.namd	4	769	41.7	768	41.8	769	41.7	4	724	44.3	725	44.3	724	44.3
447.dealII	4	740	61.8	740	61.9	743	61.6	4	642	71.3	642	71.3	643	71.2
450.soplex	4	1101	30.3	1104	30.2	1100	30.3	4	973	34.3	977	34.1	976	34.2
453.povray	4	384	55.5	383	55.6	383	55.6	4	347	61.3	355	60.0	349	61.0
454.calculix	4	1296	25.5	1297	25.5	1295	25.5	4	1199	27.5	1199	27.5	1200	27.5
459.GemsFDTD	4	1372	30.9	1373	30.9	1373	30.9	4	1369	31.0	1350	31.4	1362	31.2
465.tonto	4	780	50.5	780	50.5	783	50.3	4	780	50.5	780	50.5	783	50.3
470.lbm	4	1745	31.5	1692	32.5	1673	32.8	4	1745	31.5	1692	32.5	1673	32.8
481.wrf	4	920	48.5	921	48.5	917	48.7	4	920	48.5	921	48.5	917	48.7
482.sphinx3	4	1693	46.1	1692	46.1	1698	45.9	4	1693	46.1	1692	46.1	1698	45.9

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -OPT:malloc_alg=1

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -INLINE:aggressive=on -LNO:opt=0 -OPT:alias=disjoint -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=2

C++ benchmarks:

-IPA:max_jobs=2

Fortran benchmarks:

-IPA:max_jobs=2

Benchmarks using both Fortran and C:

-IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
