SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc. (Test Sponsor: Intel Corporation)

Dell XPS M1710 (Intel Core Duo T2600)

CPU2006 license: 13 Test date: Jun-2007
Test sponsor: Intel Corporation Hardware Availability: Jun-2007
Tested by: Intel Corporation Software Availability: May-2007

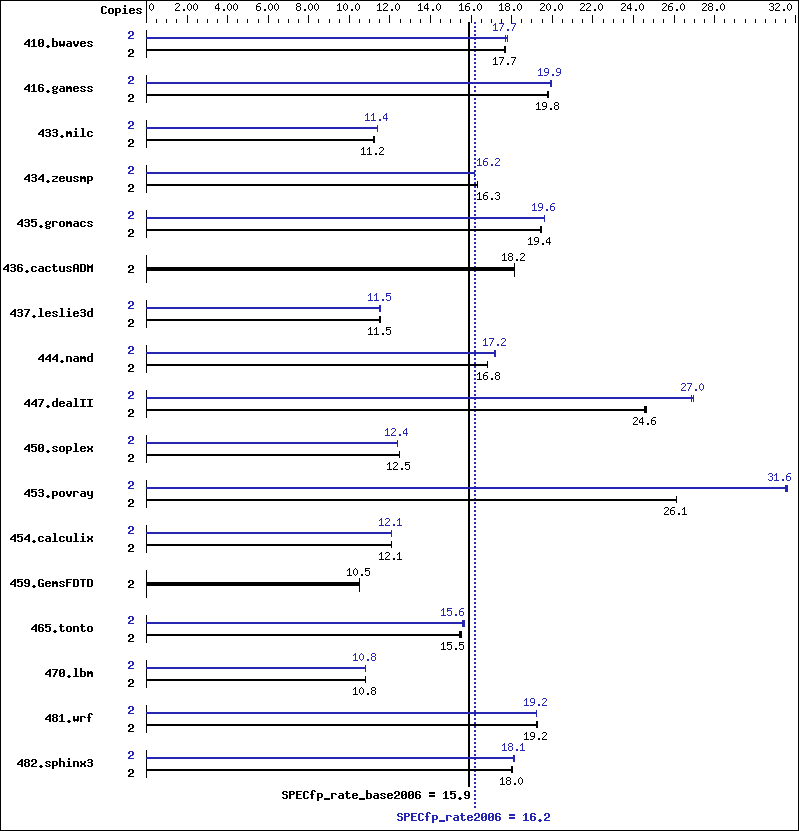

Benchmark results graph
Hardware
CPU Name: Intel Core Duo T2600
CPU Characteristics: 2.17 GHz, 2MB L2, 667 MHz bus
CPU MHz: 2167
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB Hynix DDR2-667 CL5)
Disk Subsystem: 100GB Hitachi SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None
SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1541 17.6 1535 17.7 1536 17.7 2 1535 17.7 1529 17.8 1536 17.7
416.gamess 2 1979 19.8 1980 19.8 1977 19.8 2 1962 20.0 1966 19.9 1965 19.9
433.milc 2 1639 11.2 1637 11.2 1638 11.2 2 1612 11.4 1609 11.4 1612 11.4
434.zeusmp 2 1116 16.3 1116 16.3 1117 16.3 2 1125 16.2 1124 16.2 1125 16.2
435.gromacs 2 734 19.5 735 19.4 734 19.4 2 728 19.6 728 19.6 727 19.6
436.cactusADM 2 1317 18.2 1317 18.1 1316 18.2 2 1317 18.2 1317 18.1 1316 18.2
437.leslie3d 2 1633 11.5 1631 11.5 1634 11.5 2 1633 11.5 1634 11.5 1633 11.5
444.namd 2 955 16.8 955 16.8 955 16.8 2 934 17.2 934 17.2 935 17.2
447.dealII 2 930 24.6 929 24.6 932 24.6 2 849 27.0 852 26.9 848 27.0
450.soplex 2 1337 12.5 1335 12.5 1336 12.5 2 1348 12.4 1346 12.4 1347 12.4
453.povray 2 407 26.1 408 26.1 407 26.1 2 337 31.6 338 31.5 337 31.6
454.calculix 2 1365 12.1 1365 12.1 1365 12.1 2 1369 12.1 1365 12.1 1366 12.1
459.GemsFDTD 2 2025 10.5 2024 10.5 2024 10.5 2 2025 10.5 2024 10.5 2024 10.5
465.tonto 2 1270 15.5 1274 15.4 1268 15.5 2 1255 15.7 1263 15.6 1261 15.6
470.lbm 2 2541 10.8 2542 10.8 2543 10.8 2 2543 10.8 2542 10.8 2545 10.8
481.wrf 2 1160 19.3 1162 19.2 1161 19.2 2 1161 19.2 1162 19.2 1161 19.2
482.sphinx3 2 2163 18.0 2164 18.0 2164 18.0 2 2149 18.1 2153 18.1 2148 18.1

General Notes

 The system bus runs at 667 MHz
 System was configured with an nVIDIA GeForce Go 7900 GTX graphics card
 Binaries were built on Windows XP Professional SP2
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -QxP   -Qipo   -O3   -Qprec-div-   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxP   -Qipo   -O3   -Qprec-div-   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxP   -Qipo   -O3   -Qprec-div-   /F950000000

Benchmarks using both Fortran and C:

 -QxP   -Qipo   -O3   -Qprec-div-   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxP   -Qipo   -O3   -Qprec-div-   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -Qipo   -O3   -Qprec-div-   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxP   -Qipo   -O3   -Qprec-div-   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.43.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.43.xml.
