SPEC® CINT2006 Result

Hewlett-Packard Company

ProLiant DL580 G4
(3.4 GHz, Intel Xeon processor 7140M)

Hardware
CPU Name:	Intel Xeon 7140M
CPU Characteristics:	3.4 GHz, 800 MHz system bus
CPU MHz:	3400
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1,2,4 chips
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	16 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16x2 GB PC2-3200R)
Disk Subsystem:	1x72 GB 15 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T applications, Version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap 8.1 libraries

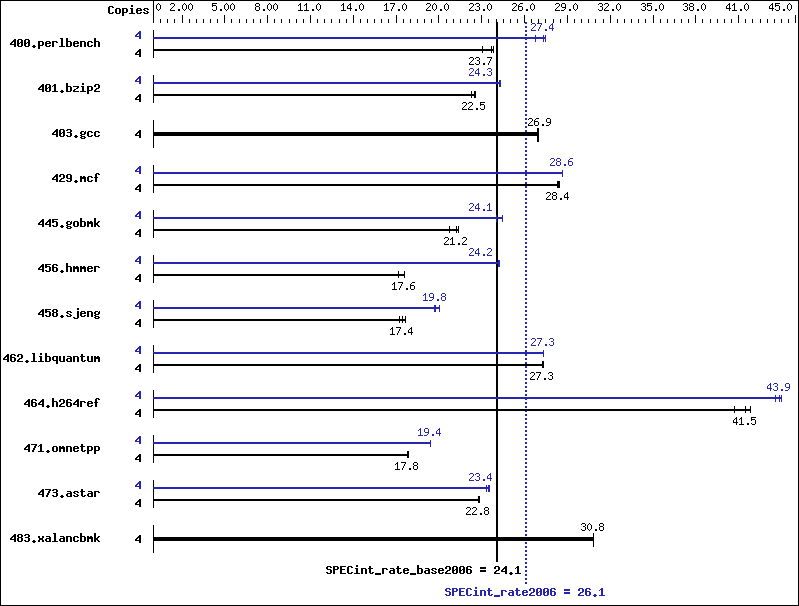

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	4	1641	23.8	1697	23.0	1648	23.7	4	1429	27.4	1460	26.8	1423	27.5
401.bzip2	4	1713	22.5	1715	22.5	1731	22.3	4	1592	24.3	1586	24.3	1591	24.3
403.gcc	4	1196	26.9	1197	26.9	1194	27.0	4	1196	26.9	1197	26.9	1194	27.0
429.mcf	4	1282	28.5	1286	28.4	1288	28.3	4	1274	28.6	1274	28.6	1273	28.7
445.gobmk	4	2022	20.8	1964	21.4	1975	21.2	4	1715	24.5	1745	24.0	1744	24.1
456.hmmer	4	2120	17.6	2124	17.6	2178	17.1	4	1540	24.2	1542	24.2	1541	24.2
458.sjeng	4	2807	17.2	2775	17.4	2742	17.7	4	2455	19.7	2416	20.0	2449	19.8
462.libquantum	4	3038	27.3	3040	27.3	3035	27.3	4	3031	27.3	3031	27.3	3031	27.3
464.h264ref	4	2174	40.7	2132	41.5	2115	41.9	4	2033	43.5	2018	43.9	2011	44.0
471.omnetpp	4	1398	17.9	1405	17.8	1406	17.8	4	1290	19.4	1289	19.4	1290	19.4
473.astar	4	1234	22.8	1231	22.8	1234	22.7	4	1198	23.4	1202	23.4	1191	23.6
483.xalancbmk	4	895	30.8	896	30.8	896	30.8	4	895	30.8	896	30.8	896	30.8

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Enabled

icc

icpc

-xP -ipo -O3 -static -no-prec-div

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include
456.hmmer:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div
403.gcc:	basepeak = yes
429.mcf:	-xP -ipo -O3 -static -no-prec-div -prefetch -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xP -O2 -ipo -no-prec_div -ansi-alias
456.hmmer:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -ansi-alias
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4
462.libquantum:	Same as 458.sjeng
464.h264ref:	Same as 456.hmmer

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xP -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
473.astar:	Same as 471.omnetpp
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.03.xml.
