SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant BL465c (AMD Opteron 2220)

SPECfp®_rate2006 = 48.8

SPECfp_rate_base2006 = 46.1

CPU2006 license:	3	Test date:	Jul-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Jan-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Apr-2007

Hardware
CPU Name:	AMD Opteron 2220
CPU Characteristics:	2.8 GHz, 1 MB L2 cache
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	32 GB (8x4 GB, PC2-5300P CL5)
Disk Subsystem:	2x72 GB 10 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	QLogic PathScale Compiler Suite, Release 3.0
Auto Parallel:	No
File System:	ext2
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

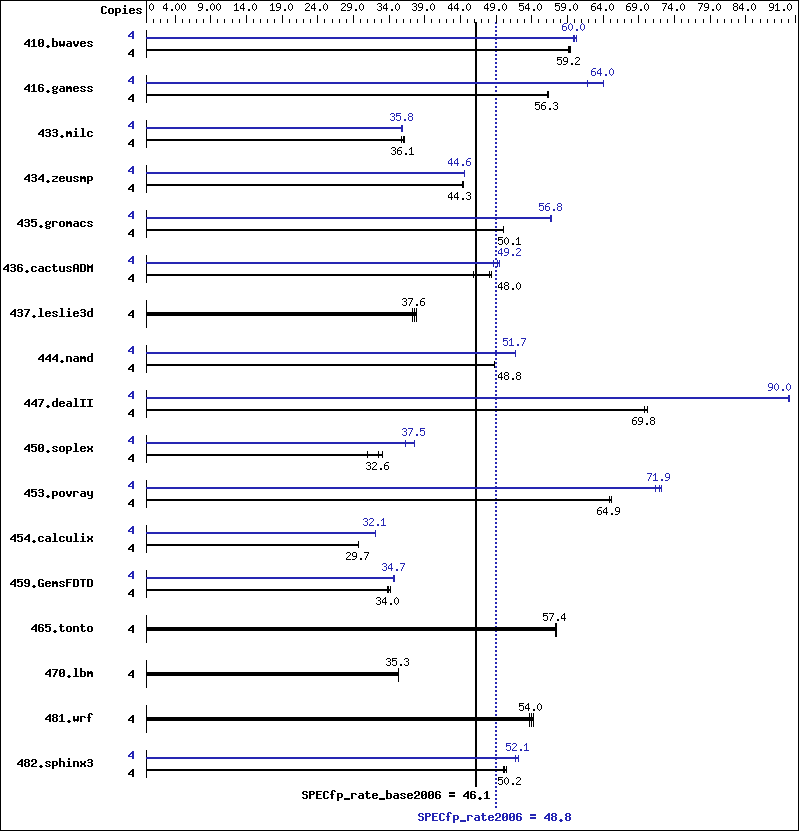

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	914	59.5	918	59.2	919	59.1	4	905	60.0	902	60.3	908	59.8
416.gamess	4	1391	56.3	1393	56.2	1392	56.3	4	1223	64.0	1224	64.0	1266	61.9
433.milc	4	1028	35.7	1018	36.1	1016	36.1	4	1025	35.8	1022	35.9	1024	35.8
434.zeusmp	4	822	44.3	820	44.4	821	44.3	4	816	44.6	816	44.6	816	44.6
435.gromacs	4	570	50.1	571	50.1	571	50.1	4	504	56.6	503	56.8	503	56.8
436.cactusADM	4	996	48.0	1044	45.8	988	48.4	4	966	49.5	983	48.6	972	49.2
437.leslie3d	4	995	37.8	1007	37.3	1000	37.6	4	995	37.8	1007	37.3	1000	37.6
444.namd	4	657	48.8	658	48.8	658	48.8	4	620	51.8	620	51.7	621	51.7
447.dealII	4	656	69.8	656	69.8	652	70.2	4	509	90.0	508	90.1	508	90.0
450.soplex	4	1078	30.9	1010	33.0	1024	32.6	4	887	37.6	890	37.5	918	36.3
453.povray	4	328	64.9	328	64.9	326	65.2	4	298	71.3	295	72.2	296	71.9
454.calculix	4	1112	29.7	1112	29.7	1112	29.7	4	1029	32.1	1030	32.0	1030	32.1
459.GemsFDTD	4	1249	34.0	1257	33.8	1240	34.2	4	1223	34.7	1223	34.7	1224	34.7
465.tonto	4	685	57.5	686	57.4	686	57.3	4	685	57.5	686	57.4	686	57.3
470.lbm	4	1558	35.3	1559	35.3	1555	35.3	4	1558	35.3	1559	35.3	1555	35.3
481.wrf	4	832	53.7	824	54.2	827	54.0	4	832	53.7	824	54.2	827	54.0
482.sphinx3	4	1557	50.1	1545	50.4	1552	50.2	4	1496	52.1	1508	51.7	1495	52.1

General Notes

 Node interleaving is disabled
 ulimit -s unlimited set

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -OPT:malloc_alg=1

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -WOPT:aggstr=0 -m32

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=4

C++ benchmarks:

-IPA:max_jobs=4

Fortran benchmarks:

-IPA:max_jobs=4

Benchmarks using both Fortran and C:

-IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.15.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.15.xml.
