| CPU2006 license: | 11 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2006 |
| Tested by: | IBM Corporation | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 8212 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2, 3, 4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16 x 2GB DDR2-5300 ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | QLogic PathScale Compiler Suite, Release 3.0 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

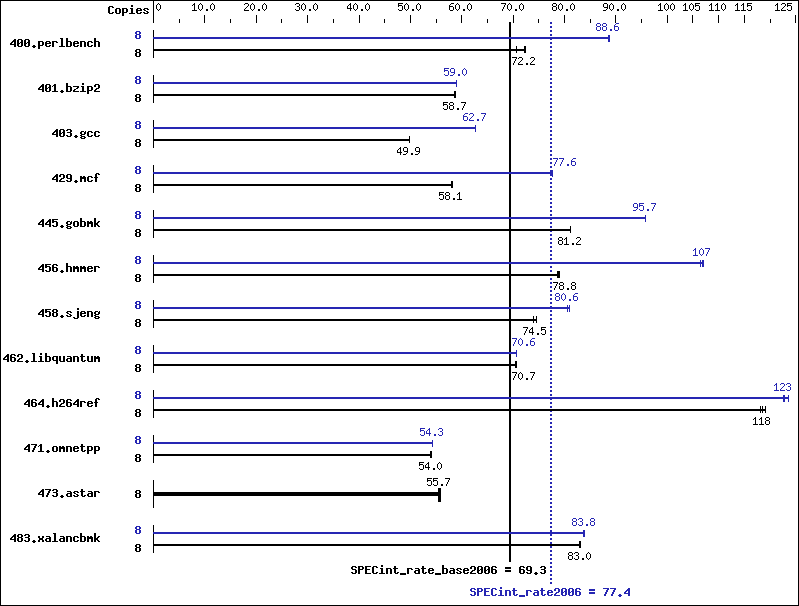

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 1105 | 70.7 | 1081 | 72.3 | 1082 | 72.2 | 8 | 882 | 88.6 | 880 | 88.8 | 883 | 88.5 |
| 401.bzip2 | 8 | 1314 | 58.7 | 1315 | 58.7 | 1318 | 58.6 | 8 | 1311 | 58.9 | 1308 | 59.0 | 1309 | 59.0 |
| 403.gcc | 8 | 1291 | 49.9 | 1291 | 49.9 | 1294 | 49.8 | 8 | 1028 | 62.7 | 1027 | 62.7 | 1028 | 62.6 |
| 429.mcf | 8 | 1256 | 58.1 | 1255 | 58.1 | 1256 | 58.1 | 8 | 940 | 77.6 | 940 | 77.6 | 940 | 77.6 |
| 445.gobmk | 8 | 1035 | 81.1 | 1033 | 81.2 | 1034 | 81.2 | 8 | 876 | 95.7 | 876 | 95.8 | 877 | 95.7 |
| 456.hmmer | 8 | 945 | 79.0 | 947 | 78.8 | 949 | 78.6 | 8 | 699 | 107 | 702 | 106 | 698 | 107 |
| 458.sjeng | 8 | 1308 | 74.0 | 1299 | 74.5 | 1299 | 74.5 | 8 | 1202 | 80.6 | 1201 | 80.6 | 1196 | 81.0 |
| 462.libquantum | 8 | 2356 | 70.4 | 2345 | 70.7 | 2346 | 70.7 | 8 | 2348 | 70.6 | 2347 | 70.6 | 2348 | 70.6 |
| 464.h264ref | 8 | 1487 | 119 | 1495 | 118 | 1499 | 118 | 8 | 1442 | 123 | 1433 | 124 | 1444 | 123 |
| 471.omnetpp | 8 | 928 | 53.9 | 926 | 54.0 | 926 | 54.0 | 8 | 920 | 54.3 | 921 | 54.3 | 921 | 54.3 |
| 473.astar | 8 | 1007 | 55.8 | 1013 | 55.5 | 1009 | 55.7 | 8 | 1007 | 55.8 | 1013 | 55.5 | 1009 | 55.7 |
| 483.xalancbmk | 8 | 665 | 83.0 | 665 | 83.0 | 665 | 83.0 | 8 | 659 | 83.7 | 659 | 83.8 | 659 | 83.8 |
General Notes
taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/tools/SmartHeap_8.1/lib -lsmartheap |
