SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

HITACHI

BladeSymphony BS320 (Intel Xeon E5345)

SPECfp®2006 = 15.2

CPU2006 license: 872 Test date: Jul-2007
Test sponsor: HITACHI Hardware Availability: Jan-2007
Tested by: HITACHI Software Availability: Mar-2007

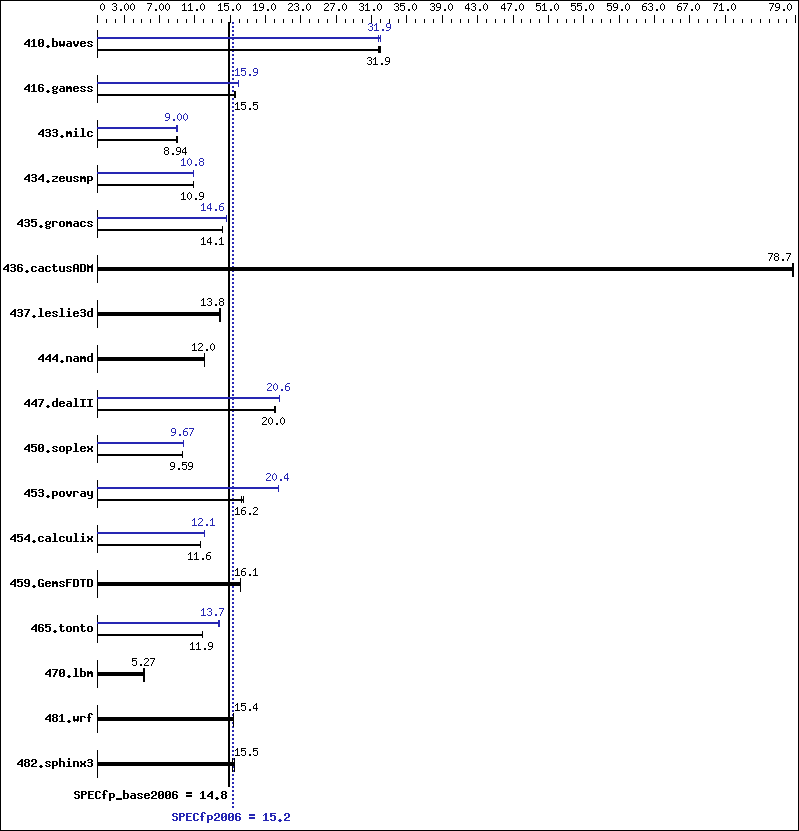

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5345
CPU Characteristics: 1333MHz system bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB(4 x 2 GB PC2-5300F CAS 5-5-5)
Disk Subsystem: 2 x 73GB 10000rpm SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux
ES release 4 (Nahant Update 3)
Kernel 2.6.9-34.ELsmp on an x86_64
Compiler: Intel C++ Compiler for EM64T
version 9.1 build 20070320
Intel Fortran Compiler for EM64T
version 9.1 build 20070320
Auto Parallel: Yes
File System: ext3
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 426 31.9  427 31.8  425 32.0  428 31.8  425 31.9  425 32.0
416.gamess 1261 15.5  1260 15.5  1263 15.5  1230 15.9  1231 15.9  1232 15.9
433.milc 1027 8.94 1020 9.00 1030 8.91 1020 9.00 1020 9.00 1028 8.93
434.zeusmp 838 10.9  838 10.9  841 10.8  843 10.8  838 10.9  839 10.8
435.gromacs 507 14.1  507 14.1  507 14.1  489 14.6  489 14.6  489 14.6
436.cactusADM 152 78.7  152 78.7  152 78.7  152 78.7  152 78.7  152 78.7
437.leslie3d 682 13.8  681 13.8  676 13.9  682 13.8  681 13.8  676 13.9
444.namd 666 12.0  666 12.0  666 12.0  666 12.0  666 12.0  666 12.0
447.dealII 571 20.0  569 20.1  572 20.0  555 20.6  555 20.6  555 20.6
450.soplex 871 9.58 870 9.59 868 9.61 864 9.65 863 9.67 855 9.75
453.povray 327 16.2  323 16.5  327 16.2  260 20.4  260 20.4  260 20.4
454.calculix 710 11.6  707 11.7  708 11.6  684 12.1  684 12.1  685 12.0
459.GemsFDTD 657 16.1  656 16.2  657 16.1  657 16.1  656 16.2  657 16.1
465.tonto 826 11.9  827 11.9  826 11.9  718 13.7  717 13.7  716 13.7
470.lbm 2627 5.23 2608 5.27 2607 5.27 2627 5.23 2608 5.27 2607 5.27
481.wrf 726 15.4  726 15.4  727 15.4  726 15.4  726 15.4  727 15.4
482.sphinx3 1280 15.2  1259 15.5  1255 15.5  1280 15.2  1259 15.5  1255 15.5

Operating System Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -parallel

C++ benchmarks:

 -fast   -parallel

Fortran benchmarks:

 -fast   -parallel

Benchmarks using both Fortran and C:

 -fast   -parallel

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fast
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -fast
450.soplex:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -parallel
453.povray:  Same as 450.soplex

Fortran benchmarks:

410.bwaves:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -parallel
416.gamess:  -fast
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -parallel
436.cactusADM:  basepeak = yes
454.calculix:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/ic91_fp.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/ic91_fp.xml.
