| CPU2006 license: | 11 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jul-2006 |
| Tested by: | IBM Corporation | Software Availability: | Jul-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

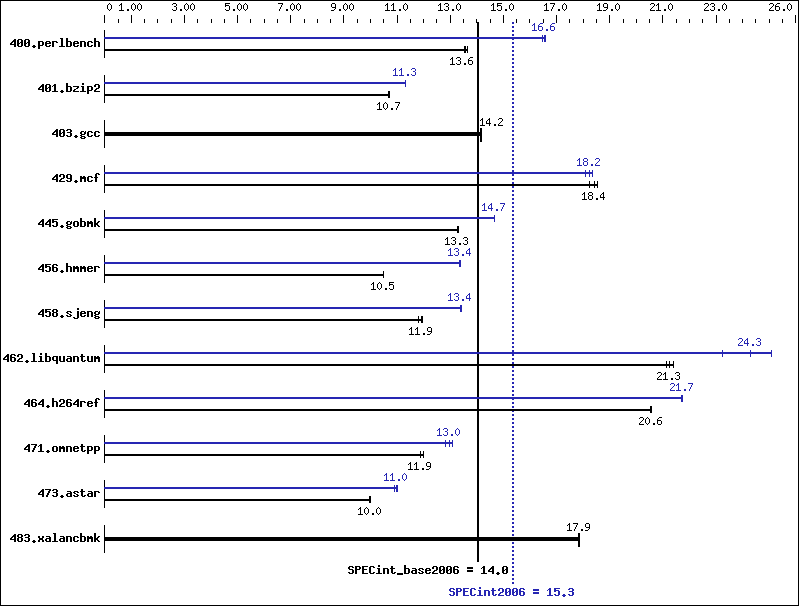

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 716 | 13.7 | 721 | 13.6 | 721 | 13.6 | 589 | 16.6 | 590 | 16.6 | 593 | 16.5 |
| 401.bzip2 | 902 | 10.7 | 900 | 10.7 | 902 | 10.7 | 852 | 11.3 | 852 | 11.3 | 852 | 11.3 |
| 403.gcc | 569 | 14.2 | 569 | 14.2 | 569 | 14.2 | 569 | 14.2 | 569 | 14.2 | 569 | 14.2 |
| 429.mcf | 492 | 18.5 | 495 | 18.4 | 500 | 18.2 | 500 | 18.2 | 504 | 18.1 | 497 | 18.4 |
| 445.gobmk | 789 | 13.3 | 790 | 13.3 | 791 | 13.3 | 716 | 14.7 | 716 | 14.7 | 716 | 14.7 |
| 456.hmmer | 890 | 10.5 | 890 | 10.5 | 890 | 10.5 | 696 | 13.4 | 699 | 13.3 | 697 | 13.4 |
| 458.sjeng | 1013 | 11.9 | 1024 | 11.8 | 1016 | 11.9 | 904 | 13.4 | 904 | 13.4 | 902 | 13.4 |
| 462.libquantum | 969 | 21.4 | 975 | 21.3 | 980 | 21.1 | 892 | 23.2 | 826 | 25.1 | 853 | 24.3 |
| 464.h264ref | 1077 | 20.6 | 1077 | 20.6 | 1077 | 20.6 | 1020 | 21.7 | 1018 | 21.7 | 1019 | 21.7 |
| 471.omnetpp | 527 | 11.9 | 527 | 11.9 | 522 | 12.0 | 487 | 12.8 | 478 | 13.1 | 481 | 13.0 |
| 473.astar | 702 | 10.0 | 701 | 10.0 | 703 | 9.98 | 639 | 11.0 | 644 | 10.9 | 637 | 11.0 |
| 483.xalancbmk | 386 | 17.9 | 387 | 17.8 | 386 | 17.9 | 386 | 17.9 | 387 | 17.8 | 386 | 17.9 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
