| CPU2006 license: | 001176 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Quad Q6700 |
| CPU Characteristics: | 2.67GHz 1066 MHz FSB |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2 X 1GB ECC PC2-5300, CL5, DDR2) |
| Disk Subsystem: | ST3750640AS 750GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 |

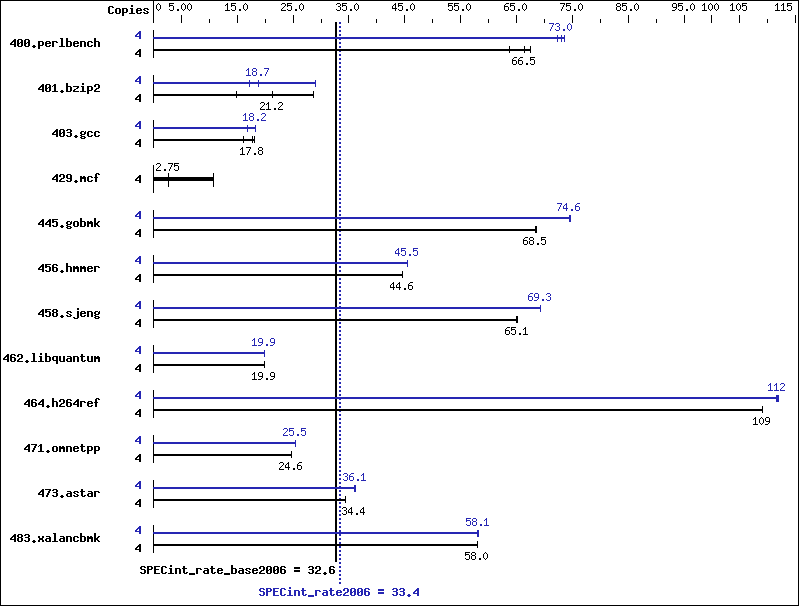

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 613 | 63.8 | 588 | 66.5 | 579 | 67.5 | 4 | 535 | 73.0 | 540 | 72.3 | 531 | 73.6 |
| 401.bzip2 | 4 | 2598 | 14.9 | 1351 | 28.6 | 1819 | 21.2 | 4 | 2059 | 18.7 | 1328 | 29.1 | 2235 | 17.3 |
| 403.gcc | 4 | 1989 | 16.2 | 1813 | 17.8 | 1775 | 18.1 | 4 | 1758 | 18.3 | 1907 | 16.9 | 1770 | 18.2 |
| 429.mcf | 4 | 3378 | 10.8 | 13270 | 2.75 | 13995 | 2.61 | 4 | 3378 | 10.8 | 13270 | 2.75 | 13995 | 2.61 |
| 445.gobmk | 4 | 613 | 68.5 | 613 | 68.5 | 613 | 68.4 | 4 | 564 | 74.4 | 562 | 74.7 | 563 | 74.6 |
| 456.hmmer | 4 | 836 | 44.6 | 836 | 44.7 | 836 | 44.6 | 4 | 819 | 45.6 | 820 | 45.5 | 819 | 45.5 |
| 458.sjeng | 4 | 743 | 65.1 | 744 | 65.1 | 743 | 65.1 | 4 | 699 | 69.2 | 698 | 69.3 | 698 | 69.3 |
| 462.libquantum | 4 | 4163 | 19.9 | 4162 | 19.9 | 4163 | 19.9 | 4 | 4165 | 19.9 | 4167 | 19.9 | 4167 | 19.9 |
| 464.h264ref | 4 | 812 | 109 | 812 | 109 | 812 | 109 | 4 | 791 | 112 | 794 | 111 | 792 | 112 |
| 471.omnetpp | 4 | 1015 | 24.6 | 1015 | 24.6 | 1015 | 24.6 | 4 | 981 | 25.5 | 981 | 25.5 | 980 | 25.5 |
| 473.astar | 4 | 817 | 34.4 | 815 | 34.5 | 817 | 34.4 | 4 | 777 | 36.2 | 778 | 36.1 | 779 | 36.1 |
| 483.xalancbmk | 4 | 476 | 58.0 | 476 | 58.0 | 476 | 58.0 | 4 | 474 | 58.2 | 475 | 58.1 | 475 | 58.1 |
General Notes
Tested systems can be used with SC816S-R700 case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon3000/3000/PDSMi+.cfm The system bus runs at 1066 MHz
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxP -O2 -Qipo -Qprec-div- -Qunroll4 -Ob2 -Qsfalign16 -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | Same as 471.omnetpp |
