SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard PDSMI+

SPECint®2006 = 17.6

CPU2006 license: 001176 Test date: Jul-2007
Test sponsor: Supermicro Hardware Availability: May-2007
Tested by: Supermicro Software Availability: Apr-2007

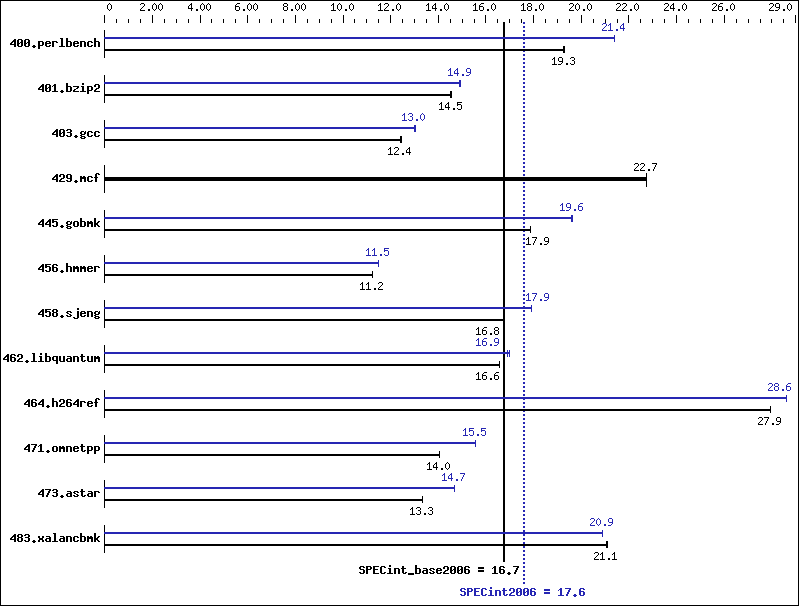

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Quad Q6700
CPU Characteristics: 2.67GHz 1066 MHz FSB
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 X 1GB ECC PC2-5300, CL5, DDR2)
Disk Subsystem: ST3750640AS 750GB SATA II, 7200RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition W/ SP1
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20070322Z
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 507 19.3 506 19.3 506 19.3 456 21.4 456 21.4 457 21.4
401.bzip2 665 14.5 663 14.5 663 14.5 647 14.9 647 14.9 647 14.9
403.gcc 648 12.4 647 12.4 648 12.4 617 13.0 618 13.0 620 13.0
429.mcf 401 22.7 401 22.7 401 22.7 401 22.7 401 22.7 401 22.7
445.gobmk 587 17.9 588 17.9 587 17.9 535 19.6 534 19.6 535 19.6
456.hmmer 830 11.2 830 11.2 830 11.2 813 11.5 812 11.5 813 11.5
458.sjeng 721 16.8 721 16.8 721 16.8 676 17.9 676 17.9 676 17.9
462.libquantum 1252 16.6 1251 16.6 1252 16.6 1227 16.9 1219 17.0 1227 16.9
464.h264ref 792 27.9 792 27.9 792 27.9 773 28.6 773 28.6 774 28.6
471.omnetpp 445 14.0 445 14.1 445 14.0 402 15.5 402 15.6 402 15.5
473.astar 526 13.3 526 13.3 526 13.3 479 14.7 478 14.7 479 14.7
483.xalancbmk 328 21.1 328 21.1 327 21.1 330 20.9 331 20.9 330 20.9

General Notes

 Tested systems can be used with SC816S-R700 case,
 To ensure system stability,
 a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
 Product description located as of
 http://www.supermicro.com/products/motherboard/Xeon3000/3000/PDSMi+.cfm
 The system bus runs at 1066 MHz

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -O2   -Qipo   -Qprec-div-   -Qunroll4   -Ob2   -Qsfalign16   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  Same as 471.omnetpp

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.xml.
