SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DQ965GF motherboard (Intel Core 2 Duo E6700)

CPU2006 license: 13 Test date: Jun-2007
Test sponsor: Intel Corporation Hardware Availability: Aug-2006
Tested by: Intel Corporation Software Availability: Aug-2006

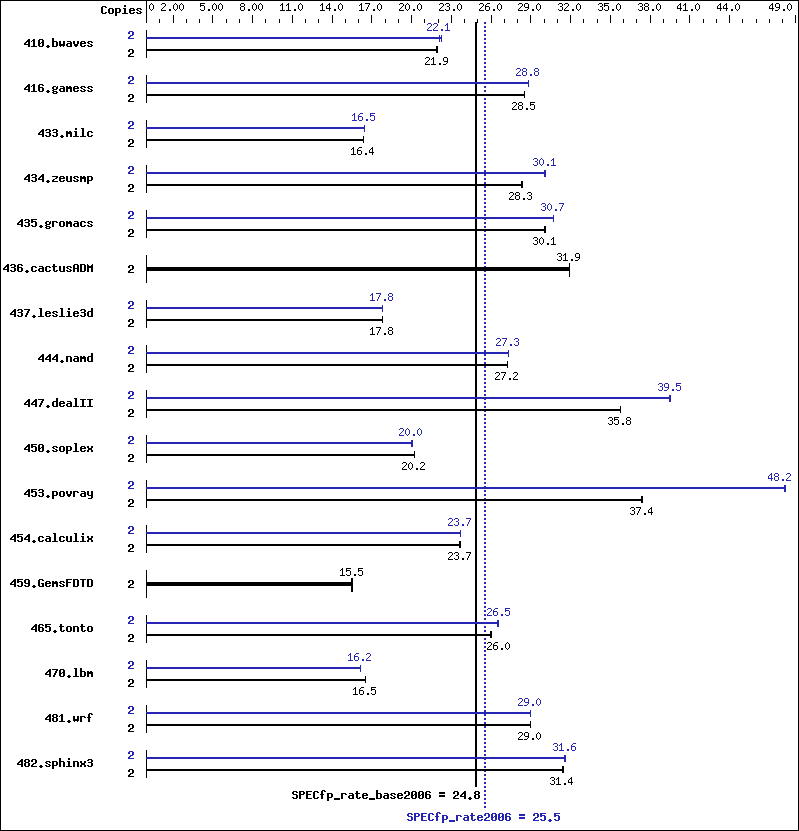

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E6700
CPU Characteristics: 2.67 GHz, 1066 MHz bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ
SATA II
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1240 21.9 1237 22.0 1242 21.9 2 1223 22.2 1227 22.1 1231 22.1
416.gamess 2 1374 28.5 1374 28.5 1374 28.5 2 1358 28.8 1358 28.8 1358 28.8
433.milc 2 1122 16.4 1122 16.4 1122 16.4 2 1113 16.5 1113 16.5 1114 16.5
434.zeusmp 2 641 28.4 643 28.3 643 28.3 2 604 30.1 604 30.1 606 30.0
435.gromacs 2 475 30.1 474 30.1 475 30.1 2 465 30.7 465 30.7 465 30.7
436.cactusADM 2 748 31.9 748 31.9 748 32.0 2 748 31.9 748 31.9 748 32.0
437.leslie3d 2 1057 17.8 1055 17.8 1058 17.8 2 1055 17.8 1055 17.8 1056 17.8
444.namd 2 589 27.2 589 27.2 589 27.2 2 587 27.3 587 27.3 587 27.3
447.dealII 2 639 35.8 639 35.8 640 35.8 2 579 39.5 578 39.6 580 39.5
450.soplex 2 824 20.2 825 20.2 823 20.3 2 836 20.0 836 20.0 832 20.0
453.povray 2 285 37.4 284 37.4 284 37.5 2 221 48.2 221 48.2 221 48.2
454.calculix 2 697 23.7 698 23.7 697 23.7 2 697 23.7 697 23.7 697 23.7
459.GemsFDTD 2 1370 15.5 1367 15.5 1366 15.5 2 1370 15.5 1367 15.5 1366 15.5
465.tonto 2 757 26.0 756 26.0 758 26.0 2 742 26.5 741 26.6 742 26.5
470.lbm 2 1666 16.5 1666 16.5 1666 16.5 2 1699 16.2 1699 16.2 1700 16.2
481.wrf 2 770 29.0 771 29.0 770 29.0 2 771 29.0 772 29.0 771 29.0
482.sphinx3 2 1239 31.5 1240 31.4 1241 31.4 2 1235 31.6 1233 31.6 1234 31.6

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://www.intel.com/products/motherboard/DQ965GF/index.htm
 The system bus runs at 1066 MHz
 System was configured with integrated graphics card
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:57:23 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
