SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DG965WH motherboard (Intel Core 2 Duo E6700)

CPU2006 license: 13 Test date: Jun-2007
Test sponsor: Intel Corporation Hardware Availability: Aug-2006
Tested by: Intel Corporation Software Availability: Aug-2006

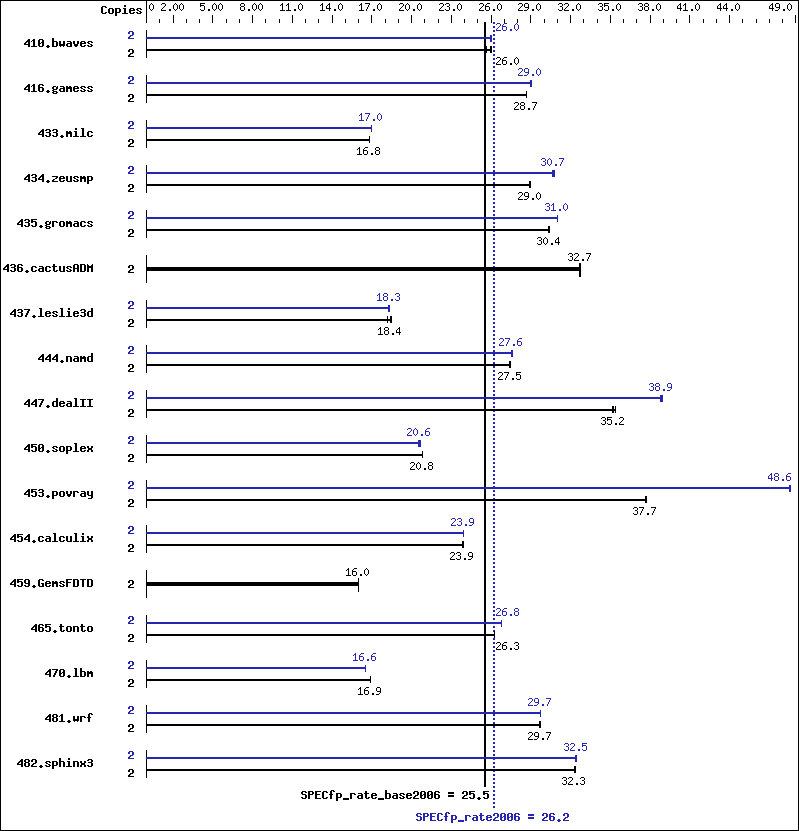

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E6700
CPU Characteristics: 2.67 GHz, 1066 MHz bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ
SATA II
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1059 25.7 1045 26.0 1047 26.0 2 1046 26.0 1045 26.0 1046 26.0
416.gamess 2 1366 28.7 1364 28.7 1366 28.7 2 1347 29.1 1350 29.0 1350 29.0
433.milc 2 1091 16.8 1093 16.8 1091 16.8 2 1082 17.0 1083 17.0 1082 17.0
434.zeusmp 2 628 29.0 630 28.9 629 29.0 2 592 30.8 593 30.7 594 30.6
435.gromacs 2 470 30.4 469 30.4 470 30.4 2 460 31.0 461 31.0 460 31.0
436.cactusADM 2 729 32.8 731 32.7 730 32.7 2 729 32.8 731 32.7 730 32.7
437.leslie3d 2 1020 18.4 1032 18.2 1018 18.5 2 1029 18.3 1023 18.4 1026 18.3
444.namd 2 585 27.4 584 27.5 584 27.5 2 581 27.6 582 27.6 582 27.6
447.dealII 2 646 35.4 649 35.2 651 35.2 2 590 38.8 587 39.0 588 38.9
450.soplex 2 800 20.8 801 20.8 800 20.9 2 808 20.6 809 20.6 812 20.5
453.povray 2 283 37.7 282 37.7 282 37.7 2 219 48.6 219 48.6 219 48.5
454.calculix 2 691 23.9 690 23.9 691 23.9 2 689 23.9 691 23.9 690 23.9
459.GemsFDTD 2 1324 16.0 1327 16.0 1329 16.0 2 1324 16.0 1327 16.0 1329 16.0
465.tonto 2 749 26.3 749 26.3 749 26.3 2 734 26.8 734 26.8 735 26.8
470.lbm 2 1625 16.9 1625 16.9 1625 16.9 2 1660 16.6 1660 16.6 1661 16.5
481.wrf 2 752 29.7 753 29.7 752 29.7 2 752 29.7 751 29.7 751 29.7
482.sphinx3 2 1207 32.3 1207 32.3 1205 32.3 2 1200 32.5 1204 32.4 1201 32.5

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://www.intel.com/products/motherboard/DG965WH/index.htm
 The system bus runs at 1066 MHz
 System has a discrete gfx card - Asus EN8800GTX/HTDP/768M w/ nVidia 8800GTX
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:43:58 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
