SPEC® CFP2006 Result

ASUS Computer International (Test Sponsor: Intel Corporation)

ASUS P5K3 motherboard (Intel Core 2 Duo E6750)

SPECfp®2006 = 17.7

SPECfp_base2006 = 17.1

CPU2006 license:	13	Test date:	Jul-2007
Test sponsor:	Intel Corporation	Hardware Availability:	Jul-2007
Tested by:	Intel Corporation	Software Availability:	Aug-2006

Hardware
CPU Name:	Intel Core 2 Duo E6750
CPU Characteristics:	2.66 GHz, 1333 MHz bus
CPU MHz:	2666
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	2 GB (2x1GB ELPIDA PC3-8500U-7-00-BP DDR3-1066 7-7-7-20)
Disk Subsystem:	Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ SATA II
Other Hardware:	None

Software
Operating System:	Windows Vista32 Ultimate
Compiler:	Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Intel Fortran Compiler for IA32 version 10.0 Build 20070426 Package ID: W_FC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.0 from http://www.microquill.com/

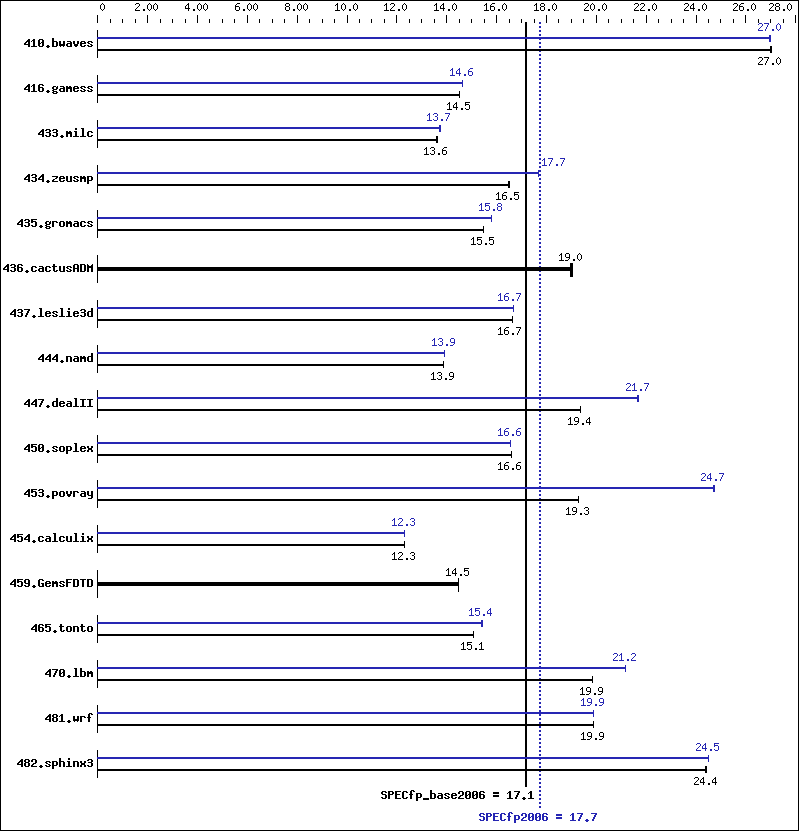

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	503	27.0	503	27.0	504	27.0	504	26.9	504	27.0	504	27.0
416.gamess	1349	14.5	1351	14.5	1351	14.5	1337	14.6	1337	14.6	1337	14.6
433.milc	674	13.6	676	13.6	676	13.6	669	13.7	670	13.7	670	13.7
434.zeusmp	552	16.5	552	16.5	552	16.5	514	17.7	514	17.7	514	17.7
435.gromacs	461	15.5	462	15.5	461	15.5	452	15.8	453	15.8	452	15.8
436.cactusADM	628	19.0	630	19.0	629	19.0	628	19.0	630	19.0	629	19.0
437.leslie3d	564	16.7	564	16.7	565	16.6	563	16.7	563	16.7	563	16.7
444.namd	578	13.9	578	13.9	578	13.9	577	13.9	577	13.9	577	13.9
447.dealII	591	19.4	591	19.4	591	19.4	528	21.7	528	21.7	528	21.7
450.soplex	503	16.6	502	16.6	502	16.6	504	16.6	504	16.5	503	16.6
453.povray	276	19.3	276	19.3	276	19.3	215	24.7	215	24.7	215	24.7
454.calculix	670	12.3	670	12.3	670	12.3	671	12.3	670	12.3	670	12.3
459.GemsFDTD	733	14.5	733	14.5	733	14.5	733	14.5	733	14.5	733	14.5
465.tonto	654	15.1	653	15.1	654	15.1	638	15.4	639	15.4	639	15.4
470.lbm	692	19.9	692	19.9	692	19.9	648	21.2	648	21.2	649	21.2
481.wrf	562	19.9	562	19.9	562	19.9	562	19.9	562	19.9	562	19.9
482.sphinx3	799	24.4	799	24.4	798	24.4	795	24.5	796	24.5	796	24.5

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://usa.asus.com/products.aspx?l1=3&l2=11&l3=534&l4=0&model=1645&modelmenu=1
 The system bus runs at 1333 MHz
 System has a discrete gfx card - Asus EN8800GTX/HTDP/768M w/ nVidia 8800GTX
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

-fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

C++ benchmarks:

-fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

-fast /F950000000

Benchmarks using both Fortran and C:

-fast /F950000000

Peak Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Oa /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
470.lbm:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qscalar-rep- -Qprefetch /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
482.sphinx3:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Oa -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
447.dealII:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
450.soplex:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE
453.povray:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-fast /F950000000
416.gamess:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F950000000
434.zeusmp:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qprec_div- -Qunroll0 -Qscalar-rep- /F950000000
437.leslie3d:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000
459.GemsFDTD:	basepeak = yes
465.tonto:	Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:	-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Oa /F950000000
436.cactusADM:	basepeak = yes
454.calculix:	-fast /F950000000
481.wrf:	Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.
