SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ASUS Computer International (Test Sponsor: Intel Corporation)

ASUS P5K3 motherboard (Intel Core 2 Duo E6850)

CPU2006 license: 13 Test date: Jul-2007
Test sponsor: Intel Corporation Hardware Availability: Jul-2007
Tested by: Intel Corporation Software Availability: Aug-2006

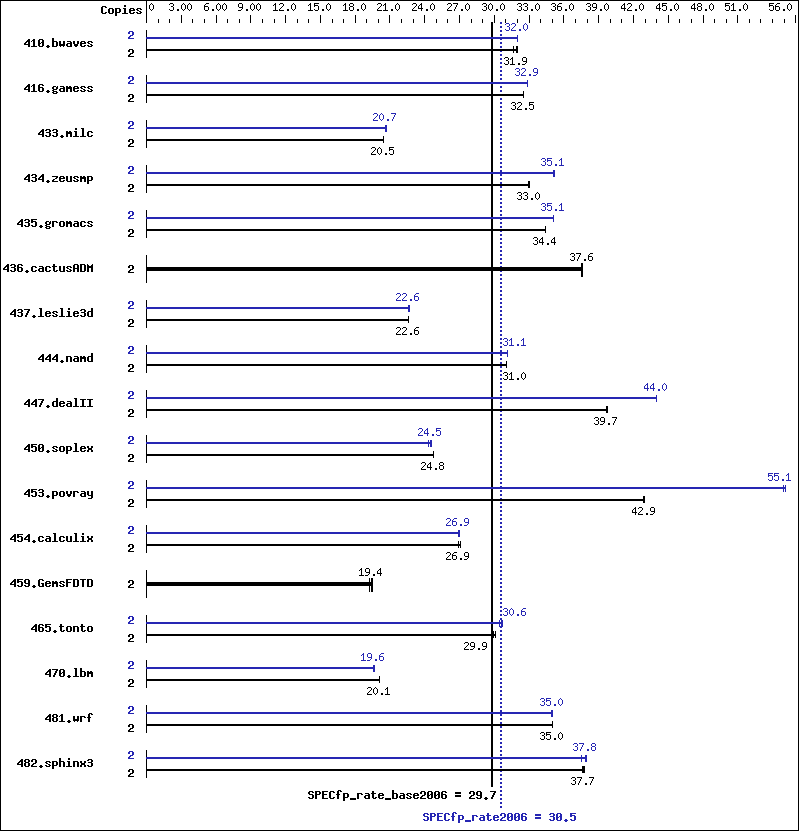

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E6850
CPU Characteristics: 3.00 GHz, 1333 MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB ELPIDA PC3-8500U-7-00-BP DDR3-1066
7-7-7-20)
Disk Subsystem: Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ
SATA II
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 858 31.7 851 31.9 848 32.0 2 848 32.0 849 32.0 849 32.0
416.gamess 2 1204 32.5 1206 32.5 1206 32.5 2 1191 32.9 1192 32.9 1191 32.9
433.milc 2 897 20.5 897 20.5 898 20.5 2 889 20.7 888 20.7 889 20.6
434.zeusmp 2 550 33.1 553 32.9 551 33.0 2 518 35.1 518 35.1 518 35.2
435.gromacs 2 415 34.4 415 34.4 415 34.4 2 407 35.1 407 35.1 407 35.1
436.cactusADM 2 636 37.6 636 37.6 636 37.6 2 636 37.6 636 37.6 636 37.6
437.leslie3d 2 833 22.6 833 22.6 833 22.6 2 830 22.6 833 22.6 832 22.6
444.namd 2 517 31.0 517 31.1 517 31.0 2 516 31.1 515 31.1 516 31.1
447.dealII 2 577 39.7 576 39.7 576 39.7 2 520 44.0 521 44.0 520 44.0
450.soplex 2 675 24.7 673 24.8 674 24.8 2 679 24.6 686 24.3 680 24.5
453.povray 2 248 42.9 248 42.9 248 42.9 2 193 55.1 193 55.1 194 55.0
454.calculix 2 613 26.9 610 27.0 613 26.9 2 610 27.0 613 26.9 612 26.9
459.GemsFDTD 2 1088 19.5 1092 19.4 1101 19.3 2 1088 19.5 1092 19.4 1101 19.3
465.tonto 2 658 29.9 653 30.1 658 29.9 2 640 30.7 646 30.4 642 30.6
470.lbm 2 1367 20.1 1367 20.1 1367 20.1 2 1401 19.6 1401 19.6 1400 19.6
481.wrf 2 639 35.0 639 35.0 639 35.0 2 640 34.9 638 35.0 637 35.0
482.sphinx3 2 1035 37.7 1032 37.8 1038 37.6 2 1027 38.0 1038 37.6 1030 37.8

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://usa.asus.com/products.aspx?l1=3&l2=11&l3=534&l4=0&model=1645&modelmenu=1
 The system bus runs at 1333 MHz
 System has a discrete gfx card - Asus EN8800GTX/HTDP/768M w/ nVidia 8800GTX
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:48:43 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
