SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard X7DB3

CPU2006 license: 001176 Test date: Jul-2007
Test sponsor: Supermicro Hardware Availability: May-2007
Tested by: Supermicro Software Availability: May-2007

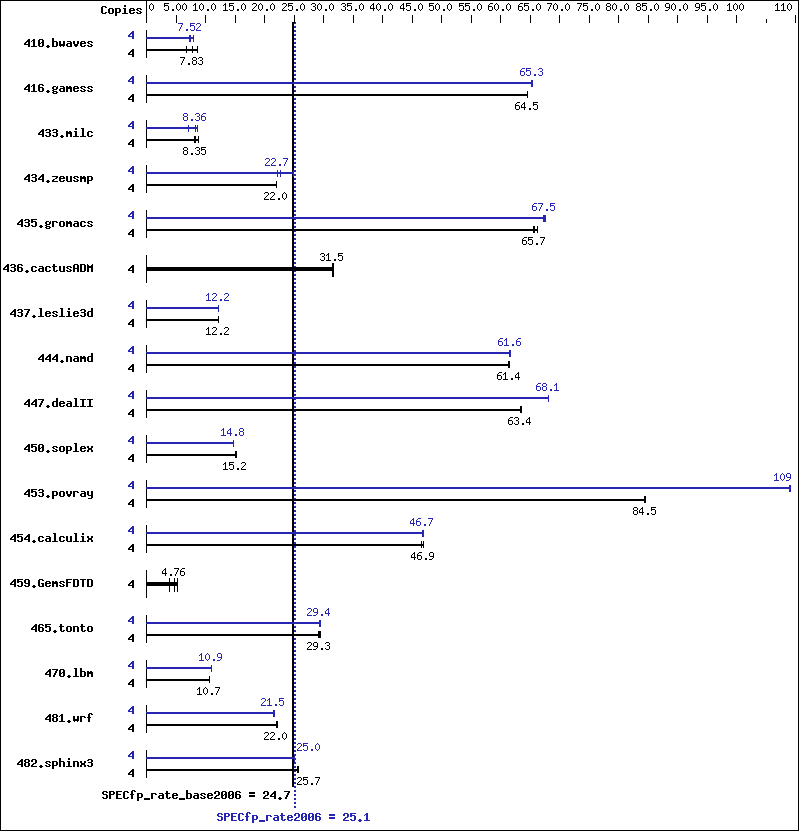

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.0GHz 1333MHz System Bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 X 1GB ECC PC2-4200 FBDIMM)
Disk Subsystem: 1 X WD1600JB IDE 7200 RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition W/ SP1
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 6242 8.71 8080 6.73 6945 7.83 4 7481 7.27 6812 7.98 7230 7.52
416.gamess 4 1213 64.6  1214 64.5  1215 64.5  4 1200 65.3  1198 65.4  1199 65.3
433.milc 4 4400 8.35 4142 8.87 4520 8.12 4 5210 7.05 4393 8.36 4239 8.66
434.zeusmp 4 1650 22.1  1653 22.0  1655 22.0  4 1457 25.0  1605 22.7  1641 22.2
435.gromacs 4 435 65.7  435 65.6  431 66.2  4 423 67.5  425 67.2  423 67.6
436.cactusADM 4 1513 31.6  1520 31.4  1516 31.5  4 1513 31.6  1520 31.4  1516 31.5
437.leslie3d 4 3072 12.2  3071 12.2  3071 12.2  4 3072 12.2  3071 12.2  3072 12.2
444.namd 4 522 61.4  522 61.4  522 61.4  4 521 61.6  521 61.6  521 61.6
447.dealII 4 721 63.5  722 63.3  722 63.4  4 672 68.1  672 68.1  671 68.2
450.soplex 4 2199 15.2  2200 15.2  2202 15.2  4 2257 14.8  2257 14.8  2256 14.8
453.povray 4 252 84.5  252 84.5  252 84.4  4 195 109    195 109    195 109
454.calculix 4 707 46.7  703 47.0  704 46.9  4 707 46.7  704 46.9  707 46.7
459.GemsFDTD 4 10944 3.88 8922 4.76 8126 5.22 4 10944 3.88 8922 4.76 8126 5.22
465.tonto 4 1344 29.3  1336 29.5  1351 29.1  4 1340 29.4  1337 29.4  1341 29.3
470.lbm 4 5119 10.7  5119 10.7  5121 10.7  4 5022 10.9  5023 10.9  5025 10.9
481.wrf 4 2033 22.0  2012 22.2  2031 22.0  4 2079 21.5  2052 21.8  2082 21.5
482.sphinx3 4 3031 25.7  3026 25.8  3038 25.7  4 3112 25.0  3114 25.0  3111 25.1

General Notes

 Tested systems can be used with CSE-825TQ-R700LPV case,
 Product description located as of
 http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB3.cfm
 The system bus runs at 1333 MHz
 submit was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.18.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.18.xml.
