SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Bb-6
(Intel Xeon processor X5355)

SPECfp®2006 = 16.6

CPU2006 license: 9006 Test date: Jul-2007
Test sponsor: NEC Corporation Hardware Availability: Jan-2007
Tested by: NEC Corporation Software Availability: Apr-2007

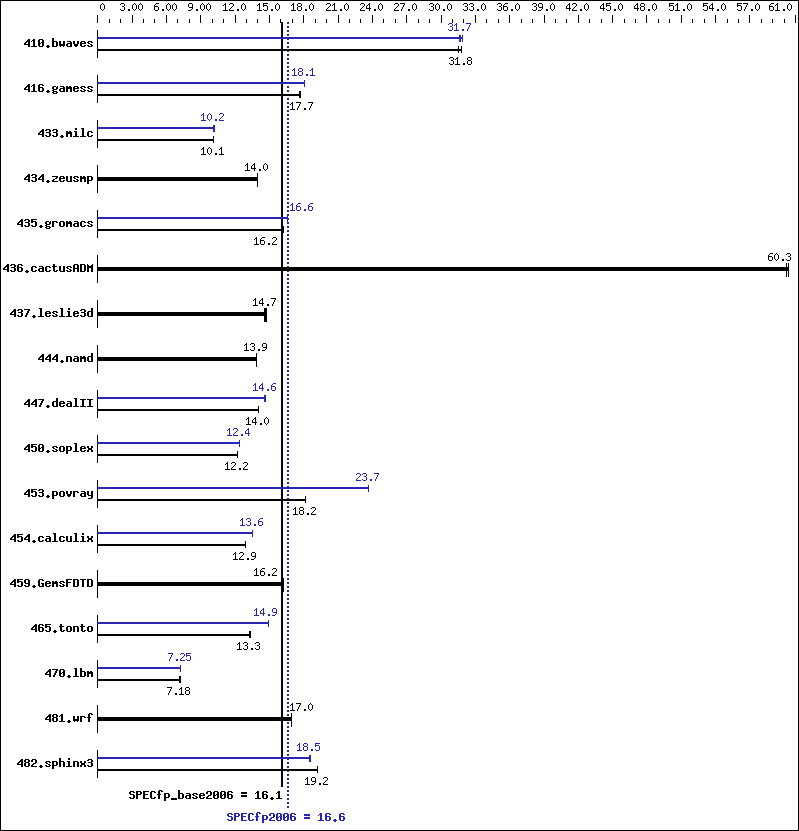

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003, Standard x64 Edition
Compiler: Intel C++ Compiler for EM64T version 9.1
Build 20070322, Package-ID W_CC_C_9.1.037
Intel Fortran Compiler for EM64T version 9.1
Build 20070322, Package-ID W_FC_C_9.1.037
Microsoft Visual Studio 2005 (libr. & linker)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 428 31.8  427 31.8  431 31.6  430 31.6  429 31.7  427 31.8
416.gamess 1110 17.6  1107 17.7  1109 17.7  1085 18.0  1085 18.1  1084 18.1
433.milc 904 10.2  906 10.1  906 10.1  902 10.2  906 10.1  904 10.2
434.zeusmp 652 14.0  652 14.0  652 13.9  652 14.0  652 14.0  652 13.9
435.gromacs 440 16.2  439 16.2  439 16.3  430 16.6  430 16.6  430 16.6
436.cactusADM 198 60.2  198 60.4  198 60.3  198 60.2  198 60.4  198 60.3
437.leslie3d 638 14.7  639 14.7  645 14.6  638 14.7  639 14.7  645 14.6
444.namd 579 13.9  578 13.9  578 13.9  579 13.9  578 13.9  578 13.9
447.dealII 815 14.0  814 14.1  815 14.0  785 14.6  782 14.6  782 14.6
450.soplex 685 12.2  684 12.2  685 12.2  675 12.3  673 12.4  672 12.4
453.povray 293 18.2  293 18.2  293 18.2  225 23.7  225 23.7  225 23.7
454.calculix 638 12.9  637 12.9  637 13.0  608 13.6  608 13.6  608 13.6
459.GemsFDTD 652 16.3  654 16.2  653 16.2  652 16.3  654 16.2  653 16.2
465.tonto 740 13.3  738 13.3  740 13.3  661 14.9  660 14.9  660 14.9
470.lbm 1912 7.18 1911 7.19 1913 7.18 1905 7.21 1894 7.25 1896 7.25
481.wrf 659 16.9  659 17.0  659 17.0  659 16.9  659 17.0  659 17.0
482.sphinx3 1015 19.2  1015 19.2  1017 19.2  1053 18.5  1051 18.6  1051 18.5

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
416.gamess:  -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-cpu2006-ic91-win-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-cpu2006-ic91-win-flags.xml.
