SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS41 (AMD Opteron 8220)

CPU2006 license: 11 Test date: Jul-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Mar-2007

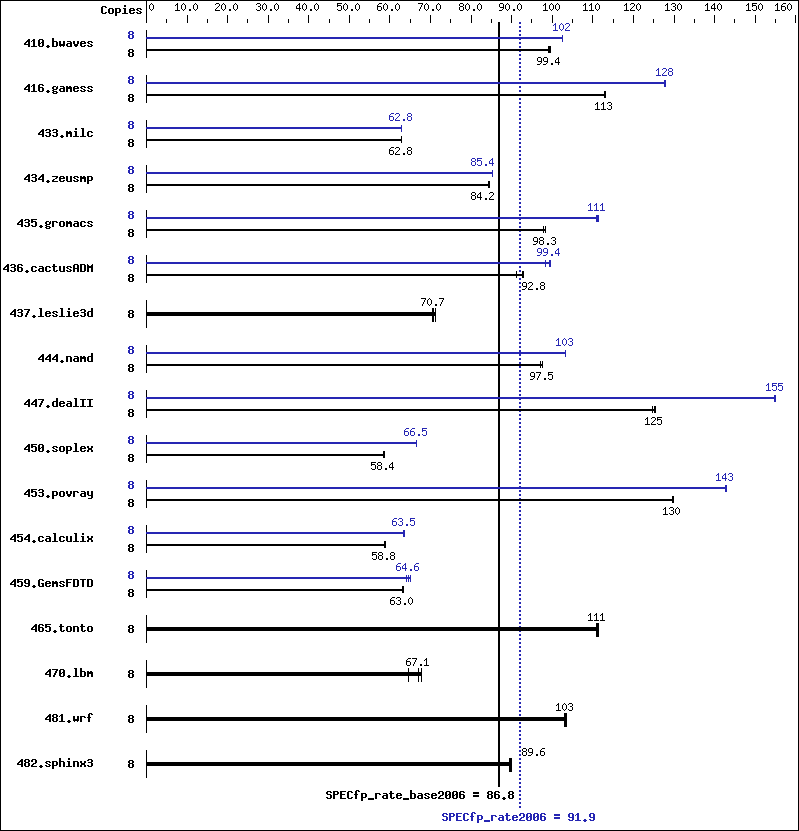

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8220
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1, 2, 3, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1093 99.5 1094 99.4 1097 99.1 8 1060 103   1061 102   1062 102
416.gamess 8 1387 113   1386 113   1388 113   8 1224 128   1226 128   1224 128
433.milc 8 1170 62.7 1170 62.8 1169 62.8 8 1169 62.8 1169 62.8 1169 62.8
434.zeusmp 8 865 84.2 860 84.6 865 84.2 8 854 85.2 853 85.4 853 85.4
435.gromacs 8 584 97.8 581 98.3 581 98.4 8 515 111   513 111   513 111
436.cactusADM 8 1047 91.3 1030 92.9 1030 92.8 8 971 98.4 960 99.6 962 99.4
437.leslie3d 8 1064 70.7 1057 71.2 1067 70.5 8 1064 70.7 1057 71.2 1067 70.5
444.namd 8 658 97.5 658 97.5 660 97.2 8 621 103   621 103   621 103
447.dealII 8 731 125   733 125   729 125   8 591 155   590 155   590 155
450.soplex 8 1138 58.6 1143 58.4 1142 58.4 8 1003 66.5 1001 66.7 1003 66.5
453.povray 8 328 130   328 130   327 130   8 298 143   298 143   298 143
454.calculix 8 1122 58.8 1123 58.8 1125 58.7 8 1039 63.5 1039 63.5 1040 63.4
459.GemsFDTD 8 1343 63.2 1347 63.0 1346 63.0 8 1315 64.6 1325 64.1 1302 65.2
465.tonto 8 707 111   708 111   711 111   8 707 111   708 111   711 111
470.lbm 8 1703 64.6 1639 67.1 1625 67.7 8 1703 64.6 1639 67.1 1625 67.7
481.wrf 8 867 103   865 103   864 103   8 867 103   865 103   864 103
482.sphinx3 8 1741 89.6 1735 89.9 1739 89.6 8 1741 89.6 1735 89.9 1739 89.6

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_TABLE_WORKAROUND
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -INLINE:aggressive=on   -LNO:opt=0   -OPT:alias=disjoint   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
