SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System i 570 (4.7 GHz, 8 core)

CPU2006 license: 11 Test date: May-2007
Test sponsor: IBM Corporation Hardware Availability: Sep-2007
Tested by: IBM Corporation Software Availability: Jun-2007

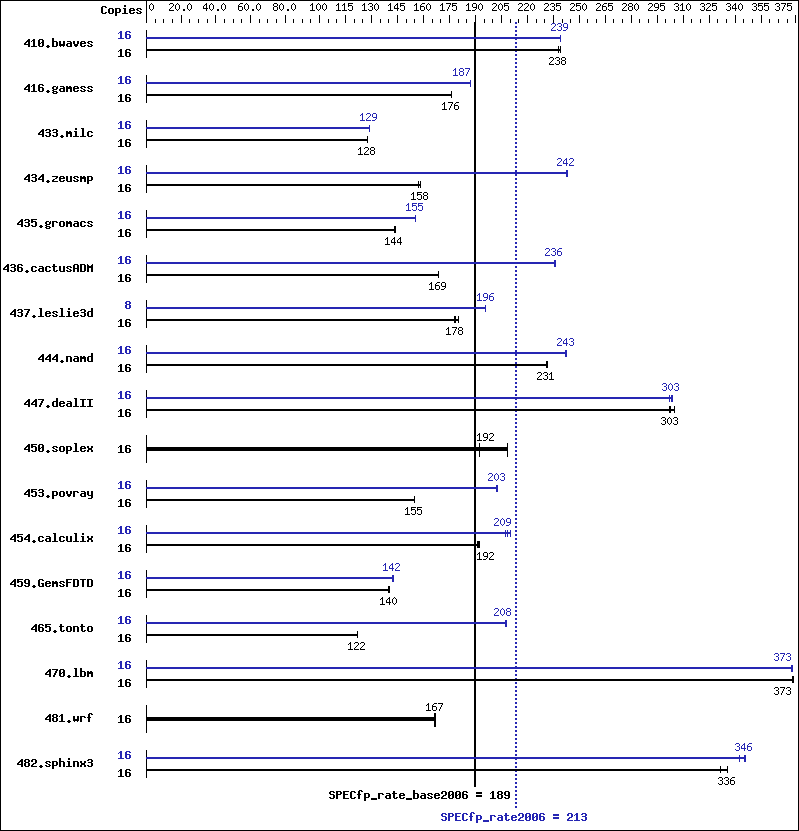

Benchmark results graph
Hardware
CPU Name: POWER6
CPU Characteristics:
CPU MHz: 4700
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,12,16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 64 GB (32x2 GB) DDR2 667 MHz
Disk Subsystem: 2x73 GB 2x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 9.0 for AIX
XL Fortran Enterprise Edition Version 11.1 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: --

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 910 239 914 238 913 238 16 909 239 909 239 909 239
416.gamess 16 1778 176 1779 176 1777 176 16 1673 187 1674 187 1675 187
433.milc 16 1151 128 1150 128 1150 128 16 1138 129 1138 129 1139 129
434.zeusmp 16 926 157 920 158 919 158 16 601 242 599 243 601 242
435.gromacs 16 797 143 796 144 796 144 16 736 155 736 155 736 155
436.cactusADM 16 1134 169 1133 169 1134 169 16 811 236 810 236 811 236
437.leslie3d 16 836 180 843 178 846 178 8 384 196 384 196 384 196
444.namd 16 555 231 555 231 555 231 16 531 242 529 243 529 243
447.dealII 16 600 305 606 302 605 303 16 604 303 603 304 605 302
450.soplex 16 694 192 702 190 639 209 16 694 192 702 190 639 209
453.povray 16 550 155 549 155 549 155 16 421 202 420 203 420 203
454.calculix 16 690 191 687 192 689 192 16 628 210 633 209 637 207
459.GemsFDTD 16 1212 140 1210 140 1213 140 16 1196 142 1192 142 1195 142
465.tonto 16 1292 122 1292 122 1292 122 16 759 207 757 208 757 208
470.lbm 16 590 373 588 374 589 373 16 589 373 590 373 589 373
481.wrf 16 1076 166 1072 167 1070 167 16 1076 166 1072 167 1070 167
482.sphinx3 16 941 331 929 336 929 336 16 910 343 902 346 902 346

General Notes

 AIX 5L V5.3 updated with the 5300-06 Technology Level.
 See flags file of details on following settings.
 all ulimits set to unlimited
 Envionment variables set before executing benchmarks:
   MALLOCOPTIONS=pool
   MEMORY_AFFINITY=MCM
   XLFRTEOPTS=intrinthds=1
 System set to "Enhanced" mode when defining partition on HMC
 3072 16M pages defined on systems with vmo command
 fdpr binary optimization tool used for
   410.bwaves 434.zeusmp 453.povray 470.lbm 482.sphinx3
 submit used to bind benchmark to a processor using "bindprocessor"
 The "IBM System p 570" and "IBM System i 570" are electroniclly equivalent.
 The results have been measured on the "IBM System p 570" model.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata

Fortran benchmarks:

 -O5   -qlargepage   -qsmallstack=dynlenonheap   -blpdata

Benchmarks using both Fortran and C:

 -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -blpdata

Base Other Flags

C benchmarks:

 -qlanglvl=extc99   -bmaxdata:0x40000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x50000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks:

 -bmaxdata:0x60000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qlanglvl=extc99   -bmaxdata:0x60000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata
470.lbm:  -O5   -qlargepage   -D_ILS_MACROS   -q64   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
447.dealII:  -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qalign=natural   -blpdata

Fortran benchmarks:

410.bwaves:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -blpdata
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -blpdata
437.leslie3d:  -O5   -qlargepage   -q64   -blpdata
459.GemsFDTD:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -blpdata
465.tonto:  Same as 416.gamess

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
436.cactusADM:  -D_ILS_MACROS   -blpdata
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -blpdata
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks (except as noted below):

 -qlanglvl=extc99   -qipa=noobject   -qipa=threads   -qsuppress=1500-036
433.milc:  -qlanglvl=extc99   -bmaxdata:0x40000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -bmaxdata:0x50000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036
444.namd:  -qipa=noobject   -qipa=threads   -qsuppress=1500-036
453.povray:  -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -bmaxdata:0x50000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
416.gamess:  -bmaxdata:0x40000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
434.zeusmp:  -bmaxdata:0x40000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
437.leslie3d:  -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
465.tonto:  -bmaxdata:0x20000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C (except as noted below):

 -qlanglvl=extc99   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
436.cactusADM:  -qlanglvl=extc99   -bmaxdata:0x60000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
481.wrf:  -qlanglvl=extc99   -bmaxdata:0x60000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.12.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.12.xml.
