SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System i 570 (4.7 GHz, 1 core)

SPECfp®2006 = 22.3

CPU2006 license: 11 Test date: May-2007
Test sponsor: IBM Corporation Hardware Availability: Sep-2007
Tested by: IBM Corporation Software Availability: Jun-2007

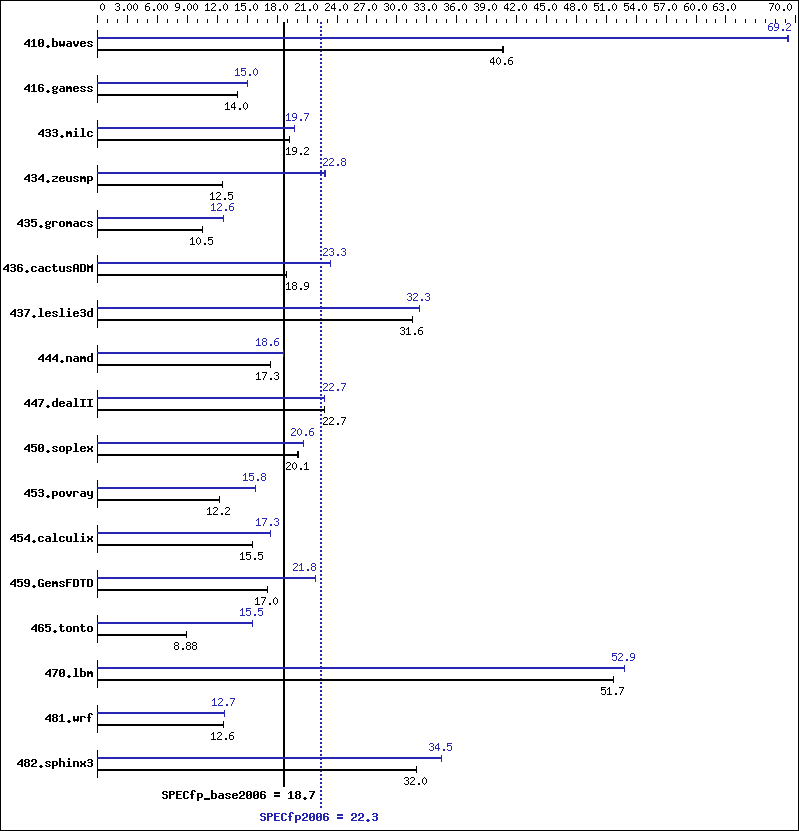

Benchmark results graph
Hardware
CPU Name: POWER6
CPU Characteristics:
CPU MHz: 4700
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 4,8,12,16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 16 GB (8x2 GB) DDR2 667 MHz
Disk Subsystem: 1x73 GB 1x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 9.0 for AIX
XL Fortran Enterprise Edition Version 11.1 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: --

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 334 40.6  334 40.6  334 40.6  197 69.1 196 69.2 196 69.2
416.gamess 1395 14.0  1395 14.0  1395 14.0  1306 15.0 1306 15.0 1306 15.0
433.milc 479 19.2  479 19.2  479 19.2  466 19.7 466 19.7 466 19.7
434.zeusmp 727 12.5  728 12.5  727 12.5  399 22.8 399 22.8 399 22.8
435.gromacs 679 10.5  679 10.5  679 10.5  565 12.6 565 12.6 565 12.6
436.cactusADM 633 18.9  633 18.9  633 18.9  512 23.3 513 23.3 512 23.3
437.leslie3d 298 31.6  298 31.6  298 31.6  291 32.3 291 32.3 291 32.3
444.namd 462 17.3  462 17.3  462 17.3  430 18.6 430 18.6 430 18.6
447.dealII 503 22.7  503 22.7  503 22.7  503 22.7 503 22.7 503 22.7
450.soplex 416 20.1  415 20.1  415 20.1  404 20.6 404 20.6 404 20.7
453.povray 435 12.2  435 12.2  435 12.2  337 15.8 337 15.8 337 15.8
454.calculix 532 15.5  532 15.5  532 15.5  476 17.3 476 17.3 477 17.3
459.GemsFDTD 623 17.0  623 17.0  624 17.0  486 21.8 486 21.8 486 21.8
465.tonto 1107 8.88 1108 8.88 1108 8.88 635 15.5 635 15.5 635 15.5
470.lbm 266 51.7  266 51.7  266 51.7  260 52.9 260 52.9 260 52.9
481.wrf 884 12.6  884 12.6  884 12.6  882 12.7 882 12.7 882 12.7
482.sphinx3 609 32.0  609 32.0  609 32.0  566 34.5 566 34.5 566 34.4

General Notes

 AIX 5L V5.3 updated with the 5300-06 Technology Level.
 See flags file of details on following settings.
 all ulimits set to unlimited
 Envionment variables set before executing benchmarks:
   MALLOCOPTIONS=pool
   MEMORY_AFFINITY=MCM
   XLFRTEOPTS=intrinthds=1
 System set to "Enhanced" mode when defining partition on HMC
 Speed run on 1 core partition defined on HMC,
 768 16M pages defined on systems with vmo command.
 fdpr binary optimization tool used for
   410.bwaves 434.zeusmp 453.povray 470.lbm 482.sphinx3
 submit used to bind benchmark to a processor using "bindprocessor"
 The "IBM System p 570" and "IBM System i 570" are electroniclly equivalent.
 The results have been measured on the "IBM System p 570" model.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata

Fortran benchmarks:

 -O5   -qlargepage   -qsmallstack=dynlenonheap   -blpdata

Benchmarks using both Fortran and C:

 -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -blpdata

Base Other Flags

C benchmarks:

 -qlanglvl=extc99   -bmaxdata:0x40000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x50000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks:

 -bmaxdata:0x60000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qlanglvl=extc99   -bmaxdata:0x60000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata
470.lbm:  -O5   -qlargepage   -D_ILS_MACROS   -q64   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
447.dealII:  -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata
450.soplex:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qalign=natural   -blpdata

Fortran benchmarks:

410.bwaves:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -blpdata
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -blpdata
437.leslie3d:  -O5   -qlargepage   -q64   -blpdata
459.GemsFDTD:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -blpdata
465.tonto:  Same as 416.gamess

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
436.cactusADM:  -D_ILS_MACROS   -blpdata
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -blpdata
481.wrf:  -O5   -qlargepage   -D_ILS_MACROS   -blpdata

Peak Other Flags

C benchmarks (except as noted below):

 -qlanglvl=extc99   -qipa=noobject   -qipa=threads   -qsuppress=1500-036
433.milc:  -qlanglvl=extc99   -bmaxdata:0x40000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -qipa=noobject   -qipa=threads   -qsuppress=1500-036
447.dealII:  -bmaxdata:0x50000000   -qipa=noobject   -qipa=threads   -qsuppress=1500-036
450.soplex:  -bmaxdata:0x40000000   -qstrict   -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -bmaxdata:0x50000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
416.gamess:  -bmaxdata:0x40000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
434.zeusmp:  -bmaxdata:0x40000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
437.leslie3d:  -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
465.tonto:  -bmaxdata:0x20000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C (except as noted below):

 -qlanglvl=extc99   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
436.cactusADM:  -qlanglvl=extc99   -bmaxdata:0x60000000   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036
481.wrf:  -qlanglvl=extc99   -bmaxdata:0x30000000   -qalias=nostd   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.12.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.12.xml.
