| CPU2006 license: | 001176 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.66GHz 1333MHz System Bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | 250GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

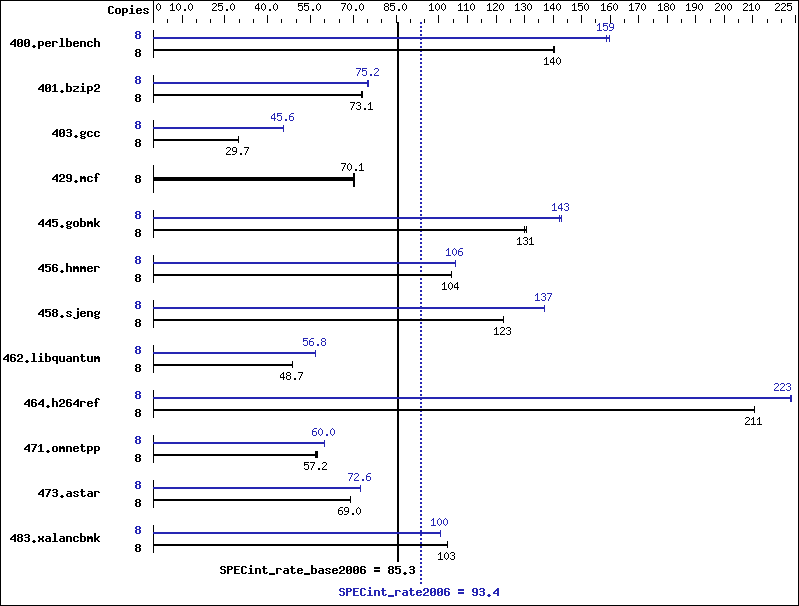

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 558 | 140 | 558 | 140 | 556 | 140 | 8 | 492 | 159 | 492 | 159 | 489 | 160 |
| 401.bzip2 | 8 | 1056 | 73.1 | 1057 | 73.0 | 1054 | 73.3 | 8 | 1030 | 74.9 | 1025 | 75.3 | 1026 | 75.2 |
| 403.gcc | 8 | 2165 | 29.7 | 2163 | 29.8 | 2167 | 29.7 | 8 | 1411 | 45.6 | 1413 | 45.6 | 1410 | 45.7 |
| 429.mcf | 8 | 1042 | 70.0 | 1038 | 70.3 | 1040 | 70.1 | 8 | 1042 | 70.0 | 1038 | 70.3 | 1040 | 70.1 |
| 445.gobmk | 8 | 643 | 131 | 646 | 130 | 642 | 131 | 8 | 588 | 143 | 587 | 143 | 590 | 142 |
| 456.hmmer | 8 | 715 | 104 | 715 | 104 | 714 | 104 | 8 | 705 | 106 | 706 | 106 | 706 | 106 |
| 458.sjeng | 8 | 789 | 123 | 789 | 123 | 790 | 123 | 8 | 707 | 137 | 707 | 137 | 706 | 137 |
| 462.libquantum | 8 | 3401 | 48.7 | 3401 | 48.7 | 3402 | 48.7 | 8 | 2917 | 56.8 | 2917 | 56.8 | 2916 | 56.8 |
| 464.h264ref | 8 | 841 | 211 | 841 | 210 | 841 | 211 | 8 | 793 | 223 | 793 | 223 | 792 | 224 |
| 471.omnetpp | 8 | 873 | 57.3 | 882 | 56.7 | 874 | 57.2 | 8 | 833 | 60.0 | 834 | 60.0 | 834 | 60.0 |
| 473.astar | 8 | 815 | 68.9 | 814 | 69.0 | 814 | 69.0 | 8 | 774 | 72.6 | 774 | 72.6 | 773 | 72.7 |
| 483.xalancbmk | 8 | 536 | 103 | 537 | 103 | 536 | 103 | 8 | 550 | 100 | 550 | 100 | 550 | 100 |
General Notes
Tested systems can be used with CSE-808TQ-980 case, Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DBT-INF.cfm The system bus runs at 1333 MHz "start /b /wait /affinity" used to bind processes to CPUs.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
