SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX120, Intel Xeon processor 3070, 2.66
GHz

CPU2006 license: 22 Test date: Jun-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2007
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

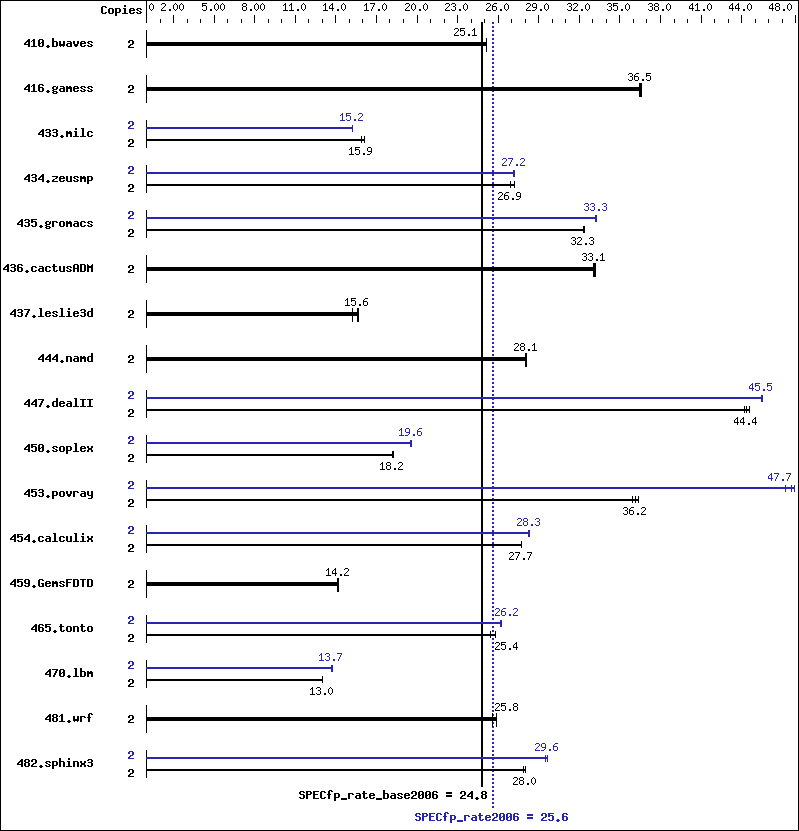

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3070
CPU Characteristics: 1067 MHz system bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4,
with ECC)
Disk Subsystem: Seagate ST973401SS (SAS, 73GB 10000rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1083 25.1 1081 25.1 1081 25.2 2 1083 25.1 1081 25.1 1081 25.2
416.gamess 2 1073 36.5 1074 36.5 1071 36.6 2 1073 36.5 1074 36.5 1071 36.6
433.milc 2 1142 16.1 1154 15.9 1153 15.9 2 1204 15.3 1205 15.2 1206 15.2
434.zeusmp 2 669 27.2 676 26.9 677 26.9 2 670 27.2 669 27.2 671 27.1
435.gromacs 2 441 32.4 442 32.3 442 32.3 2 429 33.3 429 33.3 430 33.2
436.cactusADM 2 722 33.1 723 33.1 719 33.2 2 722 33.1 723 33.1 719 33.2
437.leslie3d 2 1200 15.7 1232 15.3 1204 15.6 2 1200 15.7 1232 15.3 1204 15.6
444.namd 2 572 28.0 571 28.1 572 28.1 2 572 28.0 571 28.1 572 28.1
447.dealII 2 513 44.6 518 44.2 516 44.4 2 503 45.5 503 45.5 502 45.6
450.soplex 2 914 18.3 917 18.2 915 18.2 2 850 19.6 854 19.5 853 19.6
453.povray 2 296 35.9 294 36.2 292 36.4 2 223 47.7 222 47.9 225 47.2
454.calculix 2 595 27.7 596 27.7 596 27.7 2 583 28.3 583 28.3 584 28.2
459.GemsFDTD 2 1495 14.2 1498 14.2 1500 14.1 2 1495 14.2 1498 14.2 1500 14.1
465.tonto 2 763 25.8 775 25.4 774 25.4 2 751 26.2 750 26.2 751 26.2
470.lbm 2 2107 13.0 2106 13.0 2108 13.0 2 2001 13.7 2005 13.7 2006 13.7
481.wrf 2 863 25.9 873 25.6 865 25.8 2 863 25.9 873 25.6 865 25.8
482.sphinx3 2 1397 27.9 1393 28.0 1391 28.0 2 1315 29.6 1315 29.6 1322 29.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
