SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Rg-1
(Intel Xeon processor 5160)

CPU2006 license: 9006 Test date: Jun-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Jun-2007

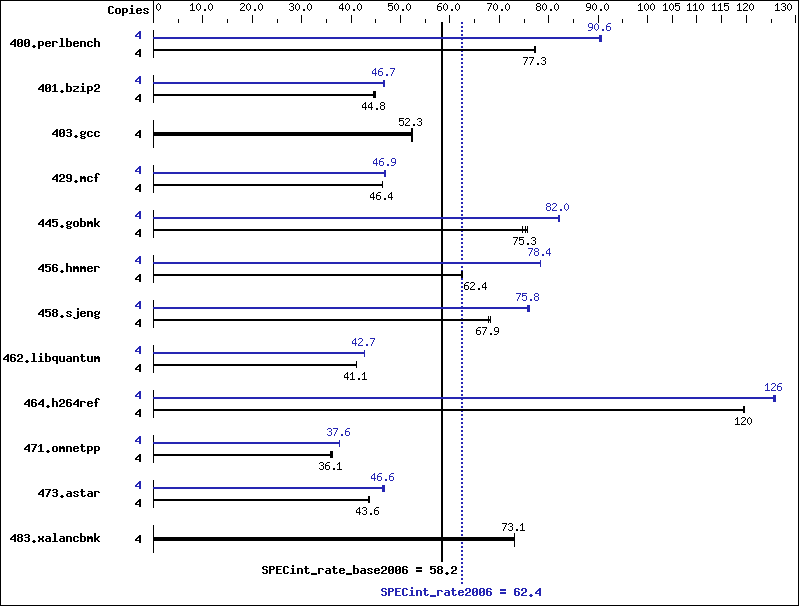

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4MB L2, 1333MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 507 77.1 506 77.3 505 77.4 4 432 90.6 433 90.2 431 90.6
401.bzip2 4 862 44.8 861 44.8 866 44.6 4 826 46.7 828 46.6 825 46.8
403.gcc 4 617 52.2 616 52.3 614 52.5 4 617 52.2 616 52.3 614 52.5
429.mcf 4 788 46.3 786 46.4 787 46.4 4 777 46.9 780 46.8 778 46.9
445.gobmk 4 562 74.7 557 75.3 555 75.6 4 512 81.9 511 82.2 512 82.0
456.hmmer 4 598 62.4 597 62.5 598 62.4 4 476 78.4 476 78.4 476 78.4
458.sjeng 4 714 67.8 710 68.2 713 67.9 4 640 75.7 636 76.1 638 75.8
462.libquantum 4 2019 41.1 2018 41.1 2018 41.1 4 1941 42.7 1942 42.7 1944 42.6
464.h264ref 4 740 120   741 119   740 120   4 705 126   705 126   703 126
471.omnetpp 4 696 35.9 692 36.1 693 36.1 4 665 37.6 665 37.6 664 37.6
473.astar 4 644 43.6 643 43.7 644 43.6 4 601 46.7 606 46.3 602 46.6
483.xalancbmk 4 378 73.1 378 73.1 378 73.0 4 378 73.1 378 73.1 378 73.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

 The Express5800/120Rg-1(Intel Xeon processor 5160) and
 the Express5800/120Ri-2(Intel Xeon processor 5160) models are electronically equivalent.
 The results have been measured on a Express5800/120Ri-2(Intel Xeon processor 5160) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.xml.
