SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Rg-1
(Intel Xeon processor 5160)

SPECint®2006 = 21.0

CPU2006 license: 9006 Test date: Jun-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Jun-2007

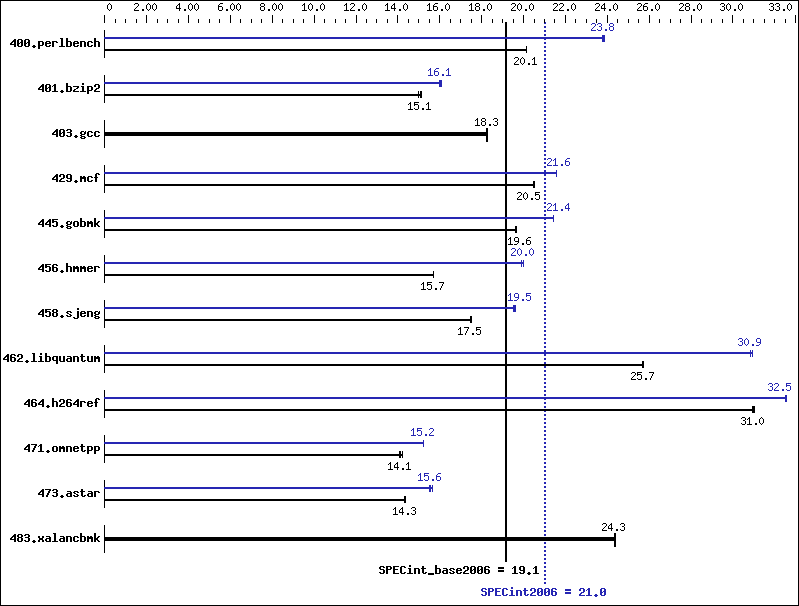

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4MB L2, 1333MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 485 20.2 485 20.1 485 20.1 409 23.9 410 23.8 411 23.8
401.bzip2 639 15.1 644 15.0 639 15.1 601 16.1 603 16.0 600 16.1
403.gcc 440 18.3 441 18.2 441 18.3 440 18.3 441 18.2 441 18.3
429.mcf 446 20.5 445 20.5 444 20.5 423 21.6 423 21.6 422 21.6
445.gobmk 534 19.7 534 19.6 534 19.6 489 21.5 489 21.4 489 21.4
456.hmmer 594 15.7 594 15.7 594 15.7 466 20.0 469 19.9 466 20.0
458.sjeng 691 17.5 692 17.5 693 17.5 617 19.6 619 19.5 620 19.5
462.libquantum 806 25.7 807 25.7 805 25.7 670 30.9 672 30.9 672 30.8
464.h264ref 716 30.9 714 31.0 714 31.0 681 32.5 681 32.5 679 32.6
471.omnetpp 440 14.2 443 14.1 443 14.1 410 15.2 410 15.2 411 15.2
473.astar 490 14.3 489 14.3 489 14.4 451 15.6 449 15.6 453 15.5
483.xalancbmk 283 24.3 283 24.4 283 24.3 283 24.3 283 24.4 283 24.3

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes

All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

 The Express5800/120Rg-1(Intel Xeon processor 5160) and
 the Express5800/120Ri-2(Intel Xeon processor 5160) models are electronically equivalent.
 The results have been measured on a Express5800/120Ri-2(Intel Xeon processor 5160) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-linux-flags.20090714.00.xml.
