SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Rg-1
(Intel Xeon processor 5160)

CPU2006 license: 9006 Test date: May-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

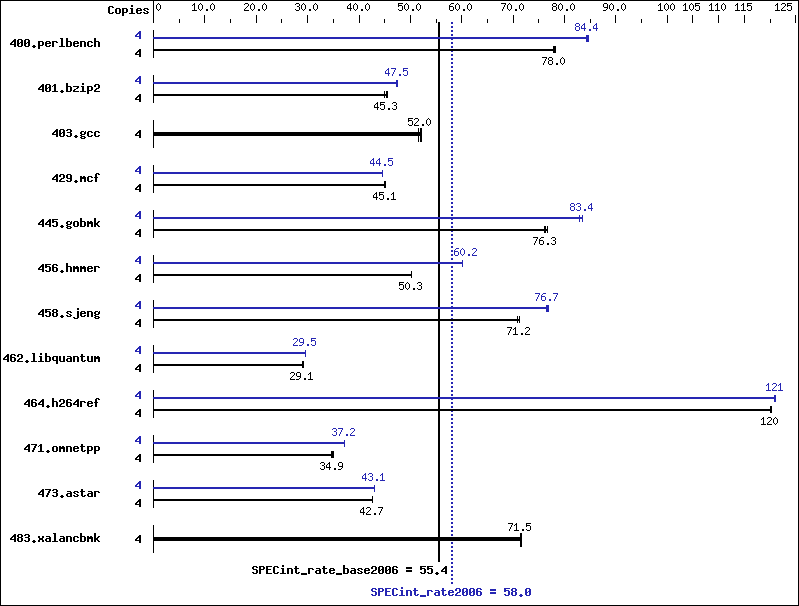

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4MB L2, 1333MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 502 77.9 499 78.3 501 78.0 4 463 84.4 462 84.7 464 84.2
401.bzip2 4 858 45.0 848 45.5 851 45.3 4 811 47.6 817 47.3 813 47.5
403.gcc 4 623 51.7 619 52.0 617 52.1 4 623 51.7 619 52.0 617 52.1
429.mcf 4 810 45.0 809 45.1 809 45.1 4 819 44.5 820 44.5 820 44.5
445.gobmk 4 547 76.7 552 76.0 550 76.3 4 503 83.4 506 83.0 502 83.5
456.hmmer 4 743 50.2 742 50.3 742 50.3 4 620 60.2 621 60.1 620 60.2
458.sjeng 4 683 70.8 680 71.2 679 71.2 4 633 76.5 631 76.7 630 76.8
462.libquantum 4 2846 29.1 2857 29.0 2853 29.1 4 2805 29.5 2804 29.6 2805 29.5
464.h264ref 4 737 120   737 120   736 120   4 732 121   731 121   732 121
471.omnetpp 4 716 34.9 715 34.9 720 34.7 4 672 37.2 672 37.2 672 37.2
473.astar 4 659 42.6 657 42.7 657 42.7 4 652 43.1 652 43.0 652 43.1
483.xalancbmk 4 385 71.6 386 71.5 386 71.4 4 385 71.6 386 71.5 386 71.4

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz
 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 The Express5800/120Rg-1 and the Express5800/120Ri-2 models are
 electronically equivalent.
 The results have been measured on a Express5800/120Ri-2 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib
456.hmmer:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib
462.libquantum:  /opt/intel/cce/9.1.049/bin/icc   -I/opt/intel/cce/9.1.049/include   -L/opt/intel/cce/9.1.049/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.20090714.xml.
