SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX100 S4, Intel Pentium D processor 945,
3.40 GHz

CPU2006 license: 22 Test date: Jun-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2006
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

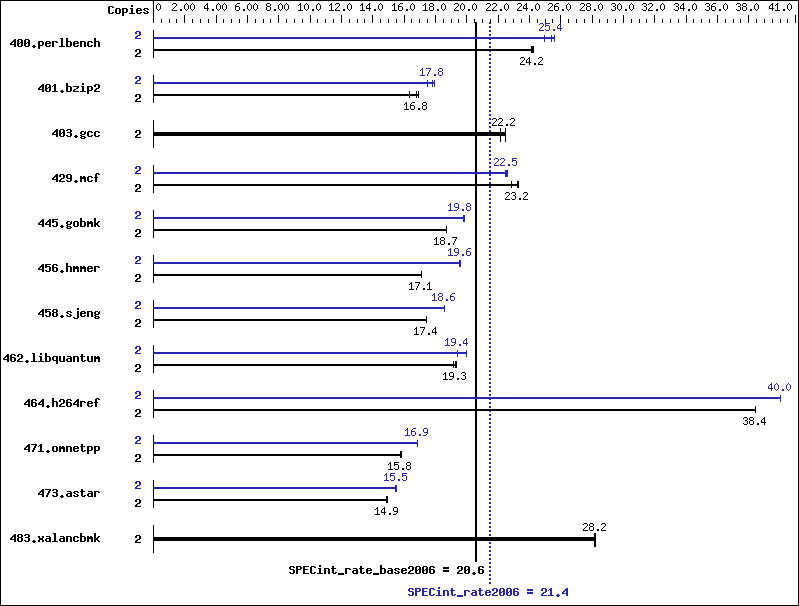

Benchmark results graph
Hardware
CPU Name: Intel Pentium D 945
CPU Characteristics: 800 MHz system bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4,
with ECC)
Disk Subsystem: Seagate ST373454SS (SAS, 73GB, 15000rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 808 24.2 810 24.1 806 24.2 2 768 25.4 783 25.0 763 25.6
401.bzip2 2 1149 16.8 1180 16.4 1141 16.9 2 1076 17.9 1105 17.5 1082 17.8
403.gcc 2 728 22.1 716 22.5 727 22.2 2 728 22.1 716 22.5 727 22.2
429.mcf 2 798 22.9 785 23.2 783 23.3 2 811 22.5 810 22.5 807 22.6
445.gobmk 2 1121 18.7 1120 18.7 1120 18.7 2 1058 19.8 1058 19.8 1058 19.8
456.hmmer 2 1090 17.1 1089 17.1 1089 17.1 2 952 19.6 955 19.5 954 19.6
458.sjeng 2 1388 17.4 1389 17.4 1388 17.4 2 1305 18.6 1301 18.6 1303 18.6
462.libquantum 2 2165 19.1 2142 19.3 2150 19.3 2 2071 20.0 2134 19.4 2134 19.4
464.h264ref 2 1152 38.4 1152 38.4 1151 38.4 2 1106 40.0 1105 40.1 1106 40.0
471.omnetpp 2 793 15.8 792 15.8 789 15.8 2 741 16.9 741 16.9 743 16.8
473.astar 2 944 14.9 940 14.9 938 15.0 2 904 15.5 907 15.5 907 15.5
483.xalancbmk 2 489 28.2 490 28.2 489 28.2 2 489 28.2 490 28.2 489 28.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
456.hmmer:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
462.libquantum:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:03:46 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 10 July 2007.
