CPU2006 license: | 22 | Test date: | Jun-2007 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Aug-2006 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Mar-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 7110M |
CPU Characteristics: | 800 MHz system bus |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16x2 GB DDR2 PC2-3200R, 1 rank, CAS 3-3-3, with ECC) |
Disk Subsystem: | Seagate ST973401SS (SAS, 73GB, 10000rpm) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Smart Heap Library, Version 8.1 |

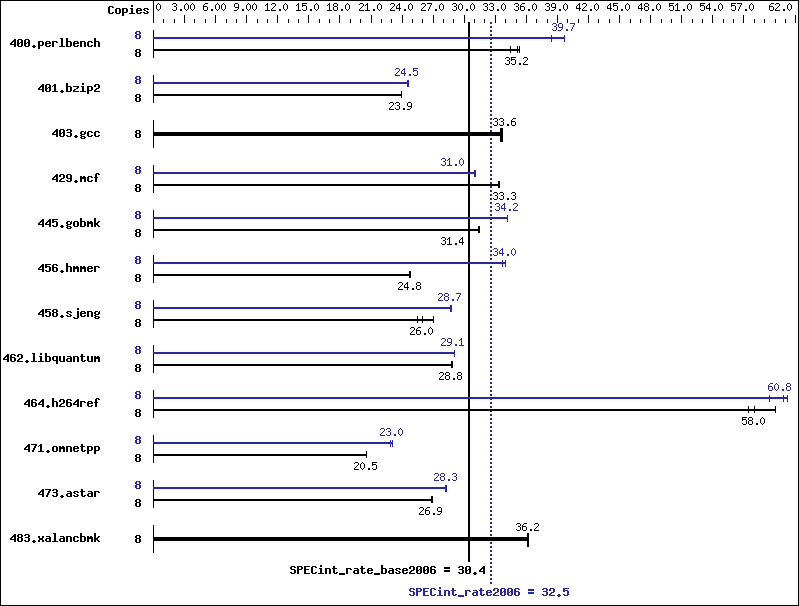

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 2269 | 34.4 | 2212 | 35.3 | 2222 | 35.2 | 8 | 1969 | 39.7 | 1970 | 39.7 | 2032 | 38.5 |
401.bzip2 | 8 | 3228 | 23.9 | 3228 | 23.9 | 3220 | 24.0 | 8 | 3137 | 24.6 | 3153 | 24.5 | 3152 | 24.5 |
403.gcc | 8 | 1922 | 33.5 | 1911 | 33.7 | 1919 | 33.6 | 8 | 1922 | 33.5 | 1911 | 33.7 | 1919 | 33.6 |
429.mcf | 8 | 2189 | 33.3 | 2186 | 33.4 | 2194 | 33.3 | 8 | 2355 | 31.0 | 2354 | 31.0 | 2347 | 31.1 |
445.gobmk | 8 | 2675 | 31.4 | 2664 | 31.5 | 2677 | 31.4 | 8 | 2459 | 34.1 | 2454 | 34.2 | 2457 | 34.2 |
456.hmmer | 8 | 3009 | 24.8 | 3004 | 24.8 | 3022 | 24.7 | 8 | 2195 | 34.0 | 2196 | 34.0 | 2214 | 33.7 |
458.sjeng | 8 | 3725 | 26.0 | 3799 | 25.5 | 3582 | 27.0 | 8 | 3371 | 28.7 | 3373 | 28.7 | 3367 | 28.7 |
462.libquantum | 8 | 5770 | 28.7 | 5745 | 28.9 | 5755 | 28.8 | 8 | 5699 | 29.1 | 5699 | 29.1 | 5696 | 29.1 |
464.h264ref | 8 | 2949 | 60.0 | 3082 | 57.4 | 3051 | 58.0 | 8 | 2975 | 59.5 | 2895 | 61.2 | 2913 | 60.8 |
471.omnetpp | 8 | 2434 | 20.5 | 2433 | 20.6 | 2437 | 20.5 | 8 | 2189 | 22.8 | 2171 | 23.0 | 2171 | 23.0 |
473.astar | 8 | 2090 | 26.9 | 2082 | 27.0 | 2094 | 26.8 | 8 | 1987 | 28.3 | 1985 | 28.3 | 1990 | 28.2 |
483.xalancbmk | 8 | 1523 | 36.2 | 1526 | 36.2 | 1528 | 36.1 | 8 | 1523 | 36.2 | 1526 | 36.2 | 1528 | 36.1 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
The system bus runs at 800 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Enable This result was measured on the PRIMERGY RX600 S3. The PRIMERGY RX600 S3 and the PRIMERGY TX600 S3 are electronically equivalent. For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
401.bzip2: | -fast |
403.gcc: | basepeak = yes |
429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
445.gobmk: | Same as 429.mcf |
456.hmmer: | Same as 400.perlbench |
458.sjeng: | Same as 429.mcf |
462.libquantum: | Same as 400.perlbench |
464.h264ref: | Same as 429.mcf |
471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
