| CPU2006 license: | 13 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2007 |
| Tested by: | Intel Corporation | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | Quad Core, 1.60 GHz |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2GB Samsung DDR2 4200F, 2 rank, CL4-4-4, ECC) |
| Disk Subsystem: | Seagate, SCSI, 73GB, 10Krpm, 1 disk only |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

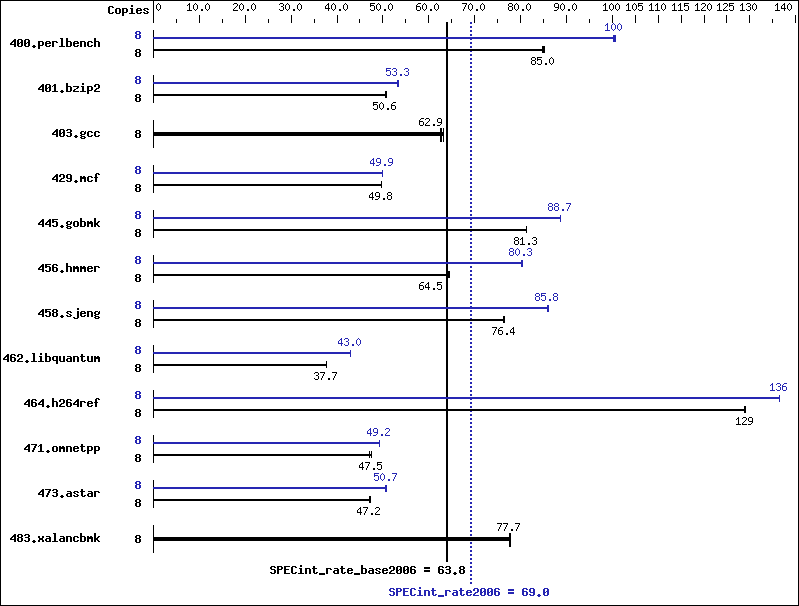

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 922 | 84.7 | 919 | 85.0 | 916 | 85.3 | 8 | 776 | 101 | 779 | 100 | 780 | 100 |
| 401.bzip2 | 8 | 1520 | 50.8 | 1527 | 50.5 | 1525 | 50.6 | 8 | 1448 | 53.3 | 1448 | 53.3 | 1450 | 53.3 |
| 403.gcc | 8 | 1020 | 63.1 | 1031 | 62.5 | 1024 | 62.9 | 8 | 1020 | 63.1 | 1031 | 62.5 | 1024 | 62.9 |
| 429.mcf | 8 | 1467 | 49.7 | 1466 | 49.8 | 1466 | 49.8 | 8 | 1461 | 49.9 | 1463 | 49.9 | 1458 | 50.0 |
| 445.gobmk | 8 | 1032 | 81.3 | 1031 | 81.4 | 1032 | 81.3 | 8 | 945 | 88.8 | 946 | 88.7 | 947 | 88.6 |
| 456.hmmer | 8 | 1159 | 64.4 | 1158 | 64.5 | 1158 | 64.5 | 8 | 928 | 80.4 | 930 | 80.3 | 931 | 80.2 |
| 458.sjeng | 8 | 1267 | 76.4 | 1265 | 76.5 | 1267 | 76.4 | 8 | 1128 | 85.8 | 1128 | 85.8 | 1124 | 86.1 |
| 462.libquantum | 8 | 4401 | 37.7 | 4402 | 37.7 | 4403 | 37.6 | 8 | 3859 | 43.0 | 3857 | 43.0 | 3855 | 43.0 |
| 464.h264ref | 8 | 1373 | 129 | 1371 | 129 | 1374 | 129 | 8 | 1296 | 137 | 1297 | 136 | 1298 | 136 |
| 471.omnetpp | 8 | 1063 | 47.0 | 1052 | 47.5 | 1053 | 47.5 | 8 | 1016 | 49.2 | 1016 | 49.2 | 1017 | 49.2 |
| 473.astar | 8 | 1191 | 47.2 | 1191 | 47.2 | 1190 | 47.2 | 8 | 1108 | 50.7 | 1107 | 50.7 | 1109 | 50.6 |
| 483.xalancbmk | 8 | 710 | 77.8 | 711 | 77.7 | 712 | 77.6 | 8 | 710 | 77.8 | 711 | 77.7 | 712 | 77.6 |
General Notes
Bios settings: Hardware Prefetcher: Disabled Adjacent Sector Prefetch: Disabled ulimit -s unlimited used to set stack size to unlimited taskset command used to assign copies to cores All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
