| CPU2006 license: | 3 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1.60 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB PC2-5300F CL5) |
| Disk Subsystem: | 4x36 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Build , Package ID: l_cc_c_9.1.049 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

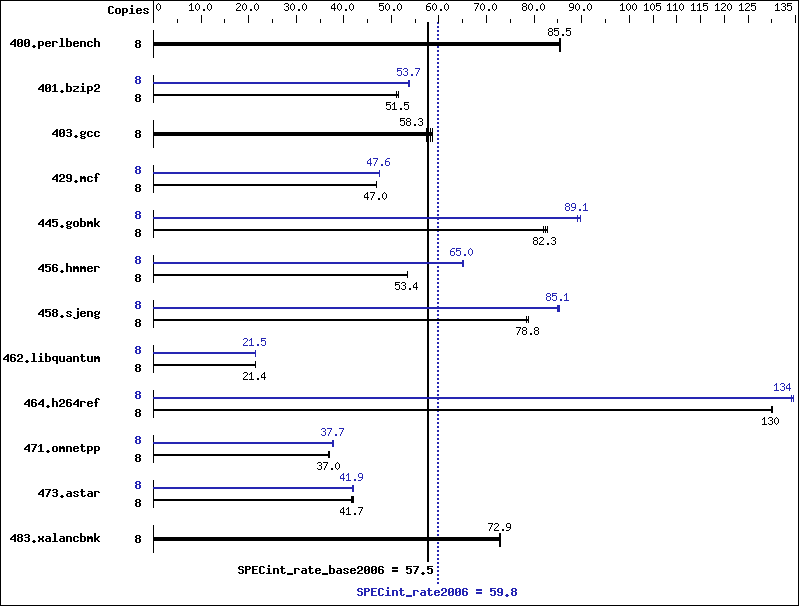

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 915 | 85.4 | 913 | 85.6 | 914 | 85.5 | 8 | 915 | 85.4 | 913 | 85.6 | 914 | 85.5 |
| 401.bzip2 | 8 | 1510 | 51.1 | 1497 | 51.6 | 1500 | 51.5 | 8 | 1440 | 53.6 | 1437 | 53.7 | 1437 | 53.7 |
| 403.gcc | 8 | 1098 | 58.6 | 1104 | 58.3 | 1124 | 57.3 | 8 | 1098 | 58.6 | 1104 | 58.3 | 1124 | 57.3 |
| 429.mcf | 8 | 1553 | 47.0 | 1556 | 46.9 | 1553 | 47.0 | 8 | 1534 | 47.6 | 1535 | 47.5 | 1534 | 47.6 |
| 445.gobmk | 8 | 1012 | 82.9 | 1019 | 82.3 | 1023 | 82.1 | 8 | 936 | 89.7 | 943 | 89.0 | 942 | 89.1 |
| 456.hmmer | 8 | 1398 | 53.4 | 1396 | 53.5 | 1397 | 53.4 | 8 | 1148 | 65.0 | 1147 | 65.1 | 1148 | 65.0 |
| 458.sjeng | 8 | 1229 | 78.8 | 1234 | 78.4 | 1228 | 78.8 | 8 | 1140 | 84.9 | 1137 | 85.1 | 1134 | 85.3 |
| 462.libquantum | 8 | 7718 | 21.5 | 7728 | 21.4 | 7739 | 21.4 | 8 | 7730 | 21.4 | 7723 | 21.5 | 7726 | 21.5 |
| 464.h264ref | 8 | 1362 | 130 | 1360 | 130 | 1363 | 130 | 8 | 1317 | 134 | 1316 | 135 | 1320 | 134 |
| 471.omnetpp | 8 | 1350 | 37.0 | 1352 | 37.0 | 1356 | 36.9 | 8 | 1325 | 37.7 | 1325 | 37.7 | 1325 | 37.7 |
| 473.astar | 8 | 1346 | 41.7 | 1347 | 41.7 | 1337 | 42.0 | 8 | 1337 | 42.0 | 1342 | 41.8 | 1341 | 41.9 |
| 483.xalancbmk | 8 | 758 | 72.8 | 757 | 72.9 | 757 | 72.9 | 8 | 758 | 72.8 | 757 | 72.9 | 757 | 72.9 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch Disabled in BIOS. taskset utility used to bind CPU(s) to processes ulimit -s unlimited set
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xP -O3 -ipo -no-prec-div -L/root/compiler/smartheap/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | basepeak = yes |
| 401.bzip2: | -fast -auto_ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
| 445.gobmk: | Same as 429.mcf |
| 456.hmmer: | Same as 429.mcf |
| 458.sjeng: | Same as 429.mcf |
| 462.libquantum: | Same as 429.mcf |
| 464.h264ref: | Same as 429.mcf |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -fast -auto_ilp32 -L/root/compiler/smartheap/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 -L/root/compiler/smartheap/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
