| CPU2006 license: | 20 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Nov-2006 |
| Tested by: | Bull SAS | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5345 |
| CPU Characteristics: | 2.33 GHz, 8 MB L2, 1333 MHz bus |
| CPU MHz: | 2330 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (2x8 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 3x73 GB SCSI, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build 20070322Z Package ID: W_CC_P_9.1.037 Microsoft Visual Studio .NET 2003 (libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

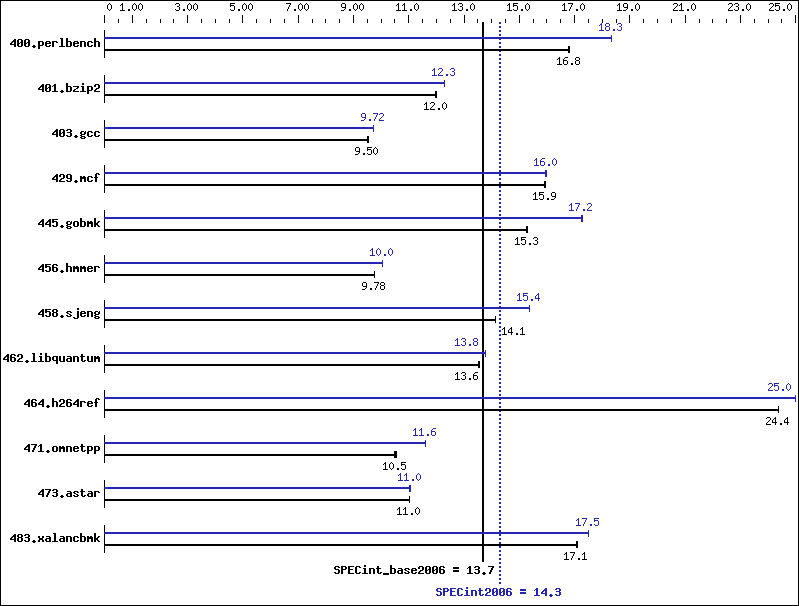

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 581 | 16.8 | 581 | 16.8 | 582 | 16.8 | 533 | 18.3 | 533 | 18.3 | 533 | 18.3 |
| 401.bzip2 | 805 | 12.0 | 805 | 12.0 | 806 | 12.0 | 785 | 12.3 | 785 | 12.3 | 785 | 12.3 |
| 403.gcc | 845 | 9.53 | 847 | 9.50 | 848 | 9.50 | 829 | 9.72 | 828 | 9.72 | 829 | 9.71 |
| 429.mcf | 574 | 15.9 | 572 | 16.0 | 572 | 15.9 | 572 | 16.0 | 571 | 16.0 | 571 | 16.0 |
| 445.gobmk | 686 | 15.3 | 687 | 15.3 | 686 | 15.3 | 608 | 17.2 | 607 | 17.3 | 608 | 17.2 |
| 456.hmmer | 954 | 9.78 | 954 | 9.78 | 954 | 9.78 | 929 | 10.0 | 929 | 10.0 | 929 | 10.0 |
| 458.sjeng | 856 | 14.1 | 856 | 14.1 | 855 | 14.1 | 787 | 15.4 | 787 | 15.4 | 787 | 15.4 |
| 462.libquantum | 1530 | 13.5 | 1528 | 13.6 | 1526 | 13.6 | 1503 | 13.8 | 1503 | 13.8 | 1503 | 13.8 |
| 464.h264ref | 908 | 24.4 | 908 | 24.4 | 908 | 24.4 | 886 | 25.0 | 885 | 25.0 | 885 | 25.0 |
| 471.omnetpp | 597 | 10.5 | 595 | 10.5 | 592 | 10.6 | 539 | 11.6 | 539 | 11.6 | 539 | 11.6 |
| 473.astar | 638 | 11.0 | 637 | 11.0 | 637 | 11.0 | 635 | 11.0 | 636 | 11.0 | 635 | 11.0 |
| 483.xalancbmk | 404 | 17.1 | 404 | 17.1 | 404 | 17.1 | 394 | 17.5 | 394 | 17.5 | 394 | 17.5 |
Operating System Notes
/NUMPROC=1 flag was added to boot.ini to invoke the uniprocessor environment
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
