SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX330 S1, AMD Opteron 2214, 2.20 GHz

CPU2006 license: 22 Test date: Jun-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2007
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

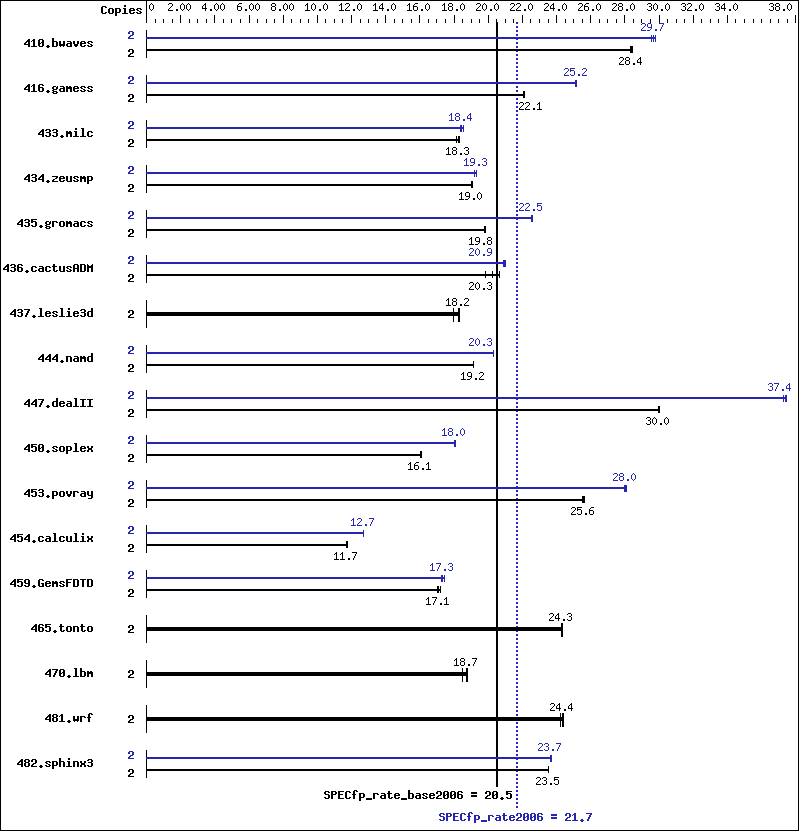

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2214
CPU Characteristics: 2214
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (8x4 GB DDR2 PC2-5300P, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (36GB 15.4 krpm)
Other Hardware: None
Software
Operating System: SLES 10 for AMD64/EM64T
Compiler: QLogic PathScale Compiler Suite,
- Release 3.0
Auto Parallel: No
File System: ReiserFS
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 955 28.5 958 28.4 960 28.3 2 913 29.8 915 29.7 919 29.6
416.gamess 2 1770 22.1 1769 22.1 1772 22.1 2 1556 25.2 1556 25.2 1559 25.1
433.milc 2 1010 18.2 1005 18.3 1002 18.3 2 990 18.6 996 18.4 998 18.4
434.zeusmp 2 958 19.0 957 19.0 955 19.1 2 947 19.2 943 19.3 944 19.3
435.gromacs 2 723 19.8 720 19.8 720 19.8 2 634 22.5 633 22.5 632 22.6
436.cactusADM 2 1204 19.9 1158 20.6 1179 20.3 2 1136 21.0 1144 20.9 1141 20.9
437.leslie3d 2 1030 18.2 1027 18.3 1045 18.0 2 1030 18.2 1027 18.3 1045 18.0
444.namd 2 837 19.2 838 19.1 837 19.2 2 790 20.3 789 20.3 790 20.3
447.dealII 2 764 29.9 763 30.0 762 30.0 2 613 37.3 611 37.5 612 37.4
450.soplex 2 1040 16.0 1038 16.1 1039 16.1 2 923 18.1 925 18.0 927 18.0
453.povray 2 417 25.5 415 25.7 416 25.6 2 379 28.1 380 28.0 380 28.0
454.calculix 2 1403 11.8 1406 11.7 1407 11.7 2 1299 12.7 1299 12.7 1300 12.7
459.GemsFDTD 2 1241 17.1 1244 17.1 1234 17.2 2 1229 17.3 1226 17.3 1217 17.4
465.tonto 2 809 24.3 810 24.3 810 24.3 2 809 24.3 810 24.3 810 24.3
470.lbm 2 1488 18.5 1465 18.8 1466 18.7 2 1488 18.5 1465 18.8 1466 18.7
481.wrf 2 923 24.2 916 24.4 917 24.4 2 923 24.2 916 24.4 917 24.4
482.sphinx3 2 1659 23.5 1658 23.5 1658 23.5 2 1648 23.6 1647 23.7 1645 23.7

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' has been used to bind processes to CPUs

General Notes


 BIOS settings:
 Node Interleave = disabled

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Base Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Fortran benchmarks:

 -IPA:max_jobs=4

Benchmarks using both Fortran and C:

 -IPA:max_jobs=4

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -WOPT:aggstr=0   -m32

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Fortran benchmarks:

 -IPA:max_jobs=4

Benchmarks using both Fortran and C:

 -IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.10.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.10.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Sep 13 11:21:39 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 26 June 2007.
