SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard PDSBA+

CPU2006 license: 001176 Test date: May-2007
Test sponsor: Supermicro Hardware Availability: Apr-2007
Tested by: Supermicro Software Availability: Apr-2007

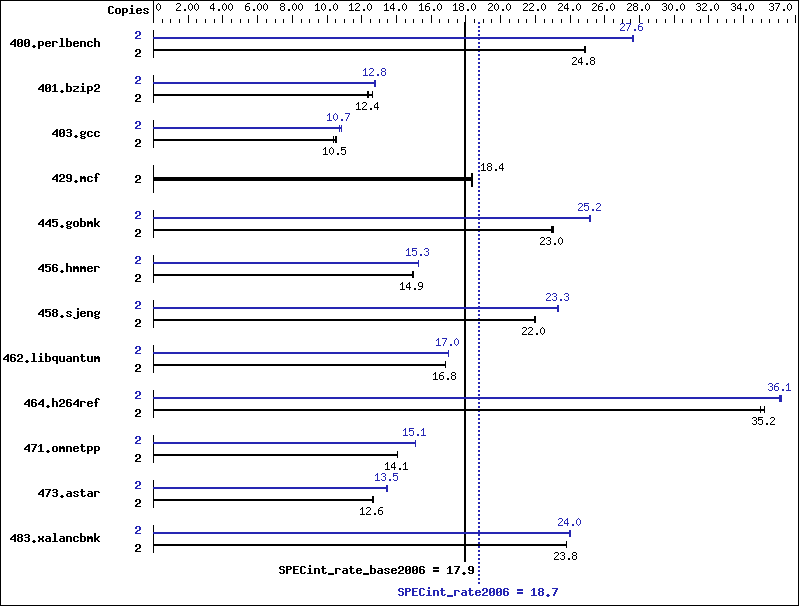

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E4300
CPU Characteristics: 1.8GHz, 800MHz bus
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2X 1GB ECC, CL4, 533MHz, UnBuffer)
Disk Subsystem: 150GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows XP Professional w/ SP2
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20070322Z
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 787 24.8 785 24.9 787 24.8 2 707 27.6 708 27.6 709 27.6
401.bzip2 2 1531 12.6 1564 12.3 1561 12.4 2 1512 12.8 1511 12.8 1513 12.8
403.gcc 2 1537 10.5 1531 10.5 1553 10.4 2 1506 10.7 1506 10.7 1490 10.8
429.mcf 2 993 18.4 996 18.3 994 18.4 2 993 18.4 996 18.3 994 18.4
445.gobmk 2 912 23.0 914 23.0 910 23.1 2 833 25.2 834 25.2 835 25.1
456.hmmer 2 1248 14.9 1248 14.9 1248 15.0 2 1223 15.3 1222 15.3 1223 15.3
458.sjeng 2 1103 21.9 1102 22.0 1099 22.0 2 1036 23.4 1037 23.3 1039 23.3
462.libquantum 2 2464 16.8 2461 16.8 2465 16.8 2 2439 17.0 2439 17.0 2440 17.0
464.h264ref 2 1258 35.2 1258 35.2 1266 35.0 2 1228 36.0 1225 36.1 1223 36.2
471.omnetpp 2 889 14.1 889 14.1 890 14.0 2 827 15.1 827 15.1 827 15.1
473.astar 2 1110 12.6 1110 12.6 1113 12.6 2 1041 13.5 1045 13.4 1041 13.5
483.xalancbmk 2 581 23.8 580 23.8 580 23.8 2 575 24.0 575 24.0 575 24.0

General Notes

 Tested systems can be used with SC733T-645 case,
 To ensure system stability, a 450W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.
 Product description located as of http://www.supermicro.com/products/motherboard/Core2Duo/965/PDSBA+.cfm
 The system bus runs at 800 MHz

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxP   -O2   -Qipo   -Qprec-div-   -Qunroll4   -Ob2   -Qsfalign16   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  Same as 471.omnetpp

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ia32-flags.xml.
