| CPU2006 license: | 001176 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Apr-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo E4300 |
| CPU Characteristics: | 1.8GHz 800MHz bus |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (4 X 512MB, DDR2 667MHz, CL5, ECC) |
| Disk Subsystem: | WD2500YS-01SHB1 250GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional w/ SP2 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

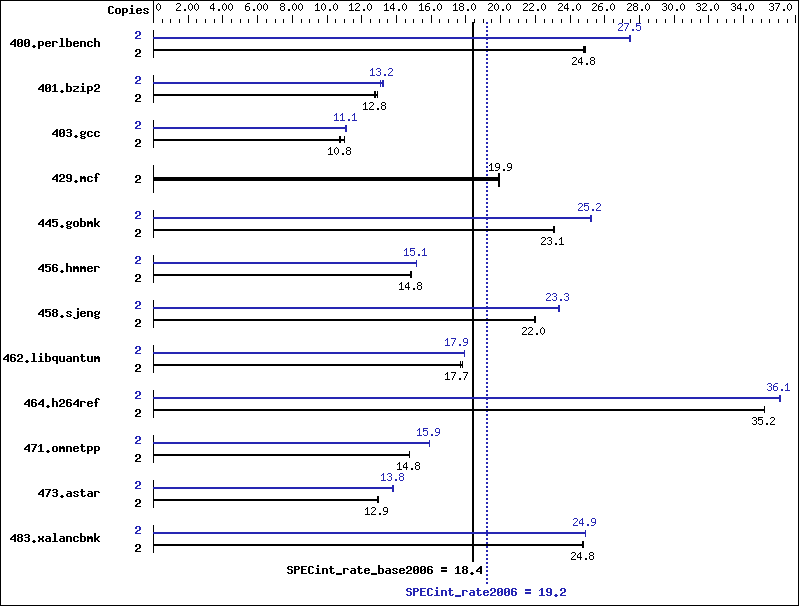

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 790 | 24.7 | 786 | 24.9 | 787 | 24.8 | 2 | 713 | 27.4 | 710 | 27.5 | 710 | 27.5 |
| 401.bzip2 | 2 | 1515 | 12.7 | 1512 | 12.8 | 1494 | 12.9 | 2 | 1461 | 13.2 | 1473 | 13.1 | 1459 | 13.2 |
| 403.gcc | 2 | 1464 | 11.0 | 1498 | 10.8 | 1503 | 10.7 | 2 | 1448 | 11.1 | 1453 | 11.1 | 1446 | 11.1 |
| 429.mcf | 2 | 918 | 19.9 | 916 | 19.9 | 916 | 19.9 | 2 | 918 | 19.9 | 916 | 19.9 | 916 | 19.9 |
| 445.gobmk | 2 | 911 | 23.0 | 908 | 23.1 | 910 | 23.1 | 2 | 831 | 25.2 | 834 | 25.2 | 834 | 25.2 |
| 456.hmmer | 2 | 1259 | 14.8 | 1257 | 14.8 | 1258 | 14.8 | 2 | 1232 | 15.1 | 1233 | 15.1 | 1232 | 15.1 |
| 458.sjeng | 2 | 1102 | 22.0 | 1103 | 21.9 | 1100 | 22.0 | 2 | 1037 | 23.3 | 1036 | 23.3 | 1036 | 23.4 |
| 462.libquantum | 2 | 2330 | 17.8 | 2341 | 17.7 | 2342 | 17.7 | 2 | 2315 | 17.9 | 2316 | 17.9 | 2311 | 17.9 |
| 464.h264ref | 2 | 1257 | 35.2 | 1257 | 35.2 | 1258 | 35.2 | 2 | 1226 | 36.1 | 1227 | 36.1 | 1226 | 36.1 |
| 471.omnetpp | 2 | 846 | 14.8 | 846 | 14.8 | 847 | 14.8 | 2 | 786 | 15.9 | 785 | 15.9 | 786 | 15.9 |
| 473.astar | 2 | 1086 | 12.9 | 1090 | 12.9 | 1086 | 12.9 | 2 | 1016 | 13.8 | 1018 | 13.8 | 1016 | 13.8 |
| 483.xalancbmk | 2 | 557 | 24.8 | 558 | 24.7 | 557 | 24.8 | 2 | 554 | 24.9 | 555 | 24.9 | 555 | 24.9 |
General Notes
Tested systems can be used with CSE-823S-R500LP case, For a general system, a 420W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended to assure system stability]. Product description located as of http://www.supermicro.com/products/motherboard/Xeon3000/3010/PDSM4+.cfm The system bus runs at 800 MHz
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxP -O2 -Qipo -Qprec-div- -Qunroll4 -Ob2 -Qsfalign16 -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | Same as 471.omnetpp |
