SPEC® CINT2006 Result

Fujitsu Limited

PRIMEQUEST 580

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9050
CPU Characteristics:	1.6GHz/24MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	64 cores, 32 chips, 2 cores/chip
CPU(s) orderable:	1-32 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	256 GB (256 x 1GB DDR2-533 DIMMs)
Disk Subsystem:	Fujitsu MAW3147NC (SCSI Ultra 320) x 2 147GB 10,025rpm, No RAID configuration
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux 5 (for Intel Itanium)
Compiler:	Intel C++ Compiler for Itanium/Linux 9.1 (Build 20061105)
Auto Parallel:	No
File System:	ext2
System State:	Single-user
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill Smartheap 8.0

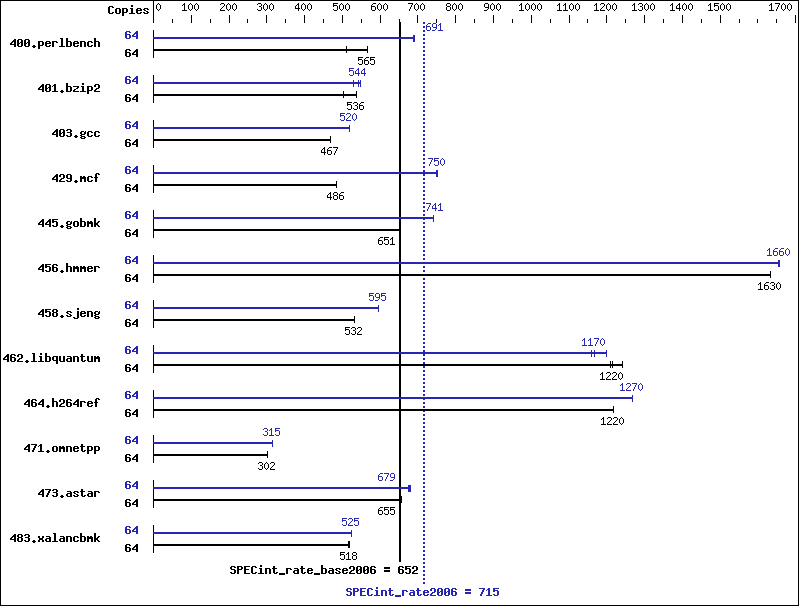

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	64	1106	565	1223	511	1104	566	64	907	689	904	692	905	691
401.bzip2	64	1152	536	1227	503	1148	538	64	1165	530	1136	544	1126	549
403.gcc	64	1102	467	1102	467	1103	467	64	991	520	992	519	991	520
429.mcf	64	1202	486	1202	486	1206	484	64	776	752	778	750	779	749
445.gobmk	64	1031	651	1031	651	1031	651	64	907	740	905	742	906	741
456.hmmer	64	366	1630	366	1630	366	1630	64	361	1660	360	1660	361	1660
458.sjeng	64	1456	532	1455	532	1454	533	64	1301	595	1301	595	1302	595
462.libquantum	64	1096	1210	1067	1240	1091	1220	64	1137	1170	1144	1160	1105	1200
464.h264ref	64	1163	1220	1163	1220	1163	1220	64	1117	1270	1117	1270	1117	1270
471.omnetpp	64	1326	302	1326	302	1327	302	64	1268	315	1270	315	1269	315
473.astar	64	685	655	687	654	685	656	64	666	675	661	679	662	679
483.xalancbmk	64	855	517	853	518	853	518	64	842	525	842	525	841	525


 Processes are bound to CPUs using numactl and taskset.
 limit stacksize unlimited
 Memory system is in "Non Mirror Mode".

icc

icpc

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
471.omnetpp:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX

icc

icpc

Same as Base Portability Flags

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed -mtune=itanium2-p9000 -inline-max-size=550 -inline-min-size=40
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed -auto-ilp32 -ansi-alias
403.gcc:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed -auto-ilp32 -ansi-alias -opt-mem-bandwidth2
429.mcf:	-fast -IPF_fp_relaxed -auto-ilp32 -ansi -inline-max-total-size=5000
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -O2 -IPF_fp_relaxed -static -ipo -auto-ilp32
456.hmmer:	-fast -IPF_fp_relaxed -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF_fp_relaxed
462.libquantum:	-fast -IPF_fp_relaxed -ansi-alias -auto-ilp32 -mtune=itanium2-p9000
464.h264ref:	-fast -IPF_fp_relaxed -inline-max-size=100

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -O2 -IPF_fp_relaxed -static -ipo -inline-max-per-routine=50 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -O2 -static -ipo -inline-max-size=5000 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:	-prof-gen(pass 1) -prof-use(pass 2) -O2 -static -ipo -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580.ipf.linux.flags.xml.
