SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

n4250QE (S4985) AMD Opteron 8222 SE

CPU2006 license: 49 Test date: Mar-2007
Test sponsor: Advanced Micro Devices Hardware Availability: May-2007
Tested by: Advanced Micro Devices Software Availability: Feb-2007

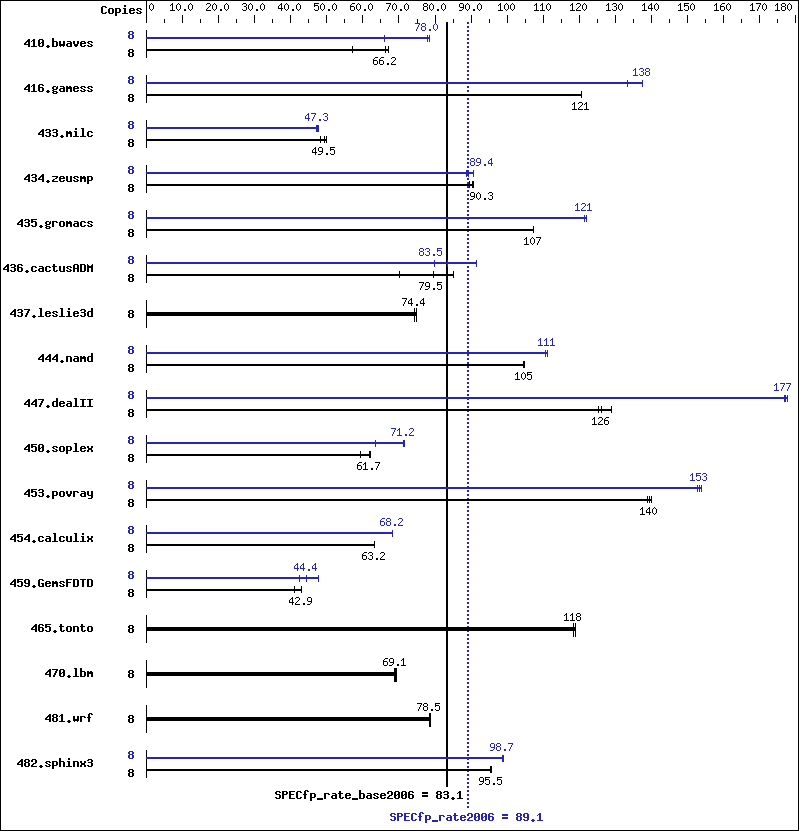

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8222 SE
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (16x1GB, DDR2-667 CL5 ECC Reg Dual Rank)
Disk Subsystem: SATA, 250 GB
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 64-bit kernel
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1905 57.1 1621 67.1 1643 66.2 8 1648 66.0 1394 78.0 1388 78.3
416.gamess 8 1298 121   1298 121   1299 121   8 1138 138   1138 138   1175 133
433.milc 8 1521 48.3 1474 49.8 1485 49.5 8 1558 47.1 1554 47.3 1541 47.7
434.zeusmp 8 814 89.4 806 90.3 804 90.6 8 803 90.7 814 89.4 820 88.7
435.gromacs 8 533 107   533 107   532 107   8 471 121   470 121   469 122
436.cactusADM 8 1361 70.3 1123 85.1 1202 79.5 8 1145 83.5 1199 79.7 1045 91.5
437.leslie3d 8 1004 74.9 1012 74.3 1011 74.4 8 1004 74.9 1012 74.3 1011 74.4
444.namd 8 613 105   612 105   612 105   8 579 111   577 111   578 111
447.dealII 8 710 129   730 125   725 126   8 515 178   517 177   517 177
450.soplex 8 1125 59.3 1081 61.7 1075 62.1 8 1049 63.6 937 71.2 931 71.6
453.povray 8 304 140   306 139   305 140   8 277 154   278 153   278 153
454.calculix 8 1044 63.2 1046 63.1 1045 63.2 8 967 68.3 968 68.2 968 68.2
459.GemsFDTD 8 2062 41.2 1978 42.9 1975 43.0 8 1910 44.4 1998 42.5 1780 47.7
465.tonto 8 664 118   662 119   665 118   8 664 118   662 119   665 118
470.lbm 8 1591 69.1 1589 69.2 1597 68.8 8 1591 69.1 1589 69.2 1597 68.8
481.wrf 8 1136 78.7 1140 78.4 1139 78.5 8 1136 78.7 1140 78.4 1139 78.5
482.sphinx3 8 1632 95.5 1636 95.3 1630 95.6 8 1581 98.6 1577 98.9 1579 98.7

General Notes

 taskset utility used to bind cores to processes
 All memory slots filled on all used CPU sockets

 The tested system can be assembled using an SSI-MEB case and
 a Silverstone Zeus 650 watt ST65ZF ATX 12V Power Supply.

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -WOPT:aggstr=0   -m32

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C++ benchmarks:

447.dealII:  -static

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.xml.
