SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M5000

CPU2006 license: 19 Test date: Apr-2007
Test sponsor: Fujitsu Limited Hardware Availability: May-2007
Tested by: Sun Microsystems Software Availability: Jul-2007

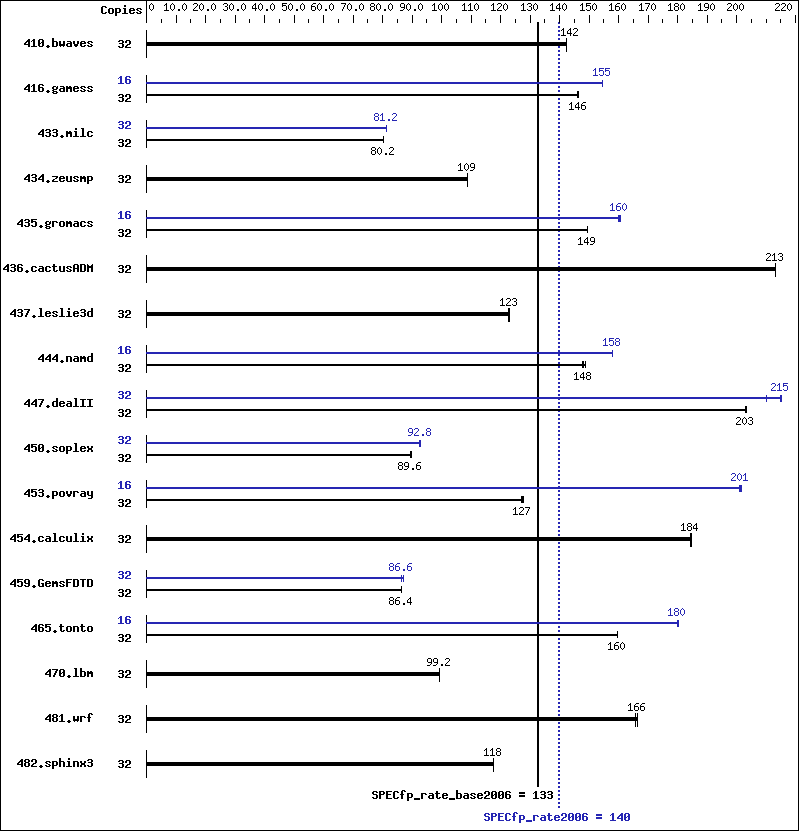

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2150
FPU: Integrated
CPU(s) enabled: 16 cores, 8 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CPUM; each CPUM contains 2 CPU chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (64 x 2 GB)
Disk Subsystem: 73 GB FUJITSU MAY2073RC 10K RPM SAS
Other Hardware: None
Software
Operating System: Solaris 10 7/07 (build s10s_u4wos_04)
Compiler: Sun Studio 12 (build 44.0)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 3056 142   3057 142   3057 142   32 3056 142   3057 142   3057 142
416.gamess 32 4287 146   4281 146   4280 146   16 2026 155   2026 155   2026 155
433.milc 32 3663 80.2 3665 80.2 3665 80.2 32 3616 81.2 3616 81.2 3617 81.2
434.zeusmp 32 2675 109   2676 109   2679 109   32 2675 109   2676 109   2679 109
435.gromacs 32 1530 149   1529 149   1529 149   16 712 161   713 160   714 160
436.cactusADM 32 1795 213   1795 213   1794 213   32 1795 213   1795 213   1794 213
437.leslie3d 32 2446 123   2448 123   2449 123   32 2446 123   2448 123   2449 123
444.namd 32 1726 149   1733 148   1738 148   16 812 158   813 158   813 158
447.dealII 32 1802 203   1800 203   1803 203   32 1743 210   1701 215   1705 215
450.soplex 32 2977 89.6 2978 89.6 2979 89.6 32 2877 92.8 2877 92.8 2880 92.7
453.povray 32 1335 127   1332 128   1341 127   16 423 201   423 201   422 202
454.calculix 32 1430 185   1433 184   1433 184   32 1430 185   1433 184   1433 184
459.GemsFDTD 32 3928 86.4 3928 86.4 3929 86.4 32 3901 87.0 3928 86.4 3922 86.6
465.tonto 32 1973 160   1975 159   1974 160   16 874 180   875 180   873 180
470.lbm 32 4434 99.2 4432 99.2 4431 99.2 32 4434 99.2 4432 99.2 4431 99.2
481.wrf 32 2147 166   2150 166   2157 166   32 2147 166   2150 166   2157 166
482.sphinx3 32 5304 118   5310 117   5302 118   32 5304 118   5310 117   5302 118

Operating System Notes


  Processes were bound to cores using "submit" and "pbind".
  The SPEC toolset was bound to processor 0.

 These shell commands request use of local 4MB pages:
       export LD_PRELOAD=madv.so.1:mpss.so.1
       export MPSSHEAP=4MB
       export MPSSSTACK=4MB
       export MADV=access_lwp
  'access_lwp' means that the next light weight
  process to touch the specified address range
  will access it the most heavily.

  ulimit -s 131072 was used to limit the space
  consumed by the stack (and therefore make more
  space available to the heap).

  The "webconsole" service was turned off using
      svcadm disable webconsole

Platform Notes


"CPUM" = CPU Module; each module holds two CPU chips.

Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured using a Sun SPARC Enterprise
M5000 Server.  Note that the Fujitsu SPARC Enterprise
M5000 and Sun SPARC Enterprise M5000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=compatible

Fortran benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

Base Other Flags

C benchmarks:

 -xjobs=12   -V   -#

C++ benchmarks:

 -xjobs=12   -verbose=diags,version

Fortran benchmarks:

 -xjobs=12   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=12   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std   -fma=fused   -xprefetch=latx:3
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xdepend   -library=stlport4   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xprefetch_level=1   -fma=fused   -xprefetch=latx:3
447.dealII:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused   -xprefetch=latx:4.5
450.soplex:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fsimple=0   -xrestrict   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -fsimple=1   -xprefetch_level=2   -fma=fused   -xprefetch=latx:2
465.tonto:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch=latx:12   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xinline=   -xarch=generic   -xchip=generic   -fsimple=0   -fma=fused
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=12   -V   -#

C++ benchmarks:

 -xjobs=12   -verbose=diags,version

Fortran benchmarks:

 -xjobs=12   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=12   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
