SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M8000

CPU2006 license: 19 Test date: Mar-2007
Test sponsor: Fujitsu Limited Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: Jul-2007

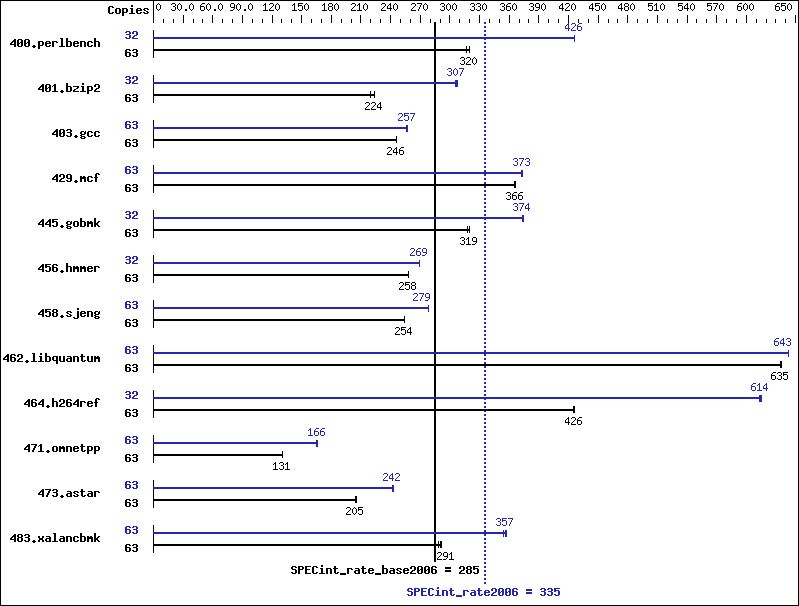

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2280
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (128 x 2 GB)
Disk Subsystem: 400 GB Solaris Volume Manager RAID0
soft partition (see notes for details)
Other Hardware: None
Software
Operating System: Solaris 10 7/07 (build s10s_u4wos_03)
Compiler: Sun Studio 12 (build 44.0)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 63 1945 316 1924 320 1924 320 32 735 426 733 426 733 426
401.bzip2 63 2762 220 2718 224 2717 224 32 1005 307 1011 305 1004 307
403.gcc 63 2059 246 2065 246 2066 246 63 1977 257 1973 257 1971 257
429.mcf 63 1571 366 1569 366 1570 366 63 1539 373 1542 373 1537 374
445.gobmk 63 2078 318 2069 319 2065 320 32 897 374 898 374 899 373
456.hmmer 63 2277 258 2276 258 2275 258 32 1110 269 1110 269 1110 269
458.sjeng 63 3001 254 3004 254 2999 254 63 2736 279 2737 279 2737 279
462.libquantum 63 2055 635 2057 635 2056 635 63 2030 643 2030 643 2031 643
464.h264ref 63 3281 425 3274 426 3269 427 32 1152 615 1154 614 1153 614
471.omnetpp 63 3018 130 3017 131 3017 131 63 2382 165 2367 166 2371 166
473.astar 63 2160 205 2160 205 2155 205 63 1827 242 1825 242 1826 242
483.xalancbmk 63 1506 289 1494 291 1493 291 63 1218 357 1219 357 1226 355

Operating System Notes


Processes were bound to cores using "submit" and "pbind".
The SPEC toolset was bound to processor 0.

These shell commands request use of local 4MB pages:
      export LD_PRELOAD=madv.so.1:mpss.so.1
      export MPSSHEAP=4MB
      export MPSSSTACK=4MB
      export MADV=access_lwp
'access_lwp' means that the next light weight
process to touch the specified address range
will access it the most heavily.

ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=3
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Platform Notes


Disk notes: The SPEC CPU tests use a 400 GB partition
created from 3x Sun StorageTek 6140 stripe sets.  The
partition was created in 3 steps: 1. Each 6140 stripe
set (RAID 0) is based on 8x 146 GB 15,000 RPM Seagate
ST3146954FC FC-AL disks.  2. Solaris views these as 3
logical units (LUNs) which are striped together (RAID
0) to make a 3 TB volume using Solaris Volume Manager
(SVM).  3. Lastly, SVM is then used to create one 400
GB soft partition for use by the CPU2006 output_root.

"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory was 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured using a Sun SPARC Enterprise
M8000 Server.  Note that the Fujitsu SPARC Enterprise
M8000 and Sun SPARC Enterprise M8000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -lbsdmalloc

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -lbsdmalloc

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=std   -Xc   -xipo=2   -xrestrict   -fma=fused   -xprefetch=latx:5   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=strong   -fma=fused   -xprefetch=latx:5
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xarch=v8plusb   -fma=fused   -ll2amm
429.mcf:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -xrestrict   -xalias_level=std   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -xprefetch=latx:5   -lfast
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=std   -xrestrict   -fma=fused
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -fma=fused
458.sjeng:  Same as 456.hmmer
462.libquantum:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:3   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xalias_level=std   -xarch=v8plusb   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -fma=fused   -lfast
473.astar:  -xdepend   -library=stlport4   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:5   -lfast
483.xalancbmk:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:5   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
