SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M8000

SPECint®2006 = 10.7

CPU2006 license: 6 Test date: Mar-2007
Test sponsor: Sun Microsystems Hardware Availability: Apr-2007
Tested by: Fujitsu Limited Software Availability: May-2007

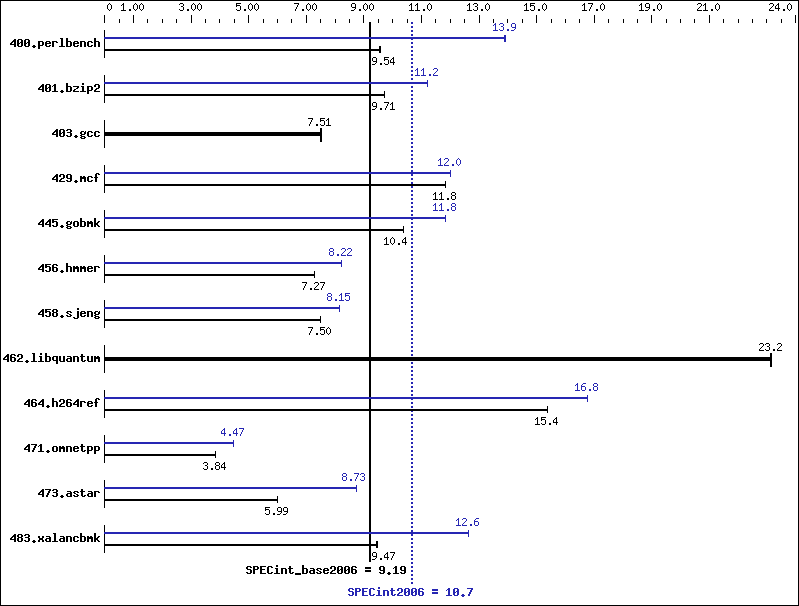

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2280
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 64 GB (64 x 1 GB, see notes for details)
Disk Subsystem: 73 GB 10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 11/06
Compiler: Sun Studio 12 (Early Access)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1019 9.58 1024 9.54 1024 9.54 701 13.9  703 13.9  702 13.9
401.bzip2 994 9.71 994 9.71 994 9.71 861 11.2  861 11.2  861 11.2
403.gcc 1074 7.50 1072 7.51 1069 7.53 1074 7.50 1072 7.51 1069 7.53
429.mcf 770 11.8  770 11.8  770 11.8  759 12.0  759 12.0  759 12.0
445.gobmk 1011 10.4  1011 10.4  1011 10.4  886 11.8  886 11.8  886 11.8
456.hmmer 1283 7.27 1283 7.27 1283 7.27 1135 8.22 1135 8.22 1136 8.22
458.sjeng 1615 7.49 1614 7.50 1614 7.50 1485 8.15 1485 8.15 1485 8.15
462.libquantum 896 23.1  895 23.2  894 23.2  896 23.1  895 23.2  894 23.2
464.h264ref 1439 15.4  1440 15.4  1440 15.4  1319 16.8  1319 16.8  1319 16.8
471.omnetpp 1627 3.84 1627 3.84 1628 3.84 1401 4.46 1399 4.47 1396 4.48
473.astar 1172 5.99 1172 5.99 1172 5.99 804 8.73 803 8.74 804 8.73
483.xalancbmk 728 9.48 729 9.47 731 9.44 546 12.6  545 12.6  546 12.6

Operating System Notes


These shell commands request use of local 4MB pages:
      MPSSHEAP=4MB
      MPSSSTACK=4MB
      MADV=access_lwp
      LD_PRELOAD=mpss.so.1:madv.so.1
  'access_lwp' means that the next light weight
  process to touch the specified address range
  will access it the most heavily.

Stack size set to unlimited via "ulimit -s unlimited"

The run was bound to processor #27 using the "psrset" command
    psrset -c processor id...: creates a set
    psrset -e set_id command:  runs command on a set


 System Tunables:
 (/etc/system parameters)
    maxphys=4194304
       Defines the maximum size of I/O requests, in bytes.
    maxpgio=1024
       Defines the maximum number of page I/O requests that can
       be queued by the paging system.
    tune_t_fsflushr=1
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=60
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory was 8-way interleaved by filling same capacity
DIMMs in every other slot

This result is measured on a Fujitsu SPARC Enterprise
M8000 Server.  Note that the Fujitsu SPARC Enterprise
M8000 and Sun SPARC Enterprise M8000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xprefetch_level=2

Peak Compiler Invocation

C benchmarks:

 /opt/SUNWspro12_EA070303/bin/cc

C++ benchmarks:

 /opt/SUNWspro12_EA070303/bin/CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=2   -xalias_level=std   -xrestrict   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xalias_level=strong
403.gcc:  basepeak = yes
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xprefetch_level=3   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Wc,-fma=fused   -xalias_level=std
458.sjeng:  Same as 445.gobmk
462.libquantum:  basepeak = yes
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused
473.astar:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -xalias_level=compatible   -lfast
483.xalancbmk:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xtarget=sparc64vi   -xcache=128/64/2:6144/256/12   -xarch=sparcfmaf   -fma=fused   -Qoption cg -fma=fused   -lfast

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
