SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M9000

CPU2006 license: 6 Test date: Mar-2007
Test sponsor: Sun Microsystems Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: Jul-2007

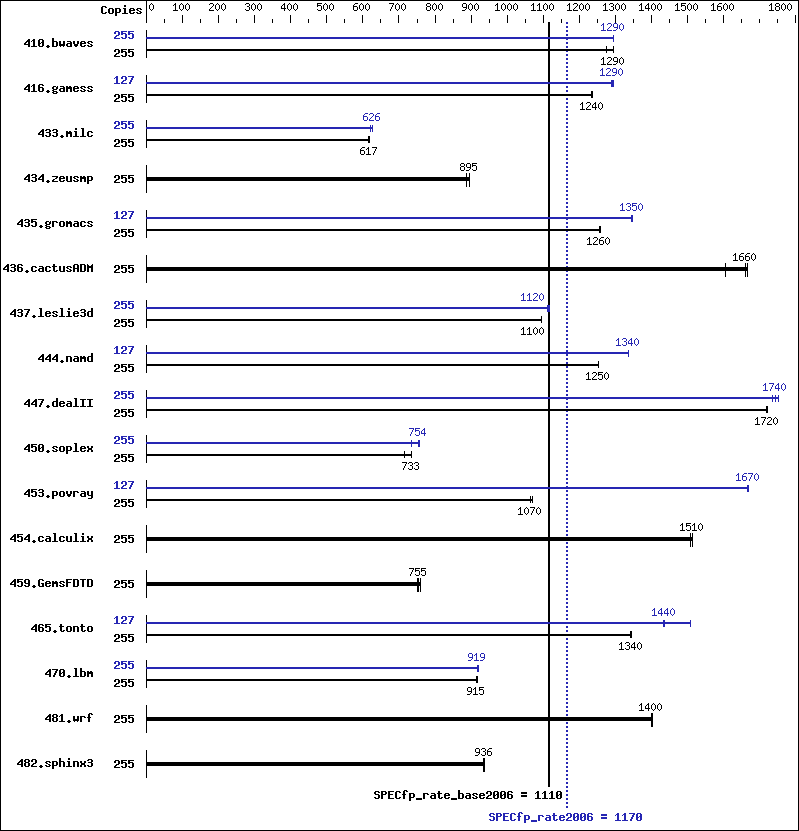

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2280
FPU: Integrated
CPU(s) enabled: 128 cores, 64 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 1 TB (512 x 2 GB)
Disk Subsystem: 673 GB RAID 1+0 created by Solaris
Volume Manager with 20 x 73 GB
10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 7/07 (build s10s_u4wos_04)
Compiler: Sun Studio 12 (Build 44.0)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 255 2717 1280 2676 1290 2676 1290 255 2675 1300 2676 1290 2677 1290
416.gamess 255 4041 1240 4035 1240 4051 1230 127 1928 1290 1922 1290 1923 1290
433.milc 255 3794 617 3795 617 3794 617 255 3737 626 3740 626 3766 622
434.zeusmp 255 2612 888 2592 895 2592 895 255 2612 888 2592 895 2592 895
435.gromacs 255 1450 1260 1447 1260 1450 1260 127 672 1350 672 1350 675 1340
436.cactusADM 255 1900 1600 1835 1660 1828 1670 255 1900 1600 1835 1660 1828 1670
437.leslie3d 255 2188 1100 2186 1100 2188 1100 255 2148 1120 2149 1120 2155 1110
444.namd 255 1631 1250 1631 1250 1632 1250 127 762 1340 763 1340 763 1340
447.dealII 255 1698 1720 1695 1720 1695 1720 255 1664 1750 1680 1740 1673 1740
450.soplex 255 2970 716 2899 733 2897 734 255 2895 735 2820 754 2809 757
453.povray 255 1273 1070 1274 1060 1268 1070 127 406 1670 405 1670 405 1670
454.calculix 255 1395 1510 1389 1510 1390 1510 255 1395 1510 1389 1510 1390 1510
459.GemsFDTD 255 3596 752 3557 761 3584 755 255 3596 752 3557 761 3584 755
465.tonto 255 1868 1340 1869 1340 1867 1340 127 871 1430 829 1510 870 1440
470.lbm 255 3823 916 3835 914 3828 915 255 3802 922 3813 919 3814 919
481.wrf 255 2036 1400 2034 1400 2030 1400 255 2036 1400 2034 1400 2030 1400
482.sphinx3 255 5318 935 5309 936 5309 936 255 5318 935 5309 936 5309 936

Operating System Notes


Processes were bound to cores using "submit" and "pbind".
The SPEC toolset was bound to processor 0.

These shell commands request use of local 4MB pages:
      export LD_PRELOAD=madv.so.1:mpss.so.1
      export MPSSHEAP=4MB
      export MPSSSTACK=4MB
      export MADV=access_lwp
'access_lwp' means that the next light weight
process to touch the specified address range
will access it the most heavily.

ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=3
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured using a Sun SPARC Enterprise
M9000 Server.  Note that the Fujitsu SPARC Enterprise
M9000 and Sun SPARC Enterprise M9000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=compatible

Fortran benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xcache=128/64/2:5120/256/10   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

Base Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

Fortran benchmarks:

 -xjobs=24   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=24   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std   -fma=fused   -xprefetch=latx:3
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xprefetch_level=3   -xipo=2   -xrestrict   -fma=fused   -Wc,-Qlp=1   -Wc,-Qlp-av=512   -Wc,-Qlp-t=1   -Wc,-Qlp-fa=1   -Wc,-Qms_pipe-prefolim=64   -xprefetch=latx:5
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xdepend   -library=stlport4   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xprefetch_level=1   -fma=fused   -xprefetch=latx:3
447.dealII:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused   -xprefetch=latx:4.5
450.soplex:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fsimple=0   -xrestrict   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused

Fortran benchmarks:

410.bwaves:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused   -xprefetch=latx:3
416.gamess:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xprefetch_level=3   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4   -xprefetch=latx:3.5
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xprefetch=latx:12   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xcache=128/64/2:5120/256/10   -xpagesize=4M   -xipo=2   -xinline=   -xarch=generic   -xchip=generic   -fsimple=0   -fma=fused
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

Fortran benchmarks:

 -xjobs=24   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=24   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.
