SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T880 (3.20 GHz, Intel Xeon 7130M)

CPU2006 license: 20 Test date: Mar-2007
Test sponsor: Bull SAS Hardware Availability: Sep-2006
Tested by: Bull SAS Software Availability: Nov-2006

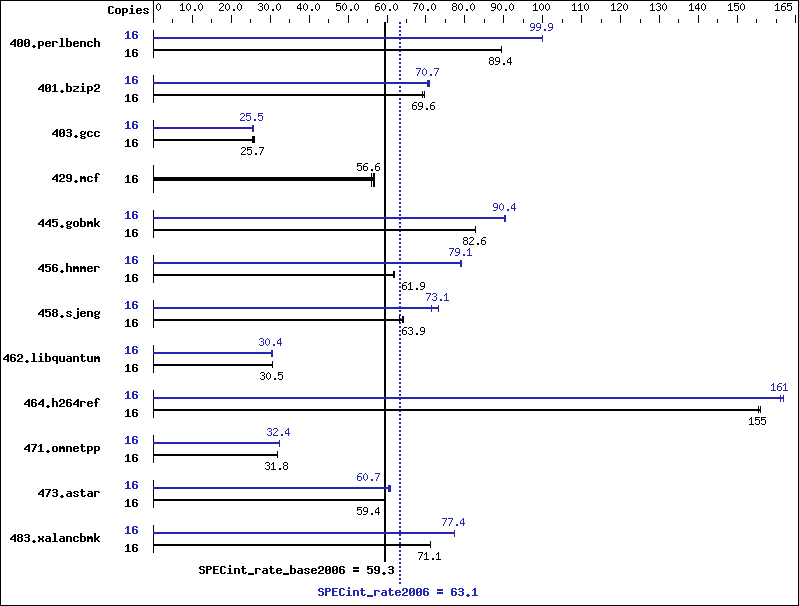

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130M
CPU Characteristics: 3.2GHz, 800MHz bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (667 MHz ECC CL5 DDR2 FB-DIMM)
Disk Subsystem: 2x36GB SAS 15000 rpm
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1 for 32-bit
Build 20061103Z Package ID: W_CC_P_9.1.033
Microsoft Visual Studio .NET 2003 (libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 1748 89.4 1748 89.4 1749 89.4 16 1565 99.9 1565 99.9 1566 99.8
401.bzip2 16 2219 69.6 2218 69.6 2230 69.2 16 2179 70.9 2195 70.3 2183 70.7
403.gcc 16 4972 25.9 5004 25.7 5064 25.4 16 5053 25.5 5089 25.3 5038 25.6
429.mcf 16 2579 56.6 2571 56.8 2603 56.0 16 2579 56.6 2571 56.8 2603 56.0
445.gobmk 16 2032 82.6 2031 82.6 2030 82.7 16 1855 90.5 1856 90.4 1861 90.2
456.hmmer 16 2412 61.9 2411 61.9 2426 61.5 16 1893 78.9 1885 79.2 1887 79.1
458.sjeng 16 3068 63.1 3018 64.2 3032 63.9 16 2707 71.5 2647 73.1 2641 73.3
462.libquantum 16 10883 30.5 10868 30.5 10879 30.5 16 10903 30.4 10896 30.4 10882 30.5
464.h264ref 16 2278 155   2278 155   2271 156   16 2196 161   2187 162   2197 161
471.omnetpp 16 3142 31.8 3141 31.8 3139 31.9 16 3090 32.4 3090 32.4 3090 32.4
473.astar 16 1890 59.4 1888 59.5 1892 59.4 16 1859 60.4 1843 60.9 1850 60.7
483.xalancbmk 16 1553 71.1 1552 71.1 1550 71.2 16 1427 77.4 1428 77.3 1425 77.5

General Notes

 Other Configuration Notes

 The NovaScale T880 and the NovaScale R480 models are
 electronically equivalent.
 The results have been measured on a NovaScale R480 model.






Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
