| CPU2006 license: | 001176 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Jan-2007 |
| Tested by: | Supermicro | Software Availability: | Sep-2006 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2220 SE |
| CPU Characteristics: | 2.8GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 64 GB (16x4GB, ECC REG PC25300 CLS) |
| Disk Subsystem: | 250GB IDE, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE 10.0 (Kernel 2.6.16.21-0.8-smp x86_64) |
| Compiler: | The Portland Group (PGI) PGI pgcc 6.2-4 C Compiler PGI pgCC 6.2-4 C++ Compiler |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

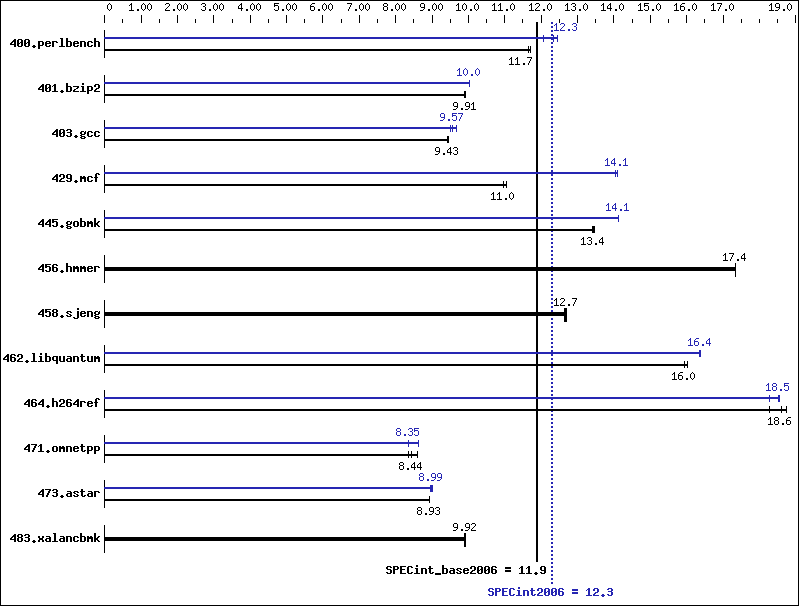

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 839 | 11.6 | 838 | 11.7 | 834 | 11.7 | 793 | 12.3 | 809 | 12.1 | 786 | 12.4 |
| 401.bzip2 | 976 | 9.89 | 972 | 9.92 | 974 | 9.91 | 962 | 10.0 | 962 | 10.0 | 962 | 10.0 |
| 403.gcc | 852 | 9.45 | 854 | 9.42 | 854 | 9.43 | 841 | 9.57 | 833 | 9.66 | 848 | 9.50 |
| 429.mcf | 825 | 11.0 | 832 | 11.0 | 833 | 11.0 | 646 | 14.1 | 646 | 14.1 | 649 | 14.1 |
| 445.gobmk | 781 | 13.4 | 781 | 13.4 | 779 | 13.5 | 743 | 14.1 | 742 | 14.1 | 743 | 14.1 |
| 456.hmmer | 538 | 17.3 | 538 | 17.4 | 538 | 17.4 | 538 | 17.3 | 538 | 17.4 | 538 | 17.4 |
| 458.sjeng | 952 | 12.7 | 955 | 12.7 | 957 | 12.6 | 952 | 12.7 | 955 | 12.7 | 957 | 12.6 |
| 462.libquantum | 1299 | 16.0 | 1292 | 16.0 | 1300 | 15.9 | 1266 | 16.4 | 1266 | 16.4 | 1266 | 16.4 |
| 464.h264ref | 1190 | 18.6 | 1180 | 18.8 | 1210 | 18.3 | 1193 | 18.6 | 1194 | 18.5 | 1211 | 18.3 |
| 471.omnetpp | 740 | 8.44 | 726 | 8.61 | 749 | 8.35 | 749 | 8.35 | 725 | 8.62 | 749 | 8.34 |
| 473.astar | 786 | 8.93 | 785 | 8.94 | 786 | 8.93 | 778 | 9.02 | 781 | 8.99 | 784 | 8.96 |
| 483.xalancbmk | 696 | 9.92 | 698 | 9.88 | 695 | 9.93 | 696 | 9.92 | 698 | 9.88 | 695 | 9.93 |
General Notes
Environment stack size set to 'unlimited' Tested systems can be used with CSE-825S2-560LPV case, To ensure system stability, a 550W (minimum) ATX power supply [ 4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DM8-2.cfm
Base Compiler Invocation
C benchmarks:
| /opt/pgi/624/linux86-64/6.2/bin/pgcc |
C++ benchmarks:
| /opt/pgi/624/linux86-64/6.2/bin/pgCC |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 -DSPEC_CPU_HAVE_BOOL |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fastsse -Mipa=fast -Mipa=inline -Msmartalloc -tp k8-64 |
C++ benchmarks:
| -fastsse -Mipa=fast -Mipa=inline -Msmartalloc -tp k8-32 |
Peak Compiler Invocation
C benchmarks:
| /opt/pgi/624/linux86-64/6.2/bin/pgcc |
C++ benchmarks:
| /opt/pgi/624/linux86-64/6.2/bin/pgCC |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 -DSPEC_CPU_HAVE_BOOL |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc -Mnounroll -tp k8-64 |
| 401.bzip2: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc -tp k8-64 |
| 403.gcc: | Same as 401.bzip2 |
| 429.mcf: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -tp k8-32 |
| 445.gobmk: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc -Msafeptr -tp k8-64 |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | -fastsse -Msafeptr -Mfprelaxed -Msmartalloc -Mprefetch=distance:8 -Mprefetch=nta -Mipa=fast -Mipa=inline -Mipa=nolocalarg -tp k8-64 |
| 464.h264ref: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc -Mvect=noaltcode -tp k8-64 |
C++ benchmarks:
| 471.omnetpp: | -fastsse -Msmartalloc -Mfprelaxed=rsqrt -Mfprelaxed=sqrt -Mfprelaxed=div -Mipa=fast -Mipa=inline -tp k8-32 |
| 473.astar: | -fastsse -Mipa=fast -Mipa=inline -Msmartalloc -tp k8-64 |
| 483.xalancbmk: | basepeak = yes |
