CPU2006 license: | 6 | Test date: | Mar-2007 |
---|---|---|---|
Test sponsor: | Sun Microsystems | Hardware Availability: | Apr-2007 |
Tested by: | Sun Microsystems | Software Availability: | May-2007 |
Hardware | |
---|---|
CPU Name: | UltraSPARC IV+ |
CPU Characteristics: | |
CPU MHz: | 1950 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 12 chips, 2 cores/chip |
CPU(s) orderable: | 4, 8, 12 |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per chip |
L3 Cache: | 32 MB I+D off chip per chip |
Other Cache: | None |
Memory: | 48 GB, 8-way interleaved (48 x 1 GB) |
Disk Subsystem: | System: Sun StorageTek D240 Media Tray (2x73GB) SPEC: Sun StorageTek 6140 (5x146GB 10K FC-AL RAID5) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Solaris 10 11/06 |
Compiler: | Sun Studio 12 (pre-release build 43) |
Auto Parallel: | No |
File System: | ufs |
System State: | Default |
Base Pointers: | 32-bit |
Peak Pointers: | 32-bit |
Other Software: | None |

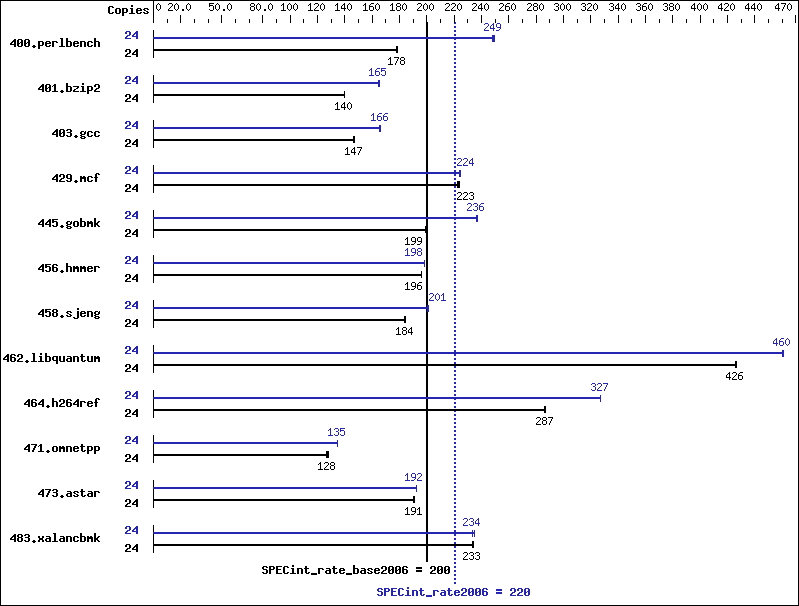

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 1319 | 178 | 1316 | 178 | 1315 | 178 | 24 | 946 | 248 | 941 | 249 | 941 | 249 |
401.bzip2 | 24 | 1653 | 140 | 1653 | 140 | 1655 | 140 | 24 | 1405 | 165 | 1405 | 165 | 1398 | 166 |
403.gcc | 24 | 1312 | 147 | 1314 | 147 | 1318 | 147 | 24 | 1163 | 166 | 1169 | 165 | 1165 | 166 |
429.mcf | 24 | 976 | 224 | 981 | 223 | 984 | 222 | 24 | 973 | 225 | 976 | 224 | 978 | 224 |
445.gobmk | 24 | 1262 | 199 | 1264 | 199 | 1262 | 200 | 24 | 1063 | 237 | 1065 | 236 | 1066 | 236 |
456.hmmer | 24 | 1142 | 196 | 1143 | 196 | 1143 | 196 | 24 | 1129 | 198 | 1130 | 198 | 1130 | 198 |
458.sjeng | 24 | 1579 | 184 | 1578 | 184 | 1578 | 184 | 24 | 1442 | 201 | 1441 | 201 | 1446 | 201 |
462.libquantum | 24 | 1168 | 426 | 1168 | 426 | 1166 | 426 | 24 | 1080 | 460 | 1079 | 461 | 1081 | 460 |
464.h264ref | 24 | 1855 | 286 | 1852 | 287 | 1852 | 287 | 24 | 1624 | 327 | 1623 | 327 | 1623 | 327 |
471.omnetpp | 24 | 1183 | 127 | 1172 | 128 | 1175 | 128 | 24 | 1114 | 135 | 1115 | 135 | 1113 | 135 |
473.astar | 24 | 882 | 191 | 884 | 191 | 883 | 191 | 24 | 875 | 192 | 874 | 193 | 877 | 192 |
483.xalancbmk | 24 | 710 | 233 | 708 | 234 | 710 | 233 | 24 | 709 | 234 | 709 | 233 | 706 | 235 |
Processes were bound to cores using "submit" and "pbind" except for peak runs of 403.gcc, 456.hmmer, and 483.xa "ulimit -s unlimited" Allows stack to grow until system limit. /etc/system parameters tune_t_fsflushr=3 Controls how many seconds elapse between runs of the page flush daemon, fsflush. autoup=900 Causes pages older than the listed number of seconds to be written by fsflush.
/export/ptmp/keeper/build43.0/SUNWspro/bin/cc |
/export/ptmp/keeper/build43.0/SUNWspro/bin/CC |
400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
403.gcc: | -DSPEC_CPU_SOLARIS |
462.libquantum: | -DSPEC_CPU_SOLARIS |
483.xalancbmk: | -DSPEC_CPU_SOLARIS |
-fast -xipo=2 -xpagesize=4M -xprefetch_level=2 -xalias_level=std |
-library=stlport4 -xdepend -fast -xipo=2 -xpagesize=4M -xprefetch_level=1 -xalias_level=compatible -lfast |
/export/ptmp/keeper/build43.0/SUNWspro/bin/cc |
/export/ptmp/keeper/build43.0/SUNWspro/bin/CC |
400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
403.gcc: | -DSPEC_CPU_SOLARIS |
462.libquantum: | -DSPEC_CPU_SOLARIS |
483.xalancbmk: | -DSPEC_CPU_SOLARIS |
