SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R480 (3.40 GHz, Intel Xeon 7140M)

CPU2006 license: 3 Test date: Mar-2007
Test sponsor: Bull SAS Hardware Availability: Sep-2006
Tested by: Bull SAS Software Availability: Nov-2006

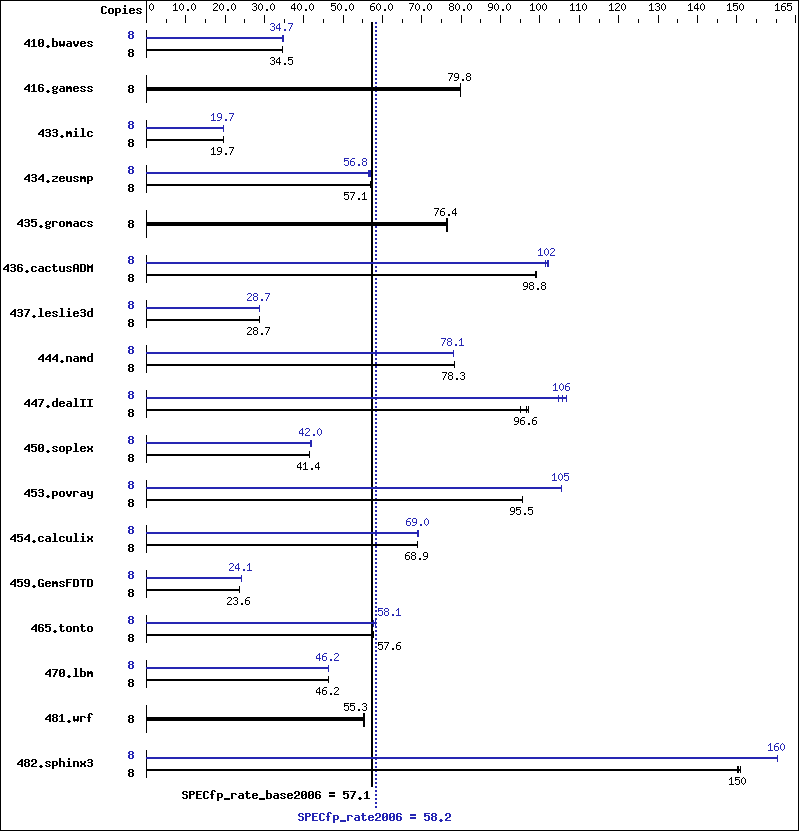

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 3.4GHz, 800MHz bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (16X1GB 1Rx4 PC2-3200R-333 400MHz DDR2)
Disk Subsystem: 2x36GB SAS 15000 rpm
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1 for 32-bit
Build 20061103Z Package ID: W_CC_C_9.1.033
Intel Fortran Compiler 9.1 for 32-bit
Build 20061103Z Package ID: W_FC_C_9.1.033
Microsoft Visual Studio .NET 2003 (libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3147 34.5 3150 34.5 3139 34.6 8 3129 34.7 3143 34.6 3137 34.7
416.gamess 8 1965 79.7 1964 79.8 1964 79.8 8 1965 79.7 1964 79.8 1964 79.8
433.milc 8 3734 19.7 3732 19.7 3732 19.7 8 3736 19.7 3736 19.7 3739 19.6
434.zeusmp 8 1275 57.1 1265 57.5 1278 57.0 8 1282 56.8 1291 56.4 1282 56.8
435.gromacs 8 748 76.3 748 76.4 748 76.4 8 748 76.3 748 76.4 748 76.4
436.cactusADM 8 968 98.8 965 99.1 967 98.8 8 942 101   935 102   939 102
437.leslie3d 8 2622 28.7 2623 28.7 2622 28.7 8 2619 28.7 2623 28.7 2626 28.6
444.namd 8 820 78.3 820 78.3 820 78.3 8 821 78.1 821 78.1 821 78.1
447.dealII 8 963 95.0 943 97.0 947 96.6 8 865 106   873 105   857 107
450.soplex 8 1613 41.4 1611 41.4 1609 41.5 8 1589 42.0 1596 41.8 1587 42.0
453.povray 8 446 95.4 446 95.5 446 95.5 8 404 105   403 105   403 105
454.calculix 8 957 69.0 959 68.8 958 68.9 8 957 69.0 956 69.0 956 69.0
459.GemsFDTD 8 3591 23.6 3590 23.6 3587 23.7 8 3519 24.1 3520 24.1 3525 24.1
465.tonto 8 1366 57.6 1364 57.7 1370 57.5 8 1354 58.1 1354 58.1 1362 57.8
470.lbm 8 2379 46.2 2378 46.2 2377 46.2 8 2378 46.2 2378 46.2 2379 46.2
481.wrf 8 1620 55.2 1616 55.3 1612 55.4 8 1620 55.2 1616 55.3 1612 55.4
482.sphinx3 8 1033 151   1036 150   1038 150   8 972 160   972 160   972 160

General Notes

 Other Configuration Notes

 The NovaScale T880 and the NovaScale R480 models are
 electronically equivalent.
 The results have been measured on a NovaScale R480 model.






Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
454.calculix:  Same as 436.cactusADM
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
