SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL460c
(1.86 GHz, Intel Xeon processor E5320)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

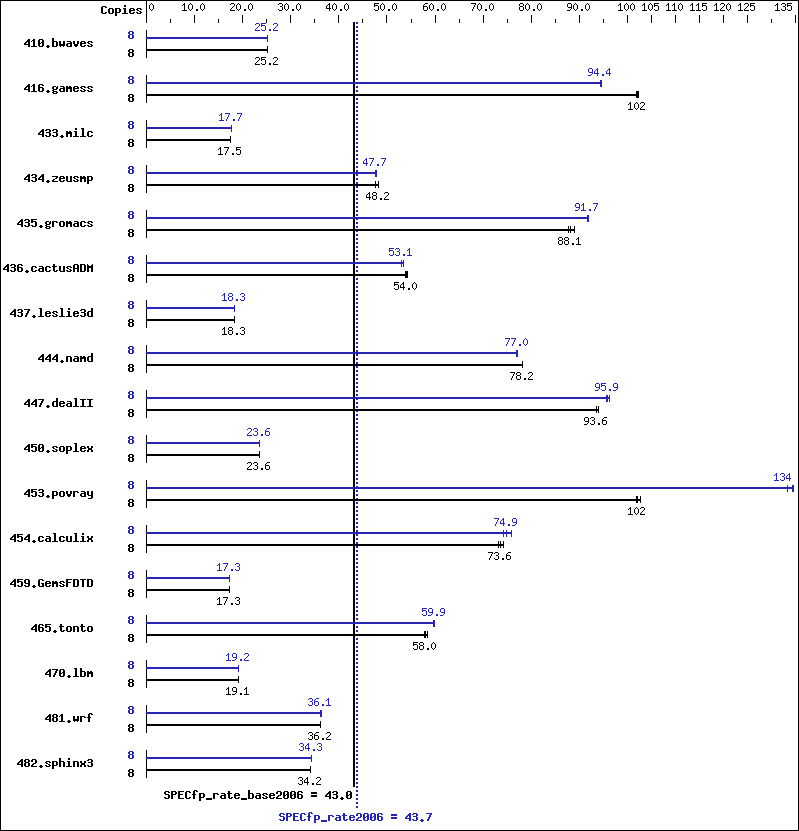

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4318 25.2 4314 25.2 4314 25.2 8 4312 25.2 4314 25.2 4310 25.2
416.gamess 8 1537 102   1533 102   1532 102   8 1657 94.5 1659 94.4 1659 94.4
433.milc 8 4186 17.5 4191 17.5 4187 17.5 8 4145 17.7 4145 17.7 4149 17.7
434.zeusmp 8 1532 47.5 1509 48.2 1508 48.3 8 1527 47.7 1529 47.6 1523 47.8
435.gromacs 8 649 88.1 642 89.0 651 87.7 8 623 91.7 623 91.7 622 91.9
436.cactusADM 8 1761 54.3 1776 53.8 1770 54.0 8 1802 53.0 1791 53.4 1801 53.1
437.leslie3d 8 4097 18.4 4110 18.3 4100 18.3 8 4110 18.3 4092 18.4 4106 18.3
444.namd 8 820 78.2 820 78.2 820 78.2 8 833 77.0 831 77.2 833 77.0
447.dealII 8 977 93.6 978 93.5 973 94.0 8 954 95.9 950 96.3 956 95.7
450.soplex 8 2831 23.6 2830 23.6 2827 23.6 8 2831 23.6 2836 23.5 2833 23.6
453.povray 8 417 102   415 103   417 102   8 317 134   316 134   319 133
454.calculix 8 890 74.1 897 73.6 902 73.2 8 882 74.9 871 75.8 889 74.3
459.GemsFDTD 8 4914 17.3 4910 17.3 4910 17.3 8 4916 17.3 4917 17.3 4916 17.3
465.tonto 8 1349 58.4 1364 57.7 1358 58.0 8 1320 59.7 1314 59.9 1314 59.9
470.lbm 8 5758 19.1 5739 19.2 5744 19.1 8 5741 19.1 5739 19.2 5738 19.2
481.wrf 8 2473 36.1 2469 36.2 2467 36.2 8 2459 36.3 2476 36.1 2474 36.1
482.sphinx3 8 4566 34.1 4559 34.2 4565 34.2 8 4546 34.3 4538 34.4 4541 34.3

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
