| CPU2006 license: | 20 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 2.00 GHz, 8MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

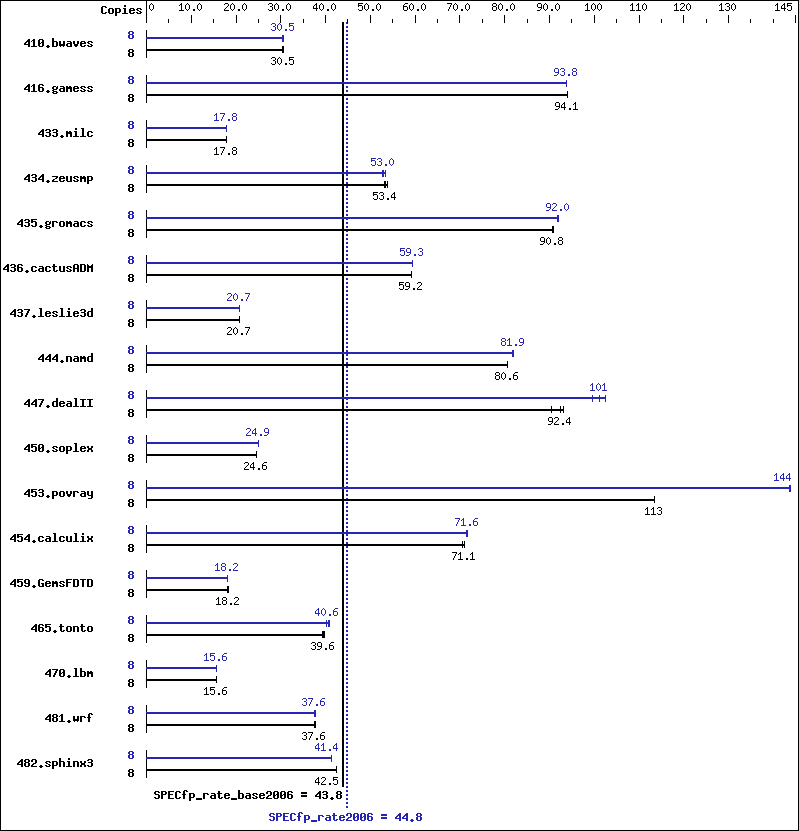

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3568 | 30.5 | 3565 | 30.5 | 3565 | 30.5 | 8 | 3560 | 30.5 | 3567 | 30.5 | 3563 | 30.5 |
| 416.gamess | 8 | 1665 | 94.1 | 1665 | 94.1 | 1665 | 94.1 | 8 | 1670 | 93.8 | 1670 | 93.8 | 1669 | 93.8 |
| 433.milc | 8 | 4122 | 17.8 | 4123 | 17.8 | 4125 | 17.8 | 8 | 4116 | 17.8 | 4119 | 17.8 | 4117 | 17.8 |
| 434.zeusmp | 8 | 1363 | 53.4 | 1371 | 53.1 | 1354 | 53.8 | 8 | 1364 | 53.4 | 1375 | 53.0 | 1381 | 52.7 |
| 435.gromacs | 8 | 629 | 90.8 | 628 | 90.9 | 630 | 90.7 | 8 | 621 | 92.0 | 621 | 92.0 | 622 | 91.9 |
| 436.cactusADM | 8 | 1616 | 59.2 | 1615 | 59.2 | 1615 | 59.2 | 8 | 1611 | 59.3 | 1611 | 59.3 | 1611 | 59.4 |
| 437.leslie3d | 8 | 3637 | 20.7 | 3639 | 20.7 | 3631 | 20.7 | 8 | 3638 | 20.7 | 3639 | 20.7 | 3633 | 20.7 |
| 444.namd | 8 | 796 | 80.6 | 796 | 80.7 | 797 | 80.5 | 8 | 784 | 81.9 | 783 | 81.9 | 784 | 81.8 |
| 447.dealII | 8 | 1013 | 90.4 | 983 | 93.1 | 991 | 92.4 | 8 | 892 | 103 | 919 | 99.6 | 904 | 101 |
| 450.soplex | 8 | 2710 | 24.6 | 2718 | 24.6 | 2715 | 24.6 | 8 | 2675 | 24.9 | 2676 | 24.9 | 2658 | 25.1 |
| 453.povray | 8 | 375 | 113 | 375 | 114 | 375 | 113 | 8 | 296 | 144 | 296 | 144 | 296 | 144 |
| 454.calculix | 8 | 929 | 71.1 | 928 | 71.1 | 935 | 70.6 | 8 | 922 | 71.6 | 921 | 71.6 | 922 | 71.6 |
| 459.GemsFDTD | 8 | 4664 | 18.2 | 4653 | 18.2 | 4658 | 18.2 | 8 | 4671 | 18.2 | 4669 | 18.2 | 4668 | 18.2 |
| 465.tonto | 8 | 1982 | 39.7 | 2006 | 39.2 | 1988 | 39.6 | 8 | 1929 | 40.8 | 1941 | 40.6 | 1955 | 40.3 |
| 470.lbm | 8 | 7049 | 15.6 | 7050 | 15.6 | 7056 | 15.6 | 8 | 7057 | 15.6 | 7056 | 15.6 | 7060 | 15.6 |
| 481.wrf | 8 | 2379 | 37.6 | 2379 | 37.6 | 2365 | 37.8 | 8 | 2372 | 37.7 | 2382 | 37.5 | 2379 | 37.6 |
| 482.sphinx3 | 8 | 3672 | 42.5 | 3670 | 42.5 | 3671 | 42.5 | 8 | 3770 | 41.4 | 3767 | 41.4 | 3770 | 41.4 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
