SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec MX201 (Intel Xeon E5320)

CPU2006 license: 9001 Test date: Feb-2007
Test sponsor: Itautec Hardware Availability: Feb-2007
Tested by: Itautec Software Availability: May-2006

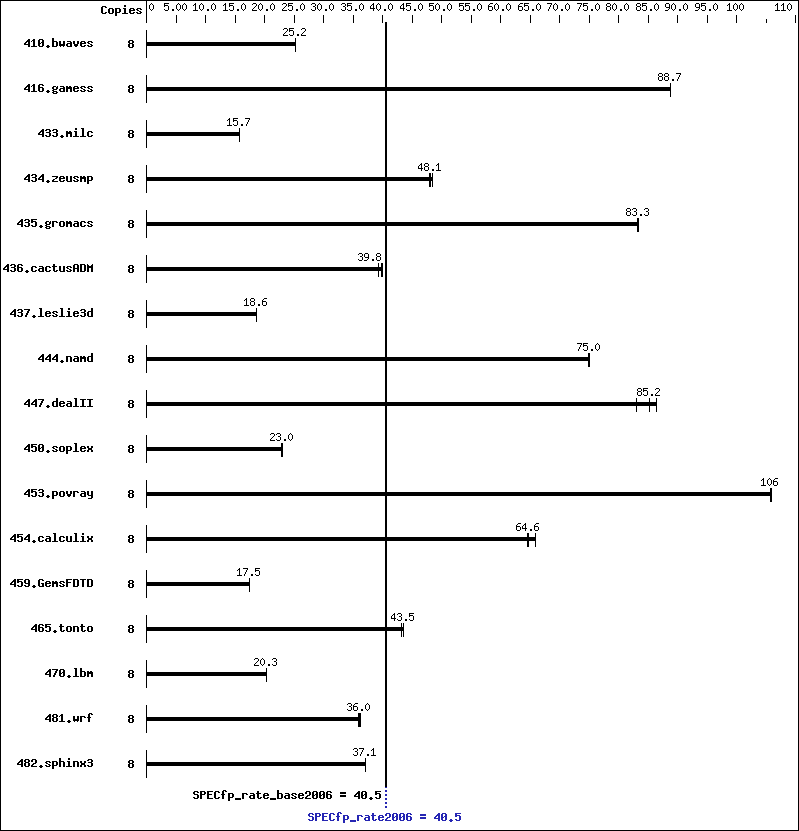

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1066MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1GB DDR2-RAM PC2-5300F CAS 5-5-5)
Disk Subsystem: 73 GB SCSI, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition + SP1
(32-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.025 Build no 20060519Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.025 Build no 20060519Z
Microsoft Visual Studio .NET 2003 7.1.3088 (for
libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Microquill SmartHeap Library v.8.0 for SMP

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4310 25.2 4303 25.3 4306 25.2 8 4310 25.2 4303 25.3 4306 25.2
416.gamess 8 1766 88.7 1765 88.7 1765 88.7 8 1766 88.7 1765 88.7 1765 88.7
433.milc 8 4665 15.7 4676 15.7 4667 15.7 8 4665 15.7 4676 15.7 4667 15.7
434.zeusmp 8 1517 48.0 1512 48.1 1503 48.4 8 1517 48.0 1512 48.1 1503 48.4
435.gromacs 8 686 83.3 687 83.2 686 83.3 8 686 83.3 687 83.2 686 83.3
436.cactusADM 8 2403 39.8 2391 40.0 2430 39.3 8 2403 39.8 2391 40.0 2430 39.3
437.leslie3d 8 4038 18.6 4040 18.6 4042 18.6 8 4038 18.6 4040 18.6 4042 18.6
444.namd 8 856 75.0 856 75.0 856 75.0 8 856 75.0 856 75.0 856 75.0
447.dealII 8 1058 86.5 1102 83.1 1074 85.2 8 1058 86.5 1102 83.1 1074 85.2
450.soplex 8 2913 22.9 2905 23.0 2896 23.0 8 2913 22.9 2905 23.0 2896 23.0
453.povray 8 403 106   403 106   402 106   8 403 106   403 106   402 106
454.calculix 8 1021 64.6 1021 64.6 1002 65.8 8 1021 64.6 1021 64.6 1002 65.8
459.GemsFDTD 8 4865 17.4 4861 17.5 4858 17.5 8 4865 17.4 4861 17.5 4858 17.5
465.tonto 8 1810 43.5 1807 43.6 1824 43.2 8 1810 43.5 1807 43.6 1824 43.2
470.lbm 8 5410 20.3 5414 20.3 5414 20.3 8 5410 20.3 5414 20.3 5414 20.3
481.wrf 8 2488 35.9 2479 36.0 2464 36.3 8 2488 35.9 2479 36.0 2464 36.3
482.sphinx3 8 4203 37.1 4207 37.1 4207 37.1 8 4203 37.1 4207 37.1 4207 37.1

General Notes

 This result was measured on the Servidor Itautec MX221.
 The Servidor Itautec MX221 and the Servidor Itautec MX201
 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic91-flags.20090714.xml.
