| CPU2006 license: | 9001 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Feb-2007 |
| Tested by: | Itautec | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 6 GB (6x1GB DDR2-RAM PC2-5300F CAS 5-5-5) |
| Disk Subsystem: | 120 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition + SP1 (32-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.025 Build no 20060519Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.025 Build no 20060519Z Microsoft Visual Studio .NET 2003 7.1.3088 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Microquill SmartHeap Library v.8.0 for SMP |

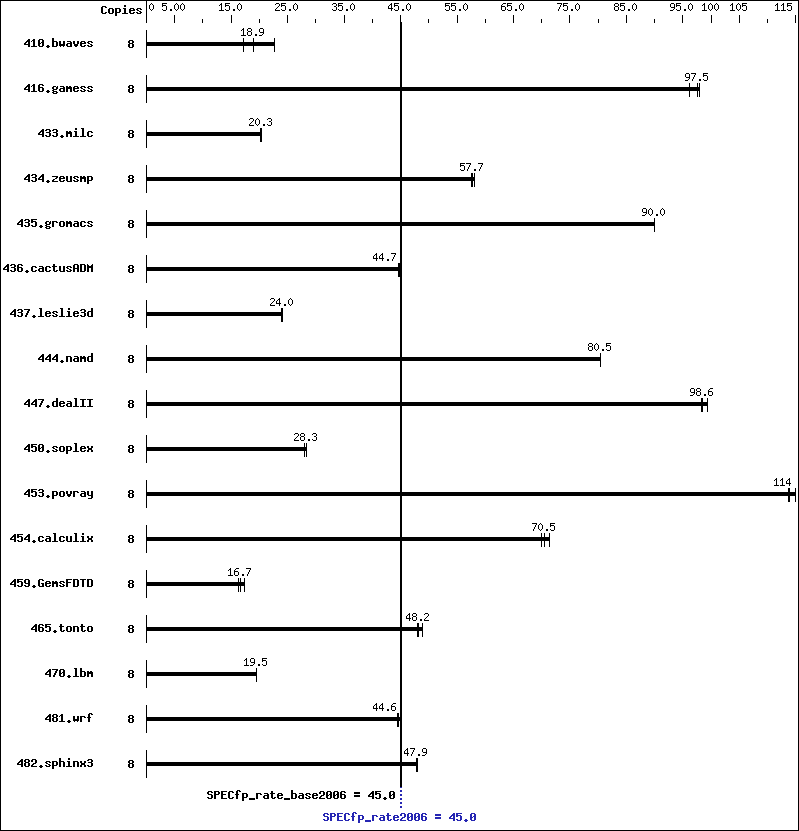

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 5755 | 18.9 | 6357 | 17.1 | 4796 | 22.7 | 8 | 5755 | 18.9 | 6357 | 17.1 | 4796 | 22.7 |
| 416.gamess | 8 | 1606 | 97.5 | 1600 | 97.9 | 1628 | 96.2 | 8 | 1606 | 97.5 | 1600 | 97.9 | 1628 | 96.2 |
| 433.milc | 8 | 3628 | 20.2 | 3621 | 20.3 | 3621 | 20.3 | 8 | 3628 | 20.2 | 3621 | 20.3 | 3621 | 20.3 |
| 434.zeusmp | 8 | 1261 | 57.7 | 1266 | 57.5 | 1253 | 58.1 | 8 | 1261 | 57.7 | 1266 | 57.5 | 1253 | 58.1 |
| 435.gromacs | 8 | 635 | 89.9 | 635 | 90.0 | 635 | 90.0 | 8 | 635 | 89.9 | 635 | 90.0 | 635 | 90.0 |
| 436.cactusADM | 8 | 2138 | 44.7 | 2137 | 44.7 | 2131 | 44.9 | 8 | 2138 | 44.7 | 2137 | 44.7 | 2131 | 44.9 |
| 437.leslie3d | 8 | 3132 | 24.0 | 3143 | 23.9 | 3133 | 24.0 | 8 | 3132 | 24.0 | 3143 | 23.9 | 3133 | 24.0 |
| 444.namd | 8 | 797 | 80.5 | 797 | 80.5 | 798 | 80.4 | 8 | 797 | 80.5 | 797 | 80.5 | 798 | 80.4 |
| 447.dealII | 8 | 921 | 99.3 | 929 | 98.6 | 932 | 98.2 | 8 | 921 | 99.3 | 929 | 98.6 | 932 | 98.2 |
| 450.soplex | 8 | 2355 | 28.3 | 2383 | 28.0 | 2352 | 28.4 | 8 | 2355 | 28.3 | 2383 | 28.0 | 2352 | 28.4 |
| 453.povray | 8 | 374 | 114 | 374 | 114 | 370 | 115 | 8 | 374 | 114 | 374 | 114 | 370 | 115 |
| 454.calculix | 8 | 943 | 70.0 | 925 | 71.3 | 936 | 70.5 | 8 | 943 | 70.0 | 925 | 71.3 | 936 | 70.5 |
| 459.GemsFDTD | 8 | 5230 | 16.2 | 4891 | 17.4 | 5093 | 16.7 | 8 | 5230 | 16.2 | 4891 | 17.4 | 5093 | 16.7 |
| 465.tonto | 8 | 1639 | 48.0 | 1610 | 48.9 | 1632 | 48.2 | 8 | 1639 | 48.0 | 1610 | 48.9 | 1632 | 48.2 |
| 470.lbm | 8 | 5646 | 19.5 | 5645 | 19.5 | 5648 | 19.5 | 8 | 5646 | 19.5 | 5645 | 19.5 | 5648 | 19.5 |
| 481.wrf | 8 | 2007 | 44.5 | 2005 | 44.6 | 1981 | 45.1 | 8 | 2007 | 44.5 | 2005 | 44.6 | 1981 | 45.1 |
| 482.sphinx3 | 8 | 3257 | 47.9 | 3257 | 47.9 | 3251 | 48.0 | 8 | 3257 | 47.9 | 3257 | 47.9 | 3251 | 48.0 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | basepeak = yes |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
